ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

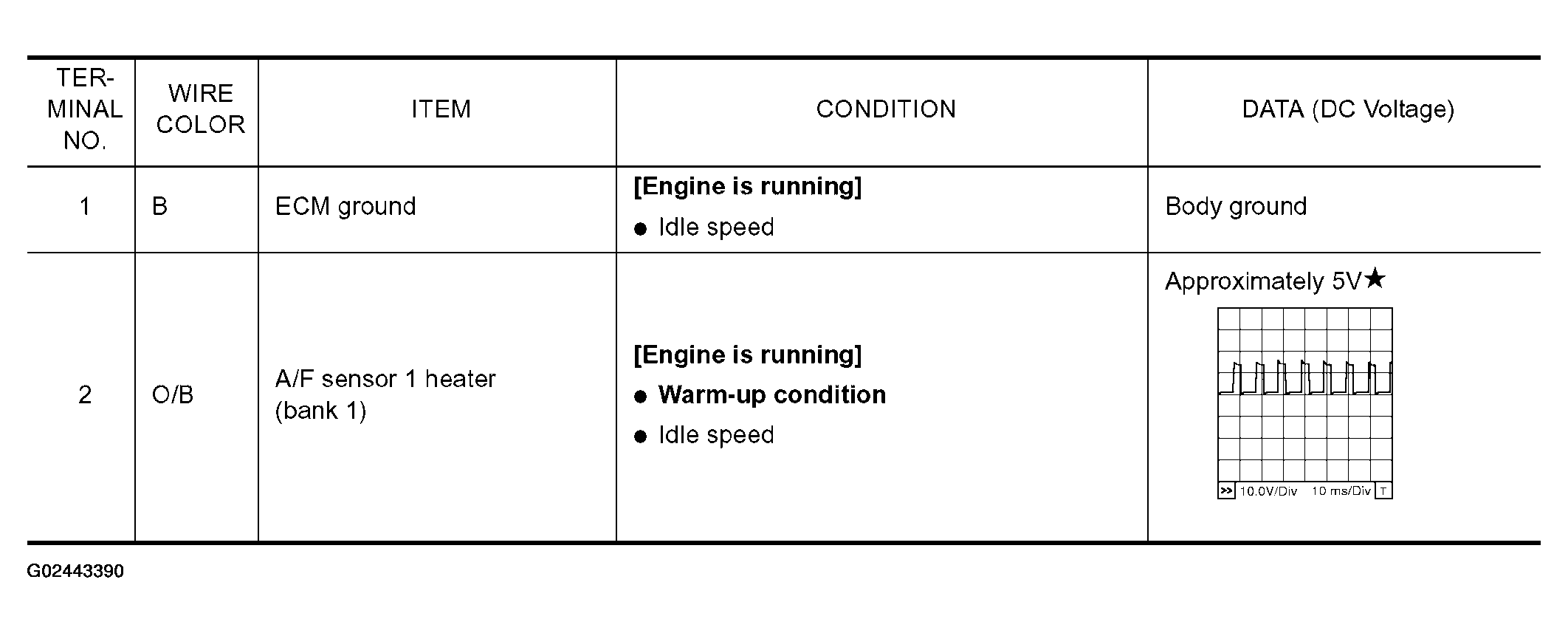

Fig 1: ECM Connector Terminal Voltage Specification Chart (1 Of 8)

G02443390

Courtesy of NISSAN MOTOR CO., U.S.A.

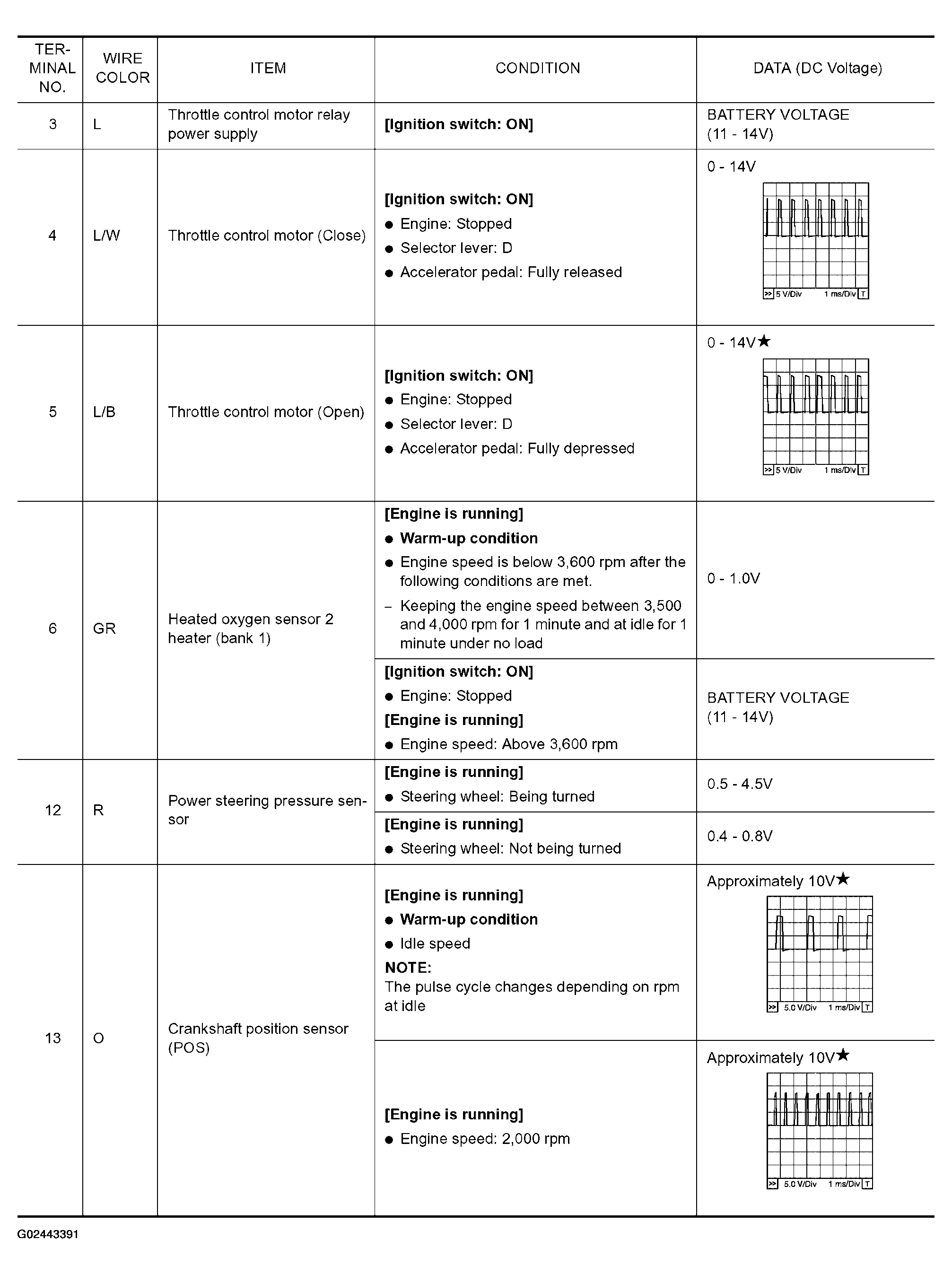

Fig 2: ECM Connector Terminal Voltage Specification Chart (2 Of 8)

G02443391

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: ECM Connector Terminal Voltage Specification Chart (3 Of 8)

G02443392

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: ECM Connector Terminal Voltage Specification Chart (4 Of 8)

G02443393

Courtesy of NISSAN MOTOR CO., U.S.A.

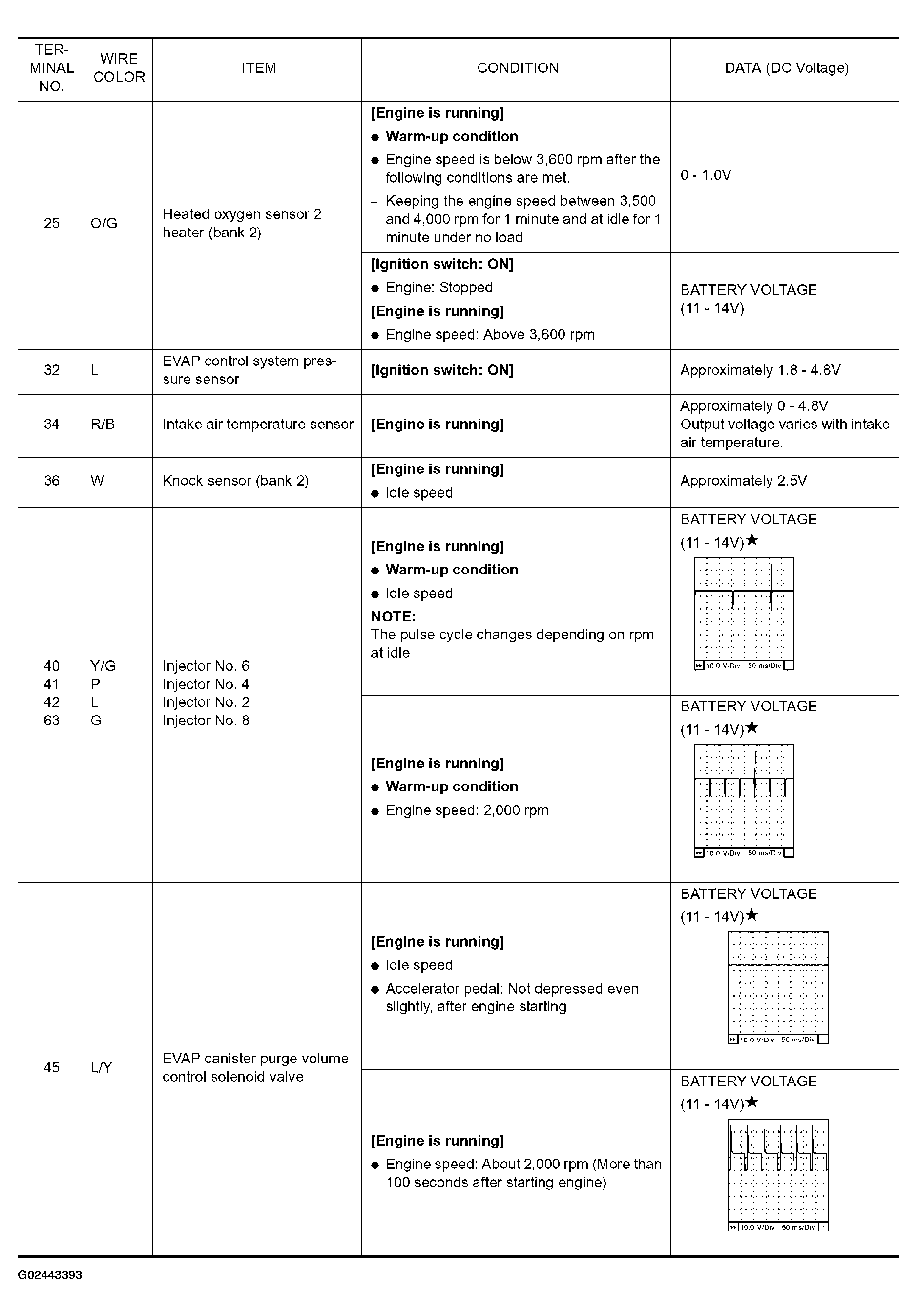

Fig 5: ECM Connector Terminal Voltage Specification Chart (5 Of 8)

G02443394

Courtesy of NISSAN MOTOR CO., U.S.A.

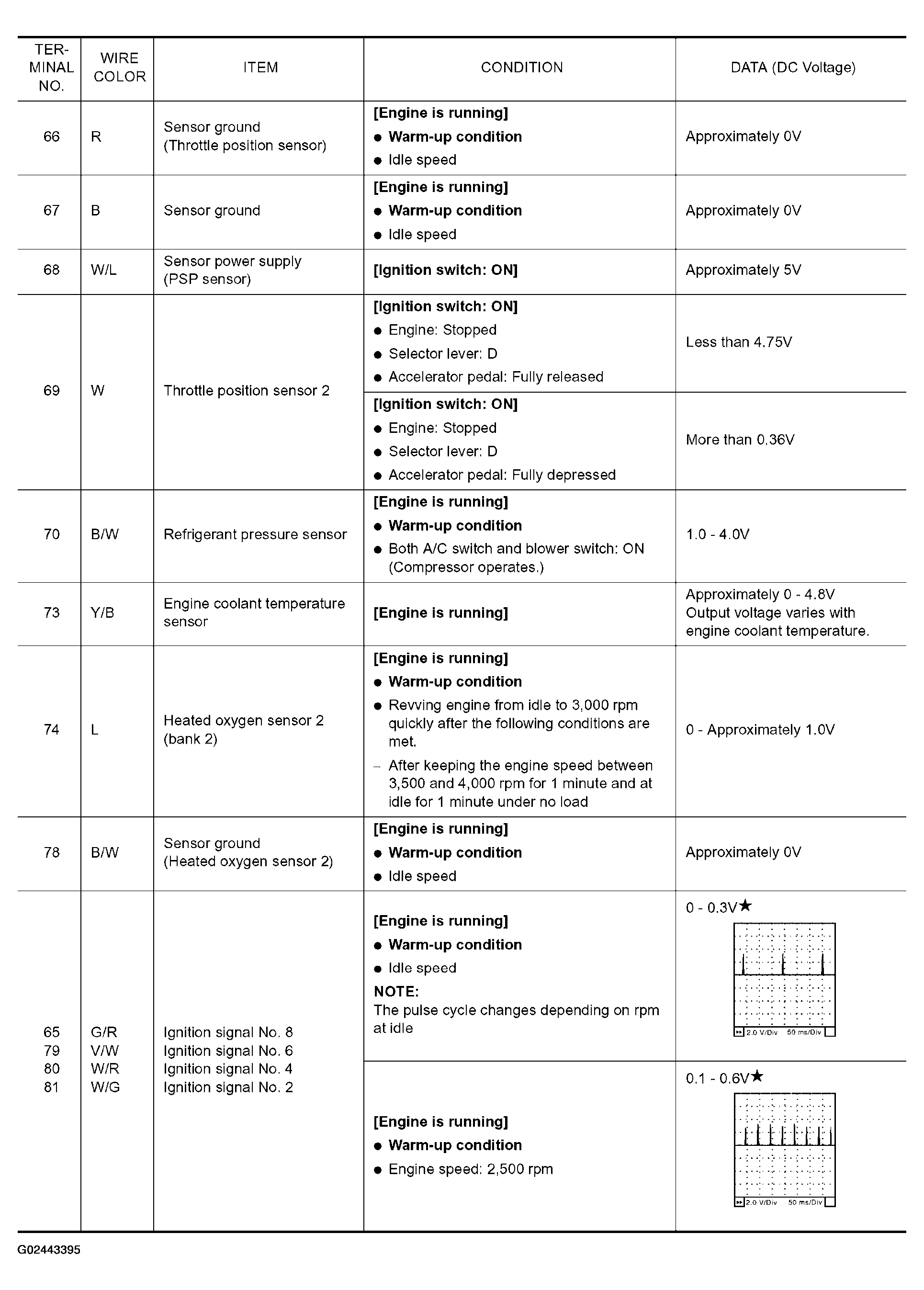

Fig 6: ECM Connector Terminal Voltage Specification Chart (6 Of 8)

G02443395

Courtesy of NISSAN MOTOR CO., U.S.A.

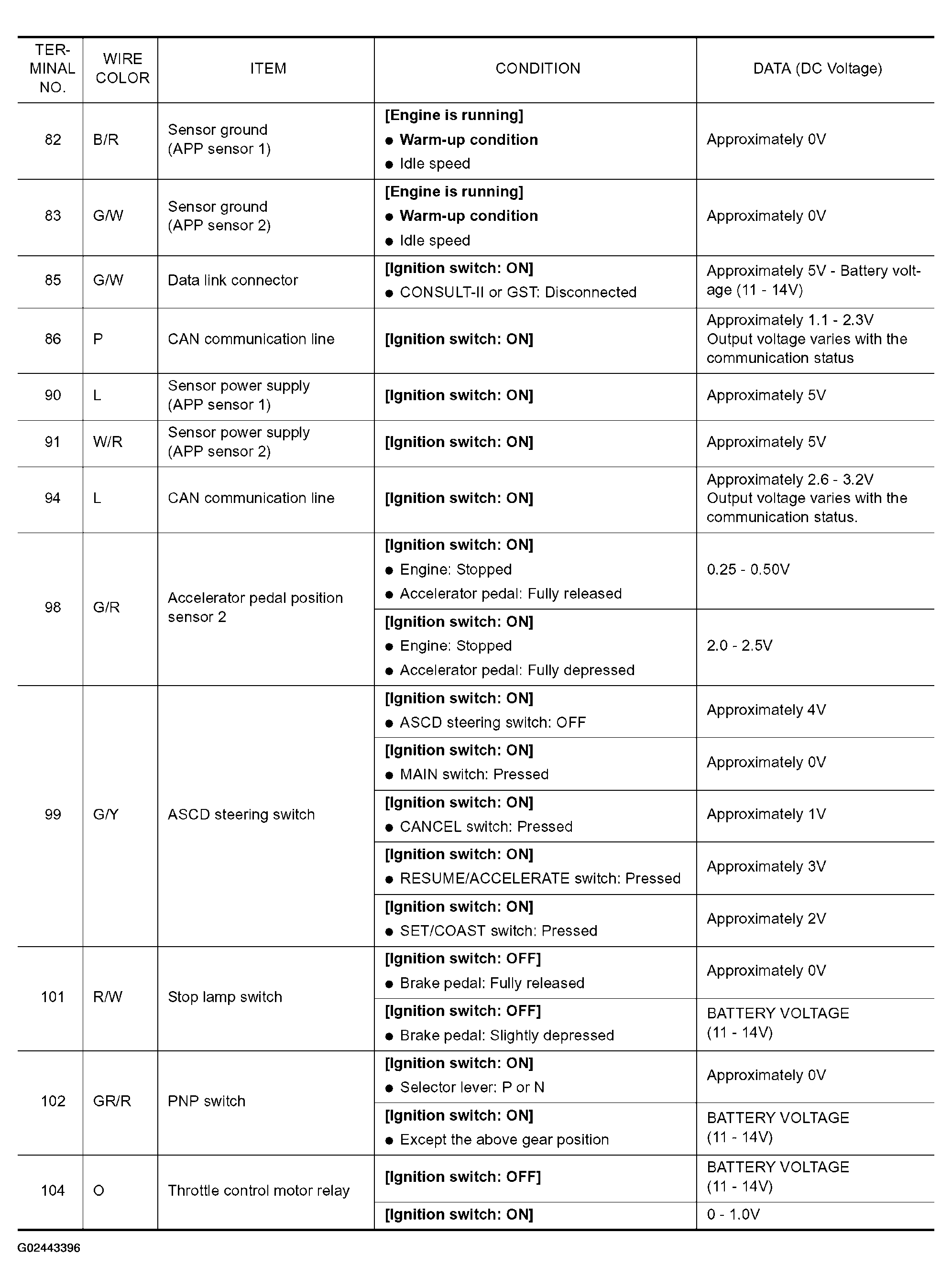

Fig 7: ECM Connector Terminal Voltage Specification Chart (7 Of 8)

G02443396

Courtesy of NISSAN MOTOR CO., U.S.A.

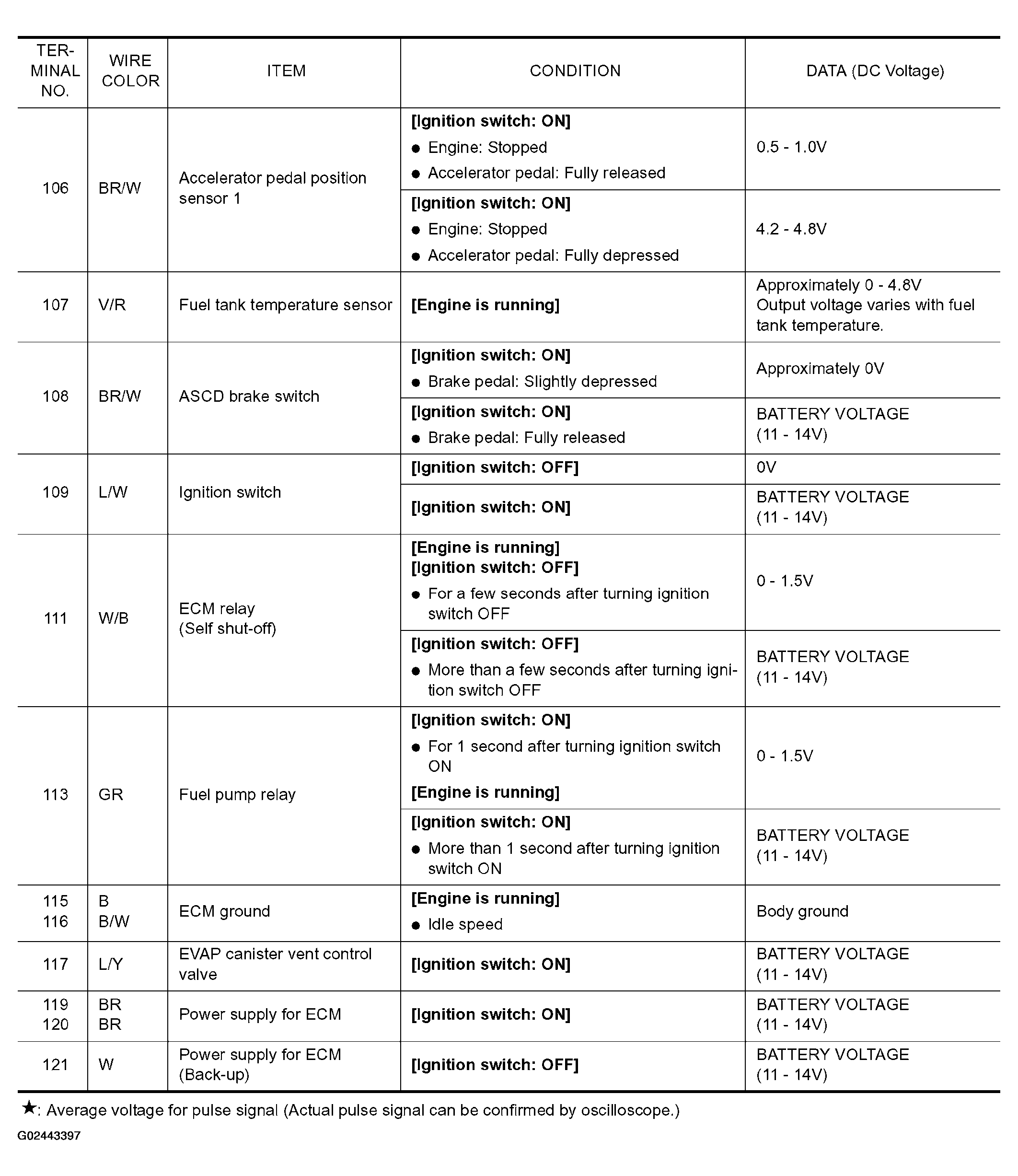

Fig 8: ECM Connector Terminal Voltage Specification Chart (8 Of 8)

G02443397

Courtesy of NISSAN MOTOR CO., U.S.A.
