ASCD Steering Switch

  1. Disconnect combination switch (spiral cable) harness connector M102.
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

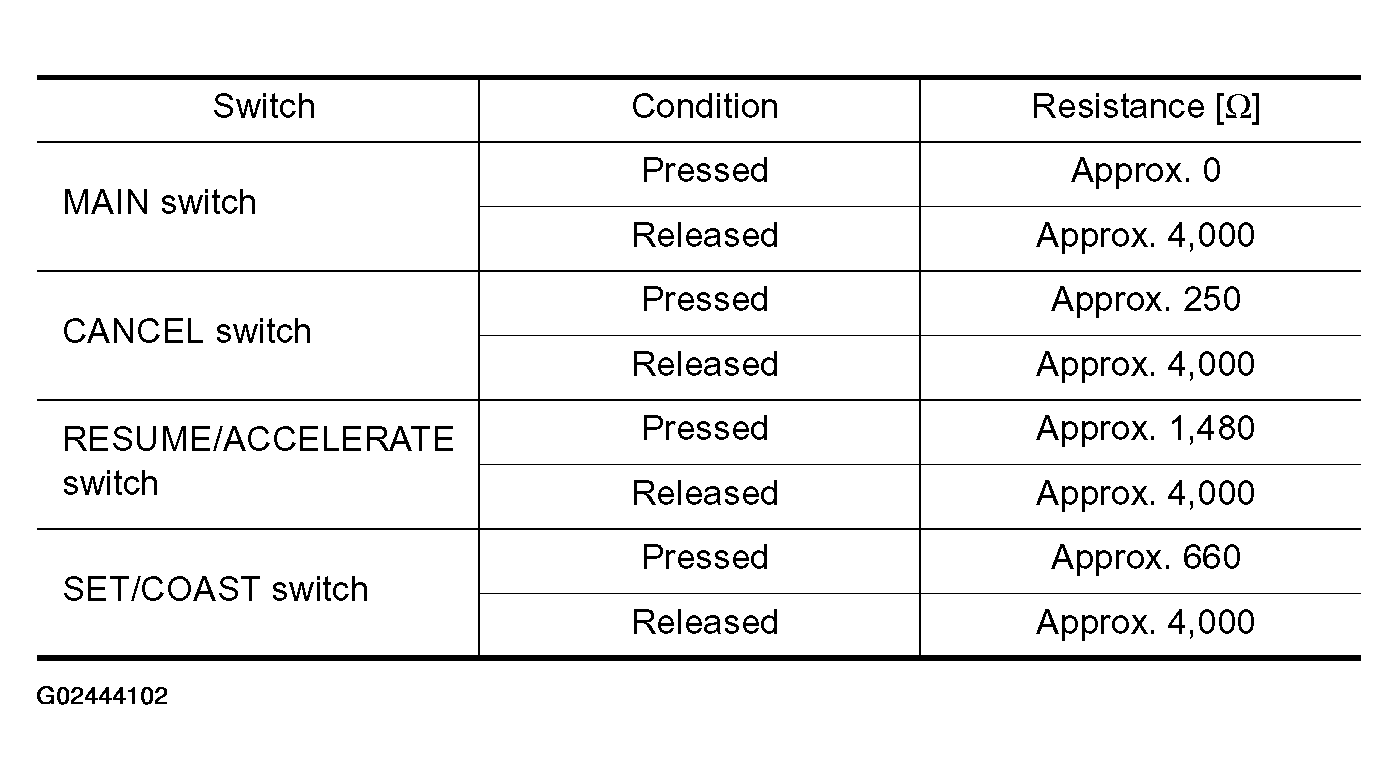

    Fig 1: Switch Reference Chart
    G02444102Courtesy of NISSAN MOTOR CO., U.S.A.

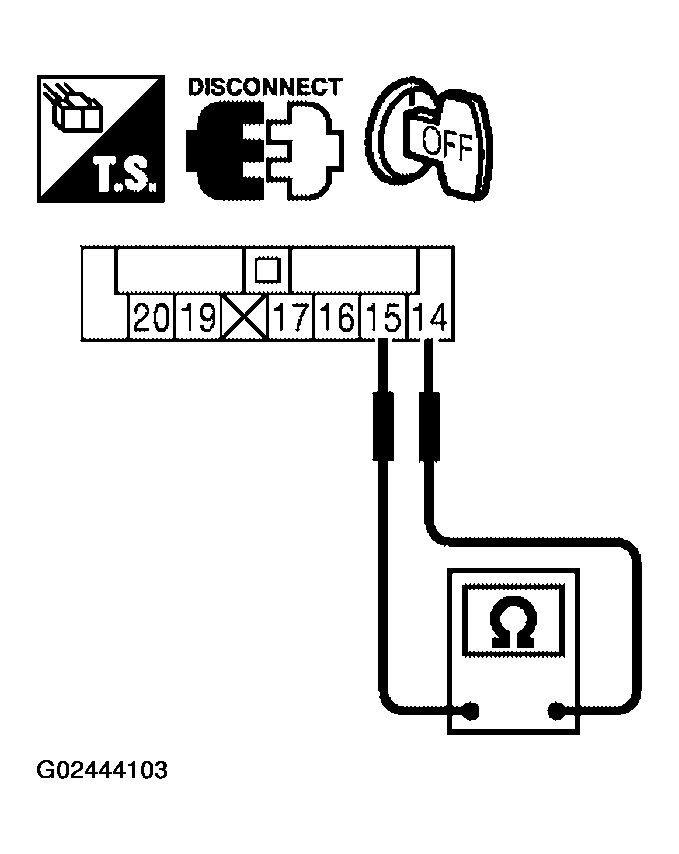

    Fig 2: Checking Continuity Between Combination Switch (Spiral Cable) Terminals
    G02444103Courtesy of NISSAN MOTOR CO., U.S.A.
