M/T Models

  1. CHECK OVERALL FUNCTION-I

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-II.
    3. Check "BRAKE SW1" indication under the following conditions.
      ASCD BRAKE SWITCH DIAGNOSTIC PROCEDURE (OVERALL FUNCTION-I - WITH CONSULT-II) - M/T MODELS

      CONDITION INDICATION
      Brake pedal and/or clutch pedal: Slightly depressed OFF
      Brake pedal and clutch pedal: Fully released ON

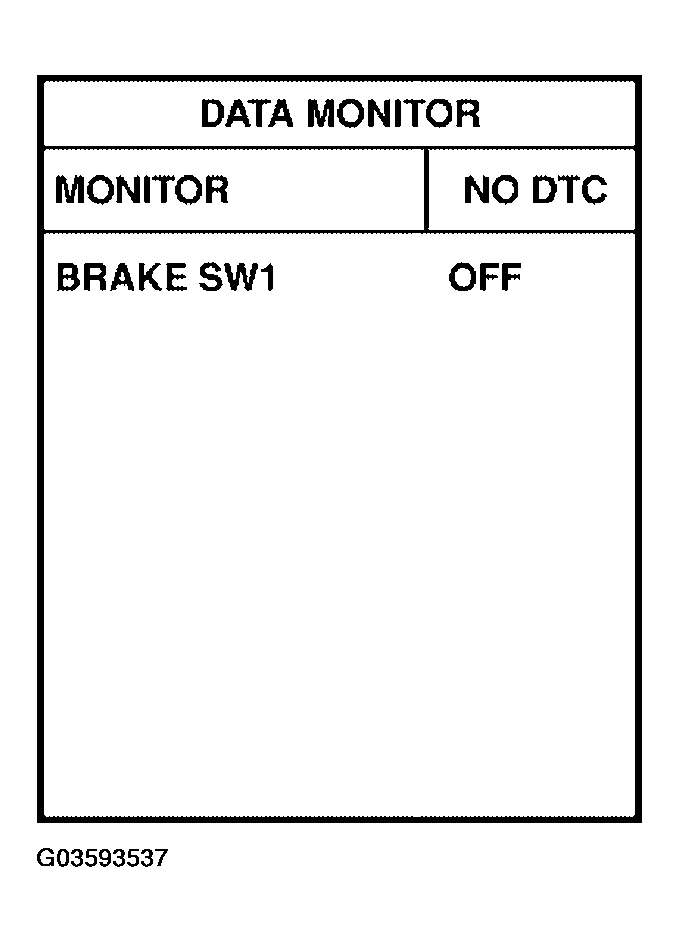

      Fig 1: DATA MONITOR - CONSULT-II Display
      G03593537Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.
      ASCD BRAKE SWITCH DIAGNOSTIC PROCEDURE (OVERALL FUNCTION-I - WITHOUT CONSULT-II) - M/T MODELS

      CONDITION VOLTAGE
      Brake pedal and/or clutch pedal: Slightly depressed Approximately 0V
      Brake pedal and clutch pedal: Fully released Battery voltage

    OK or NG

    1. OK : GO TO 2.
    2. NG : GO TO  3.

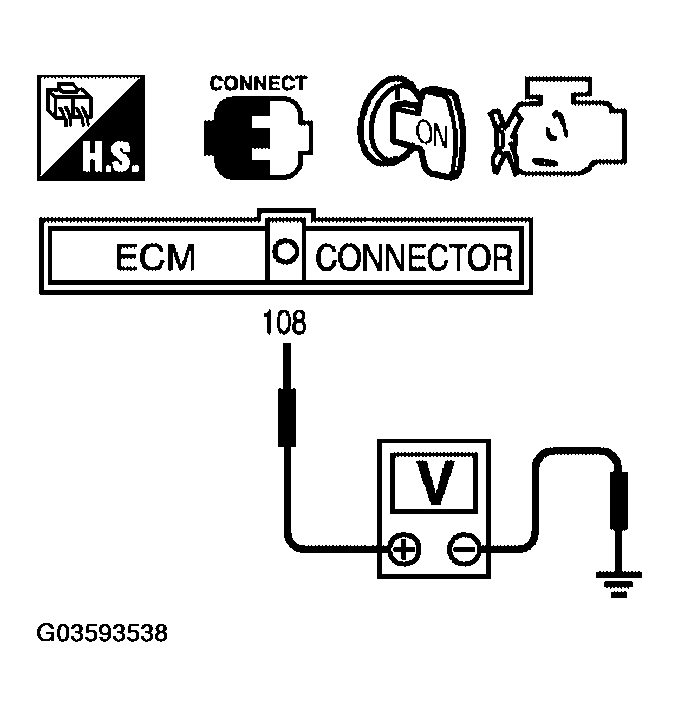

      Fig 2: Checking Voltage Between ECM Terminal 108 And Ground
      G03593538Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK OVERALL FUNCTION-II

    With CONSULT-II

    Check "BRAKE SW2" indication in "DATA MONITOR" mode.

    ASCD BRAKE SWITCH DIAGNOSTIC PROCEDURE (OVERALL FUNCTION-II - WITH CONSULT-II) - M/T MODELS

    CONDITION INDICATION
    Brake pedal: Fully released OFF
    Brake pedal: Slightly depressed ON

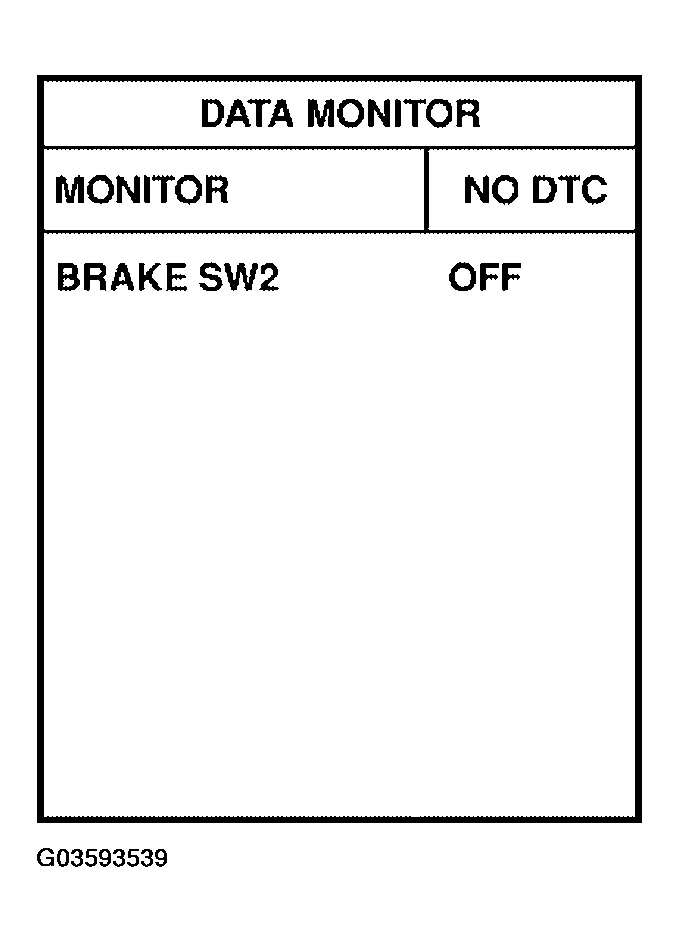

    Fig 3: DATA MONITOR - CONSULT-II Display
    G03593539Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between ECM terminal 101 and ground under the following conditions.

    ASCD BRAKE SWITCH DIAGNOSTIC PROCEDURE (OVERALL FUNCTION-II - WITHOUT CONSULT-II) - M/T MODELS

    CONDITION VOLTAGE
    Brake pedal: Fully released Approximately 0V
    Brake pedal: Slightly depressed Battery voltage

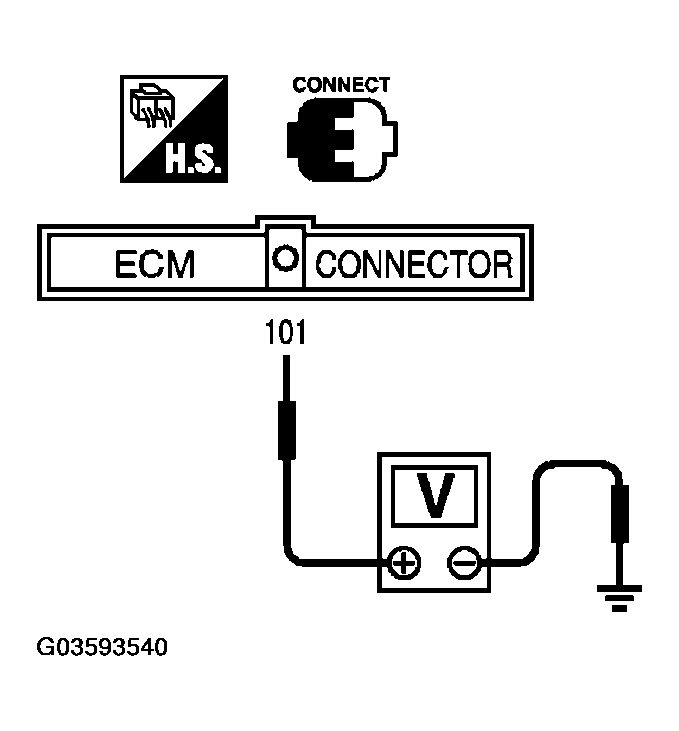

    Fig 4: Checking Voltage Between ECM Terminal 101 And Ground
    G03593540Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : INSPECTION END
    2. NG : GO TO  10.
  3. CHECK ASCD BRAKE SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD clutch switch harness connector.
    3. Turn ignition switch ON.

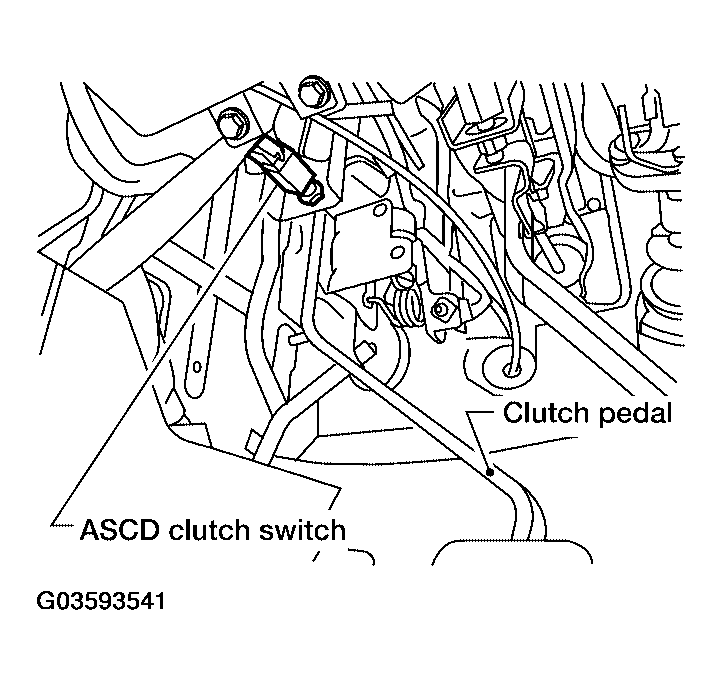

      Fig 5: Disconnecting ASCD Clutch Switch Harness Connector
      G03593541Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD clutch switch terminal 1 and ground under the following conditions with CONSULT-II or tester.
      ASCD BRAKE SWITCH DIAGNOSTIC PROCEDURE (OVERALL FUNCTION-II - WITHOUT CONSULT-II) - M/T MODELS

      CONDITION VOLTAGE
      Brake pedal: Fully released Battery voltage
      Brake pedal: Slightly depressed Approx. 0V

    OK or NG

    1. OK : GO TO  8.
    2. NG : GO TO 4.

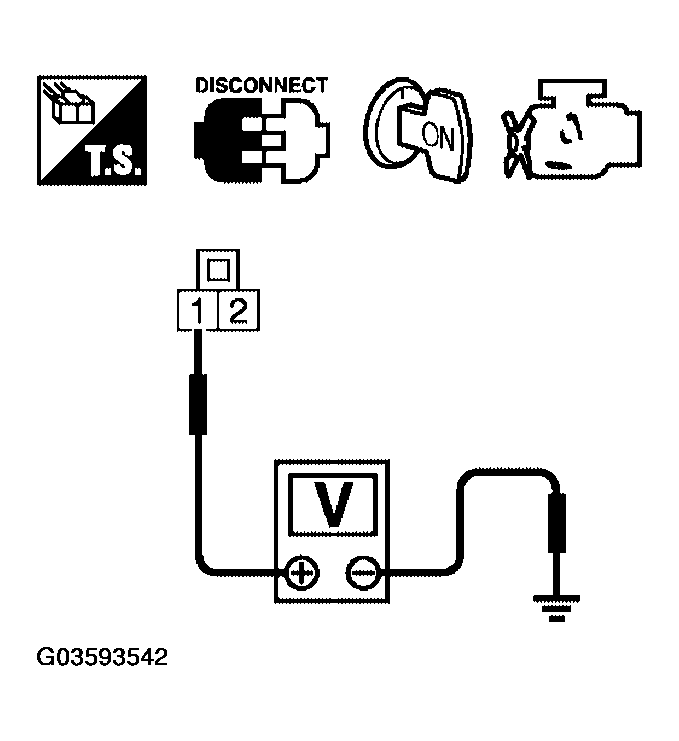

      Fig 6: Checking Voltage Between ASCD Clutch Switch Terminal 1 And Ground
      G03593542Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch harness connector.
    3. Turn ignition switch ON.

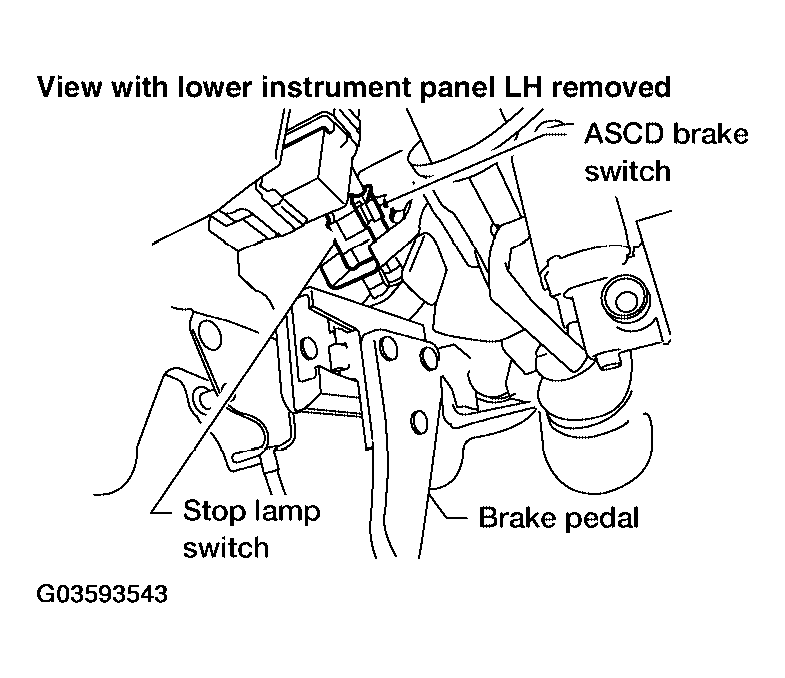

      Fig 7: Disconnecting ASCD Brake Switch Harness Connector
      G03593543Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-II or tester.

      Voltage: Battery voltage

    OK or NG

    1. OK : GO TO  6.
    2. NG : GO TO 5.

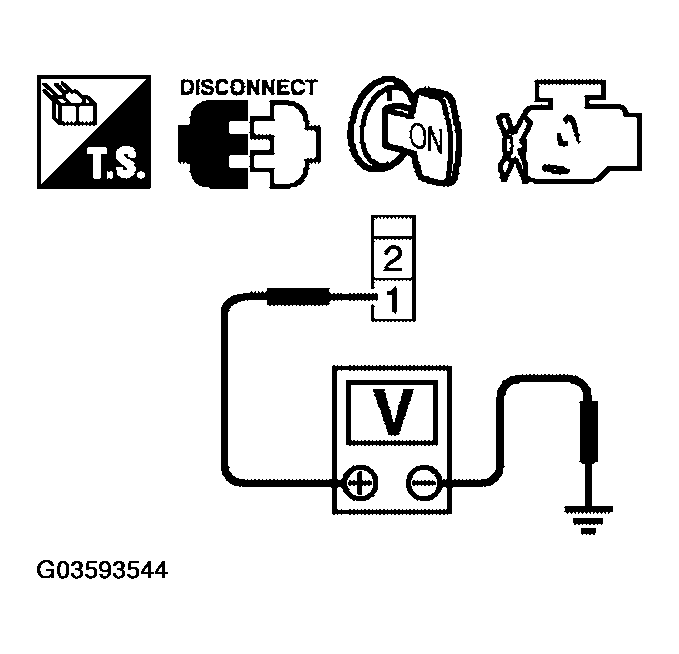

      Fig 8: Checking Voltage Between ASCD Brake Switch Terminal 1 And Ground
      G03593544Courtesy of NISSAN MOTOR CO., U.S.A.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10A fuse
    • Harness for open or short between ASCD brake switch and fuse
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between ASCD brake switch terminal 2 and ASCD clutch switch terminal 1. Refer to WIRING DIAGRAM .

      Continuity should exist  .

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO 7.
    2. NG : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    1. OK : GO TO  14.
    2. NG : Replace ASCD brake switch.
  8. CHECK ASCD CLUTCH SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD clutch switch terminal 2. Refer to WIRING DIAGRAM .

      Continuity should exist  .

    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO 9.
    2. NG : Repair open circuit or short to ground or short to power in harness or connectors.
  9. CHECK ASCD CLUTCH SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    1. OK : GO TO  14.
    2. NG : Replace ASCD clutch switch
  10. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch harness connector.

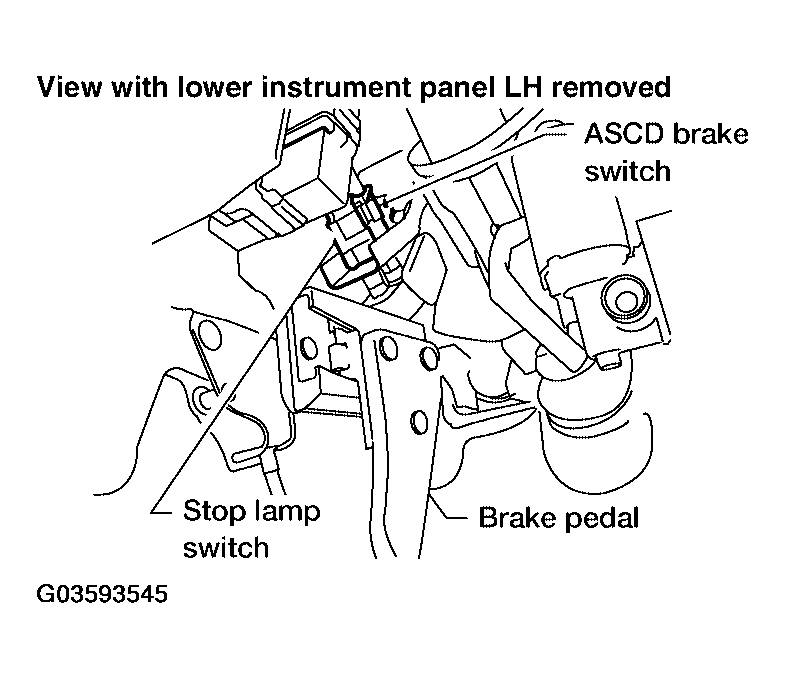

      Fig 9: Disconnecting Stop Lamp Switch Harness Connector
      G03593545Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT -II or tester.

      Voltage: Battery voltage

    OK or NG

    1. OK : GO TO  12.
    2. NG : GO TO 11.

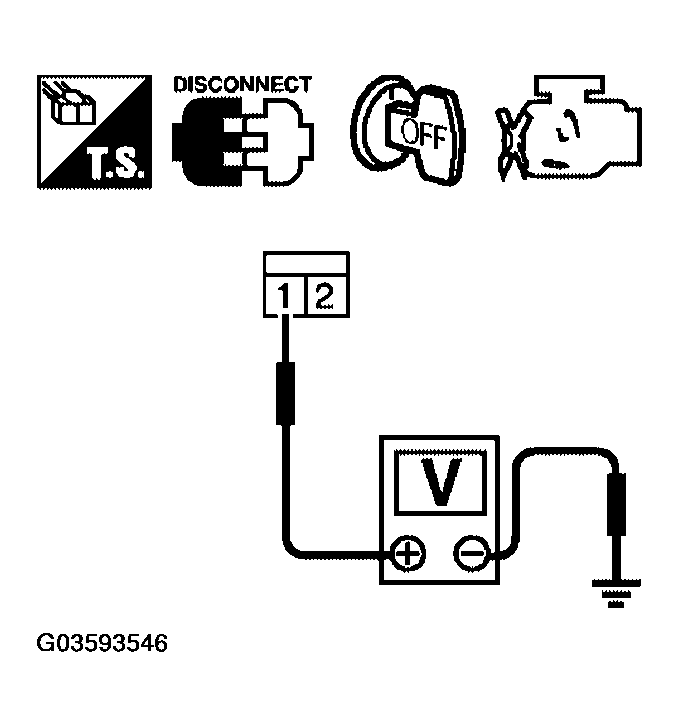

      Fig 10: Checking Voltage Between Stop Lamp Switch Terminal 1 And Ground
      G03593546Courtesy of NISSAN MOTOR CO., U.S.A.
  11. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E160
    • 10A fuse
    • Harness for open or short between stop lamp switch and fuse
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  12. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2. Refer to WIRING DIAGRAM .

      Continuity should exist  .

    3. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO 13.
    2. NG : Repair open circuit or short to ground or short to power in harness or connectors.
  13. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    1. OK : GO TO 14.
    2. NG : Replace stop lamp switch.
  14. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. : INSPECTION END
