Items Of Each Part

NOTE: CONSULT-II will only display systems the vehicle possesses.

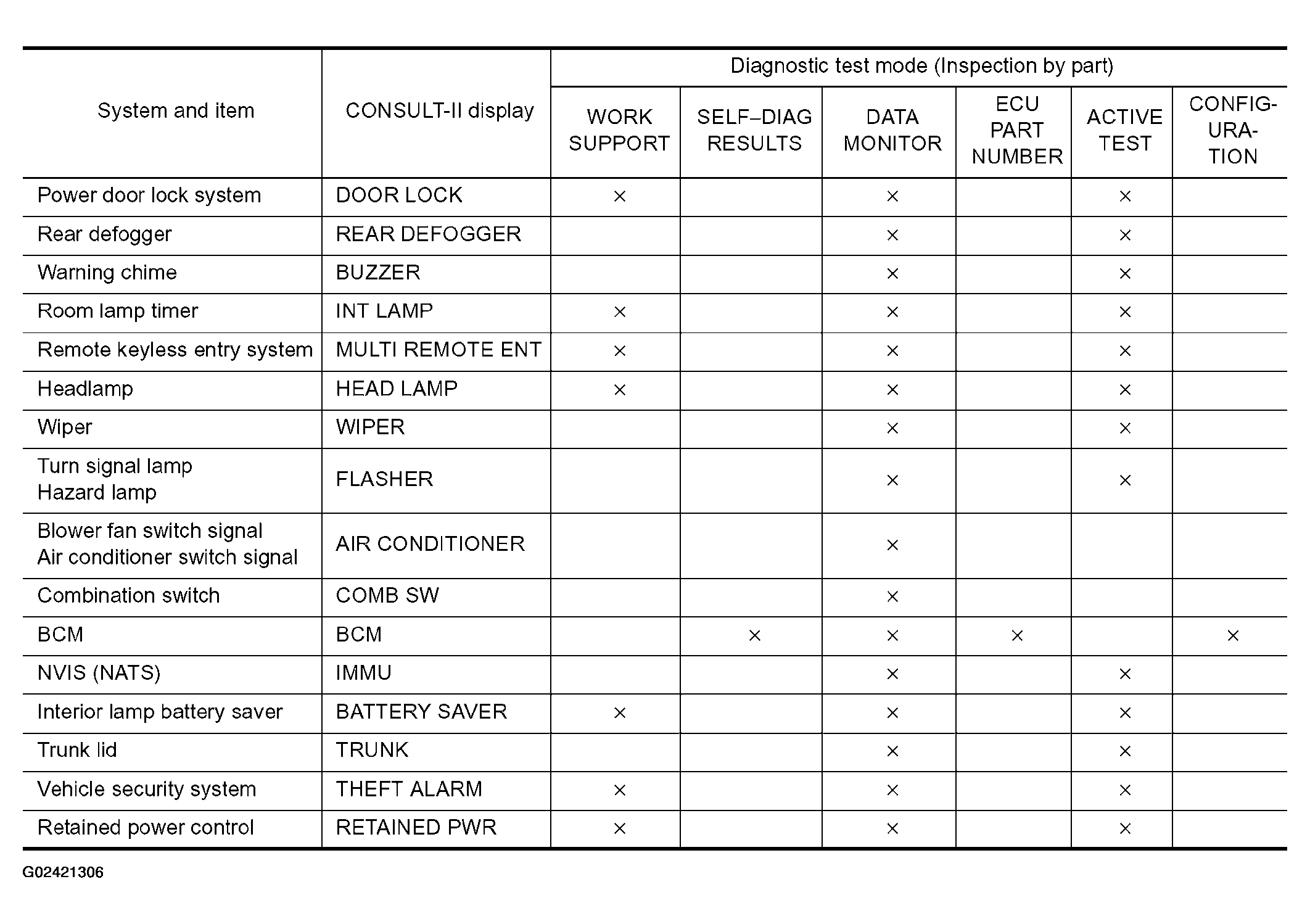

Fig 1: System & Item No Specification Chart
G02421306Courtesy of NISSAN MOTOR CO., U.S.A.
