Operation Procedure

  1. Touch "BCM" on "SELECT TEST ITEM" screen.

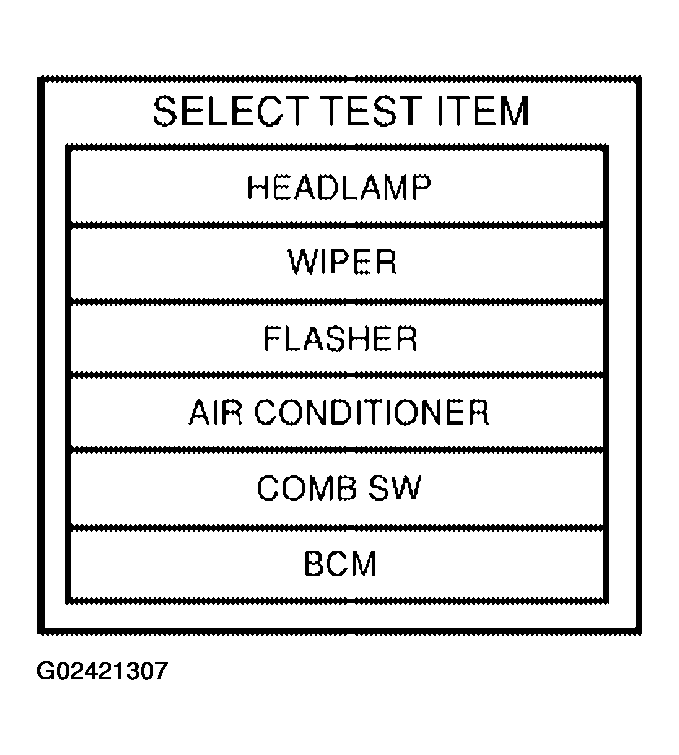

    Fig 1: CONSULT-II - Select Test Item Display
    G02421307Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  3. Touch item on "SELECT WORK ITEM" screen.
  4. Touch "START".
  5. Touch "CHANGE SET".
  6. The setting will be changed and "RESETTING COMPLETED" will be displayed.
  7. Touch "END".

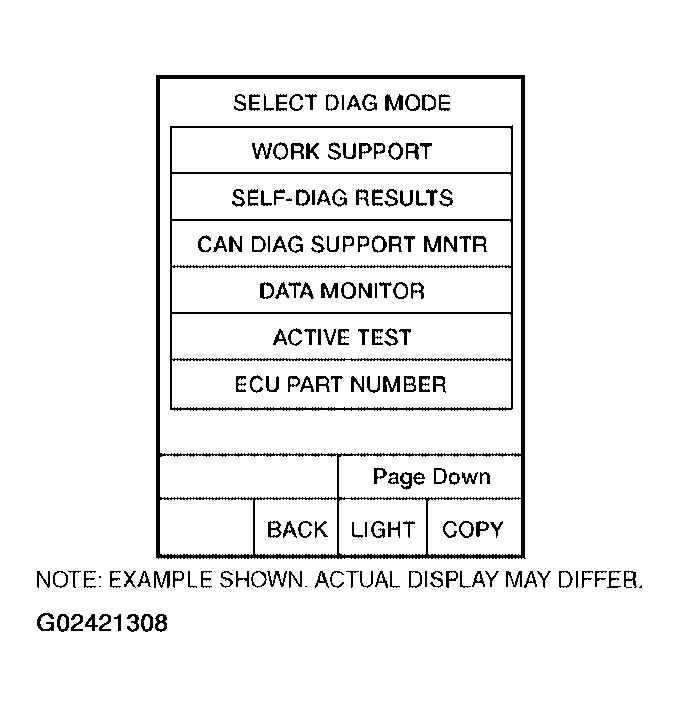

    Fig 2: CONSULT-II - Select Diag Mode Item Display
    G02421308Courtesy of NISSAN MOTOR CO., U.S.A.
