Read Configuration Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

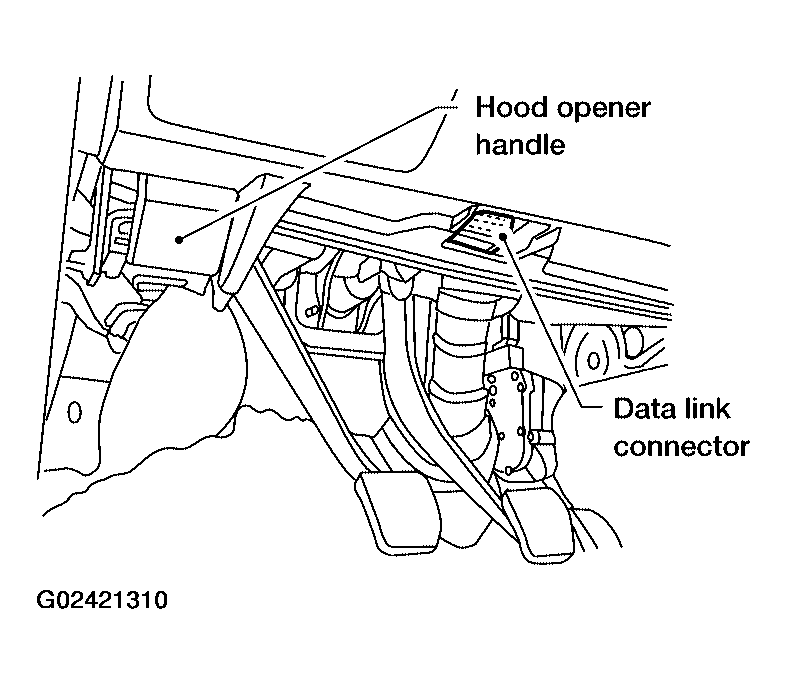

Fig 1: Identifying Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

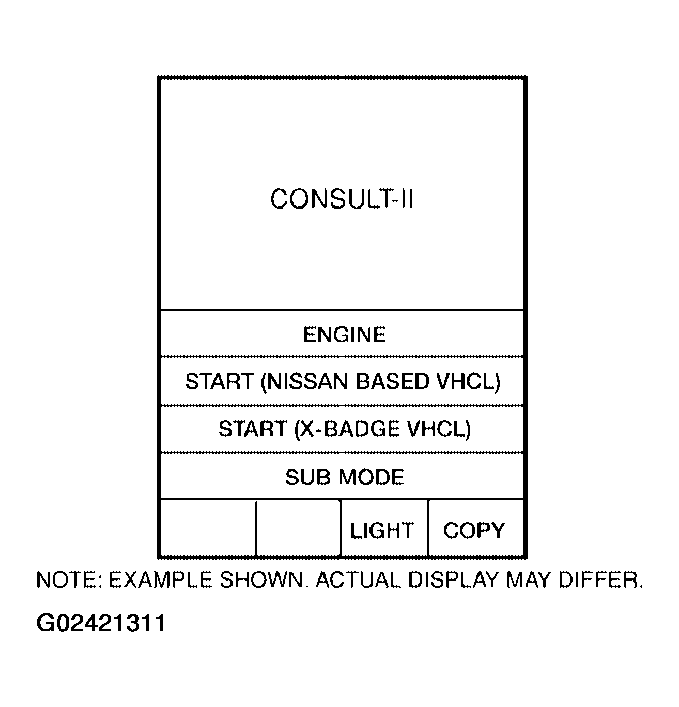

Fig 2: CONSULT-II - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT ITEM" screen. If "BCM" is not indicated, check CONSULT II data link connector (DLC) circuit. Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

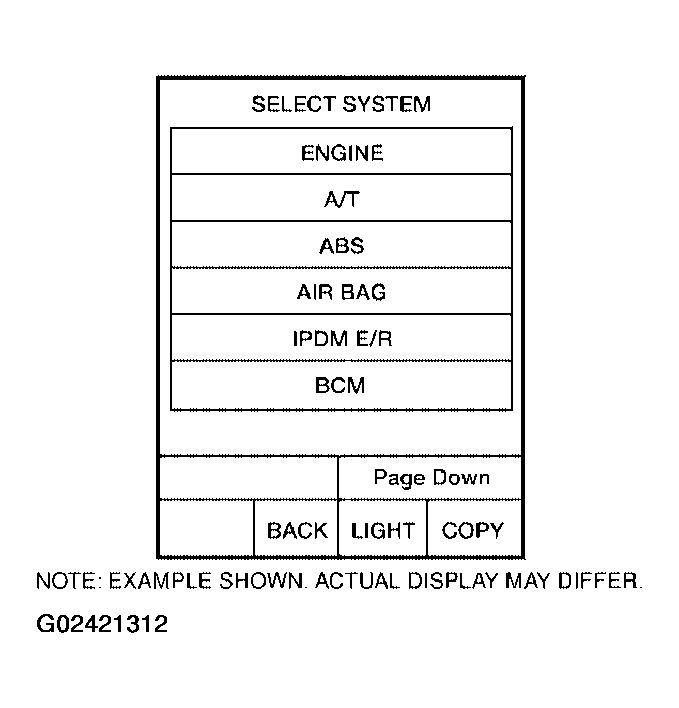

Fig 3: CONSULT-II - Select System Display
Courtesy of NISSAN MOTOR CO., U.S.A.

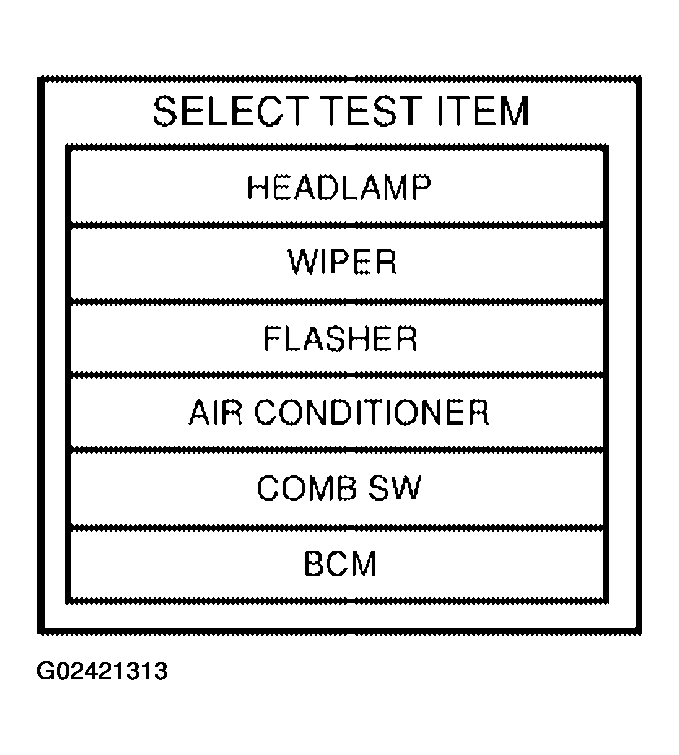

Touch "BCM" on "SELECT TEST ITEM" screen.

Fig 4: CONSULT-II - Select Test Item Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

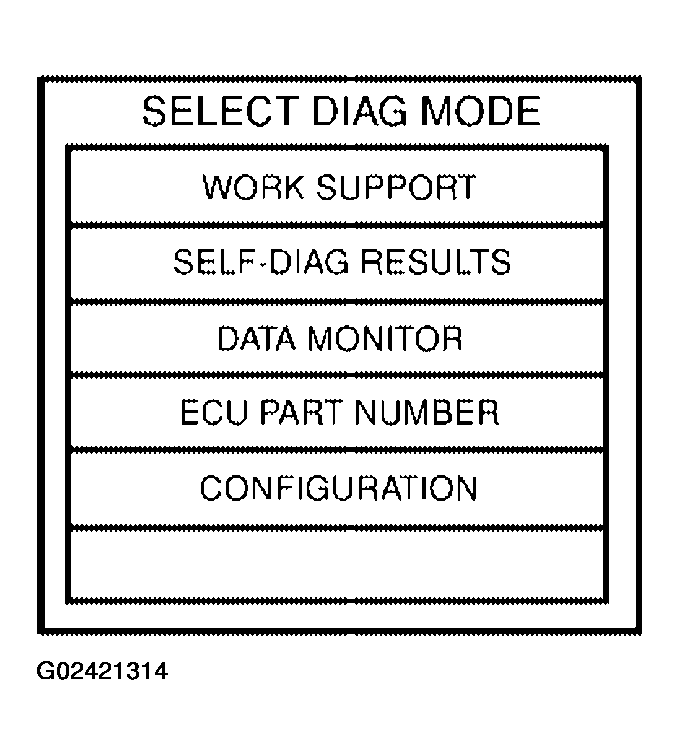

Fig 5: CONSULT-II - Select Diag Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "A34" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

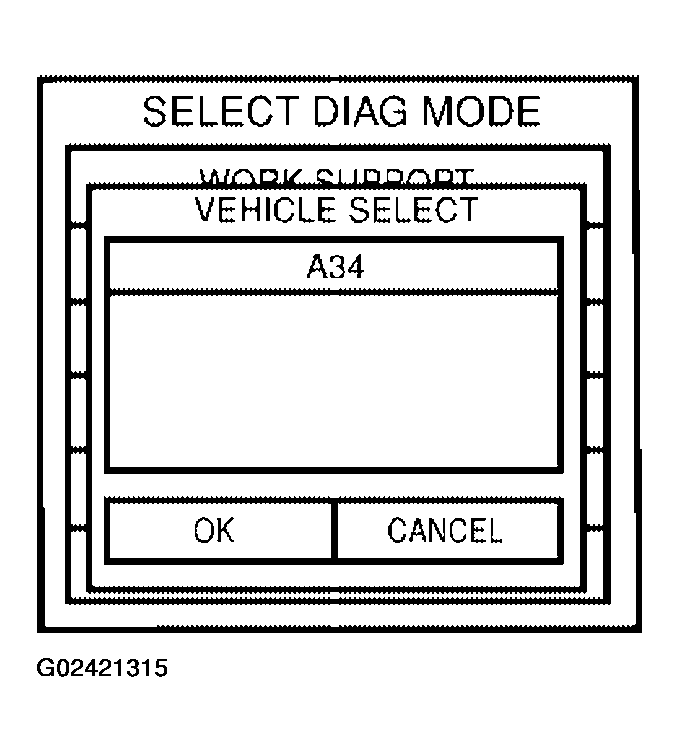

Fig 6: With CONSULT-II - Select Diag Mode Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "READ CONFIGURATION" on "SELECT CONFIG ITEM" screen.

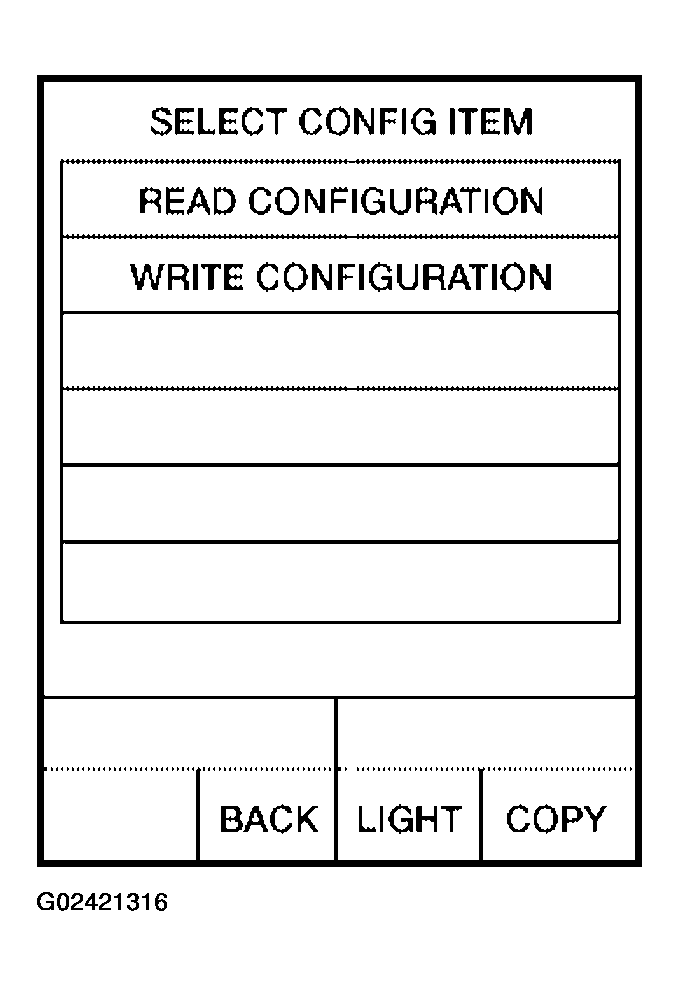

Fig 7: CONSULT-II - Select Config Item Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Configuration of current BCM is printed out automatically. A listing of manual setting items and auto setting items will be displayed. Auto setting items are preset and cannot be changed. Manual setting items can be set by using WRITE CONFIGURATION PROCEDURE. Refer to WRITE CONFIGURATION PROCEDURE .

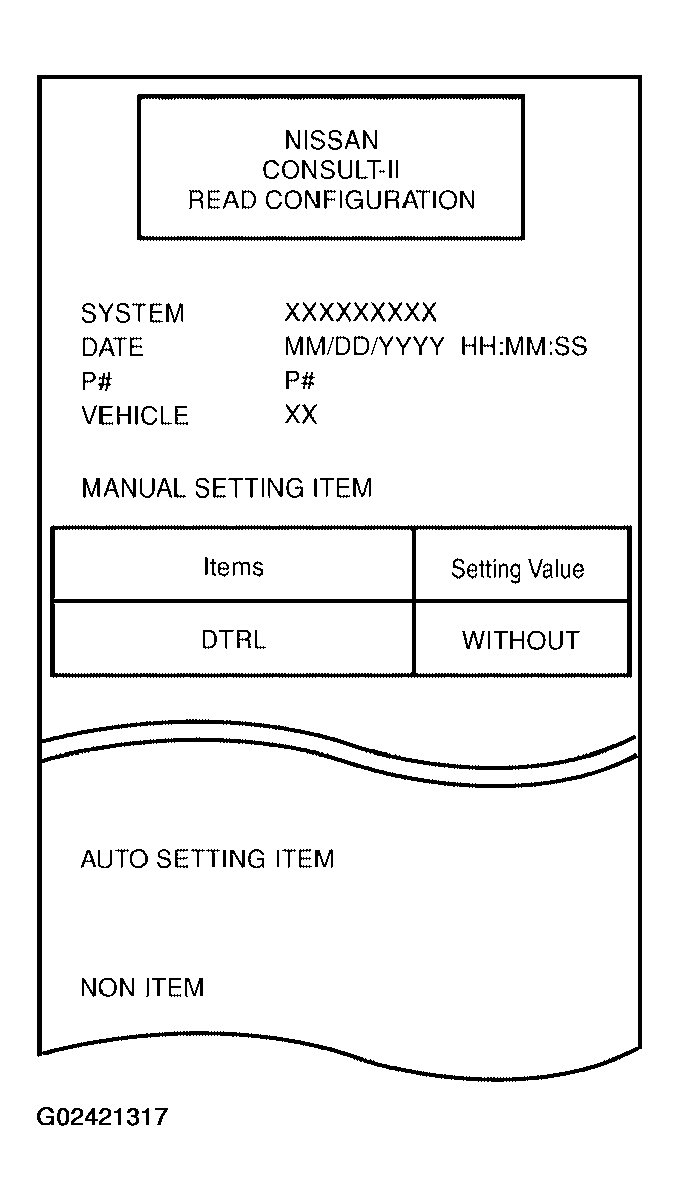

Fig 8: CONSULT-II - Nissan Read Configuration Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BACK" on "READ CONFIGURATION" screen.

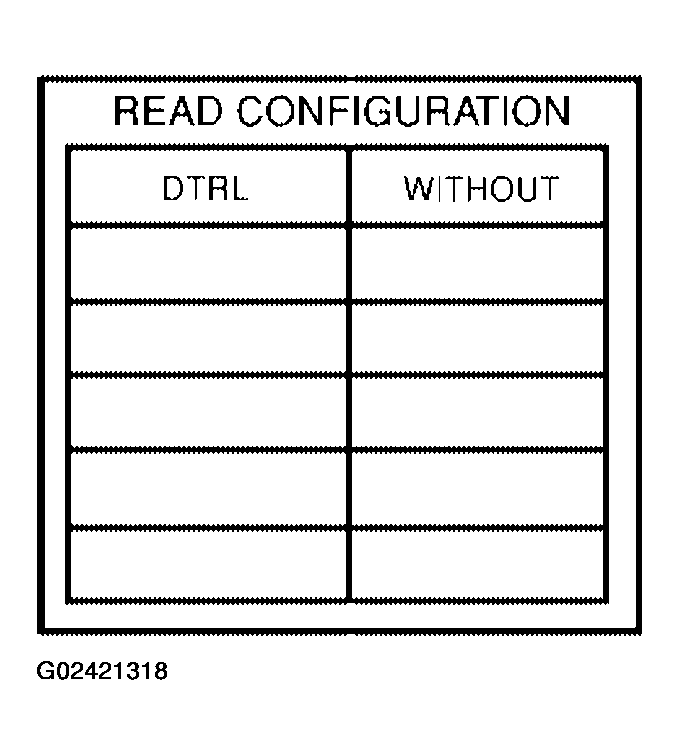

Fig 9: CONSULT-II - Read Configuration Display
Courtesy of NISSAN MOTOR CO., U.S.A.
