Write Configuration Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

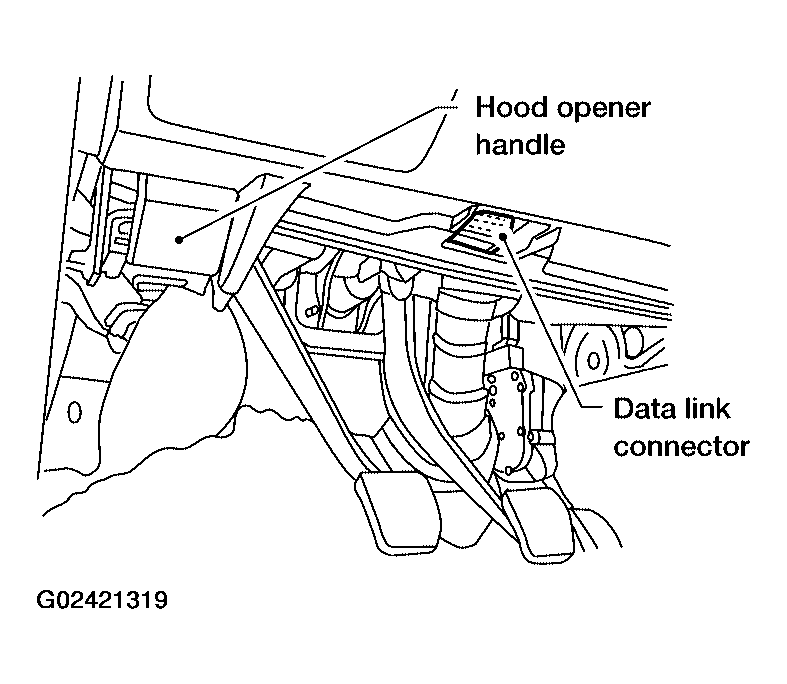

    Fig 1: Identifying Hood Opener
    G02421319Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

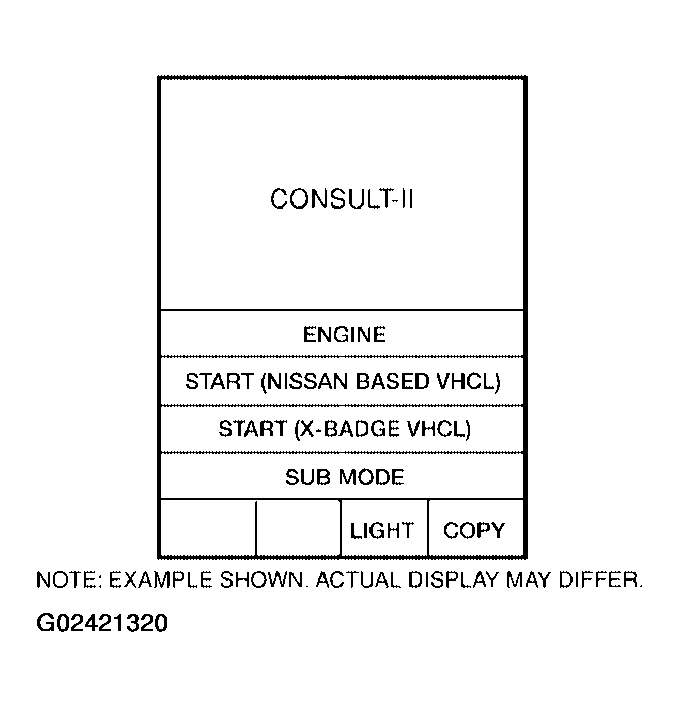

    Fig 2: CONSULT-II - Display
    G02421320Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, check CONSULT II data link connector (DLC) circuit. Refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

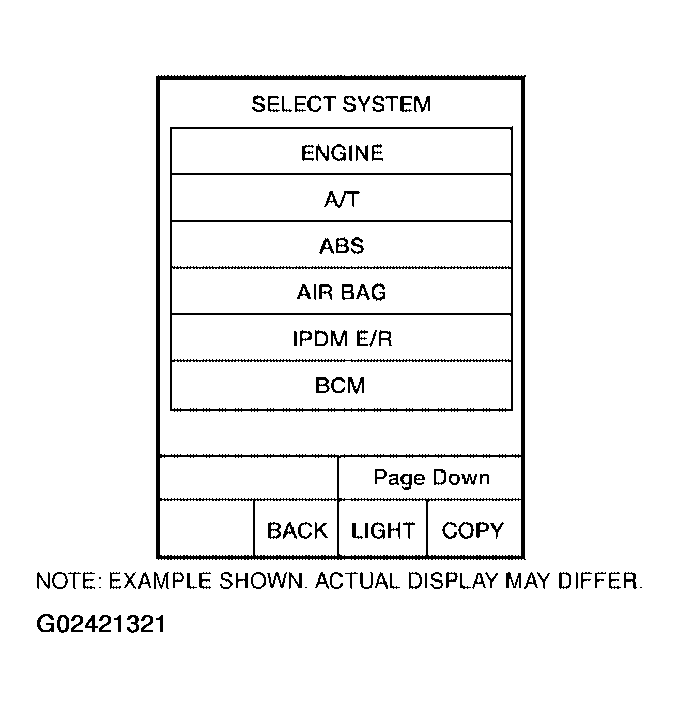

    Fig 3: CONSULT-II - Select System Display
    G02421321Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.

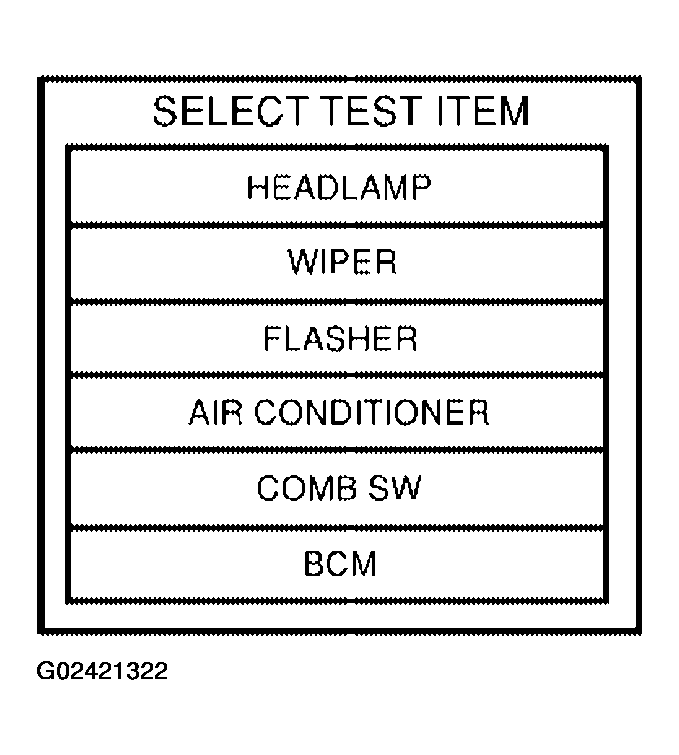

    Fig 4: CONSULT-II - Select Test Item Display
    G02421322Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

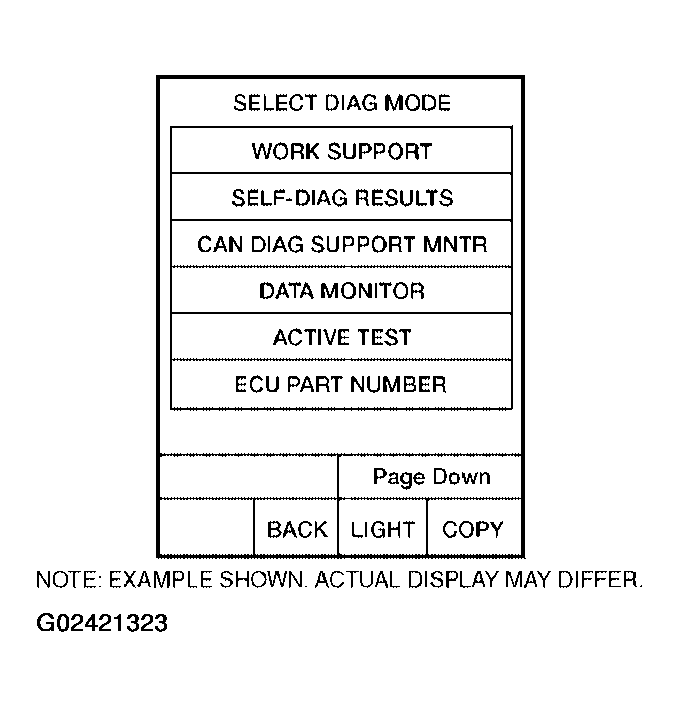

    Fig 5: CONSULT-II - Select Diag Mode Item Display
    G02421323Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "A34" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

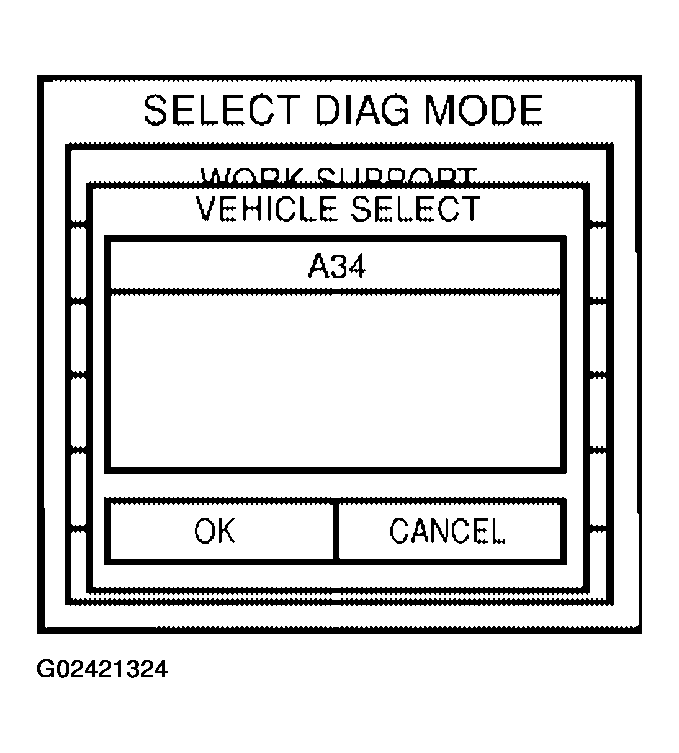

    Fig 6: CONSULT-II - Select Diag Mode Item Display
    G02421324Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WRITE CONFIGURATION" on "SELECT CONFIG ITEM" screen.

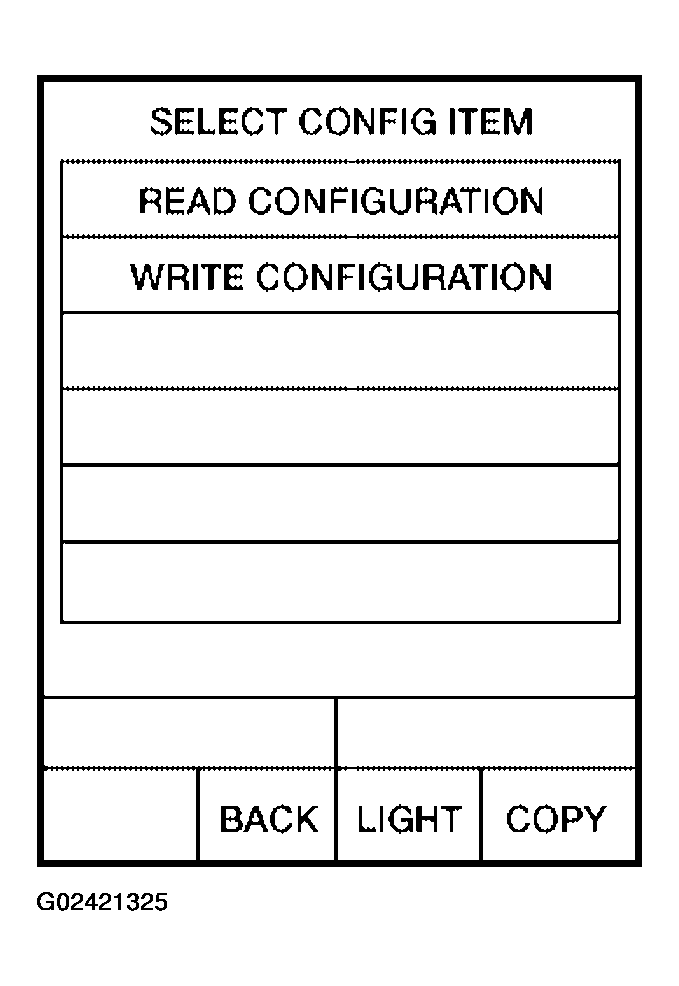

    Fig 7: CONSULT-II - Select Config Item Display
    G02421325Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "OK".

    For canceling, touch "CANCEL".

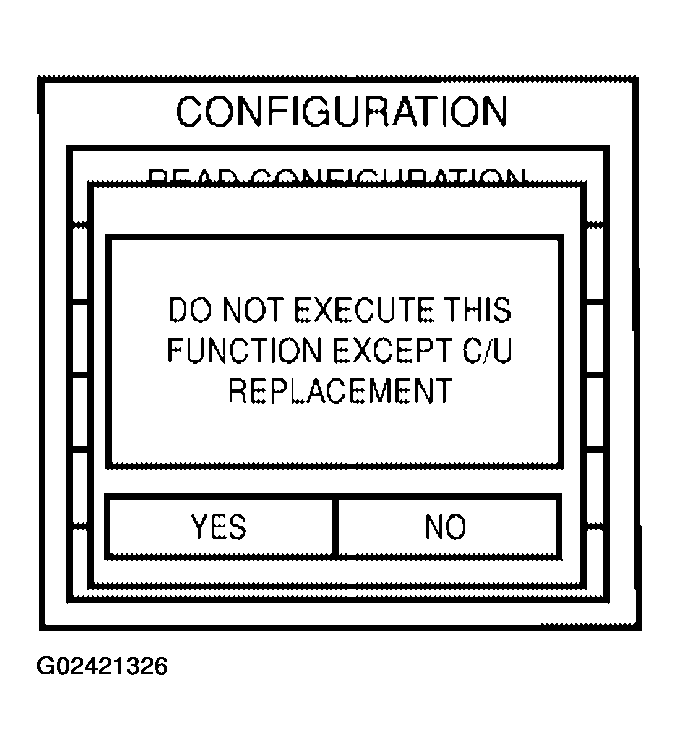

    Fig 8: CONSULT-II - Configuration Display
    G02421326Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "WITH" or "WITHOUT" on "WRITE CONFIGURATION" screen based on the following ITEM LIST.

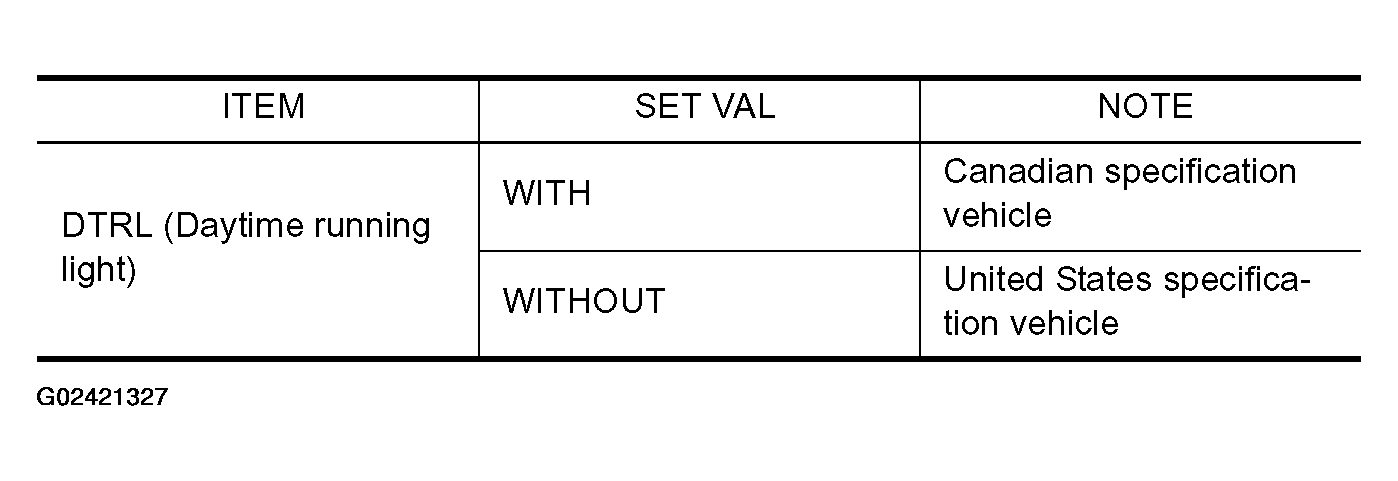

    Fig 9: Item Test Specification Chart
    G02421327Courtesy of NISSAN MOTOR CO., U.S.A.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of brand-new BCM is same as the desirable configuration.
    If not, configuration which is set automatically by selecting vehicle model cannot be memorized.
  11. Touch "OK" on "WRITE CONFIGURATION" screen.

    If "CANCEL" is touched, it will return to previous screen.

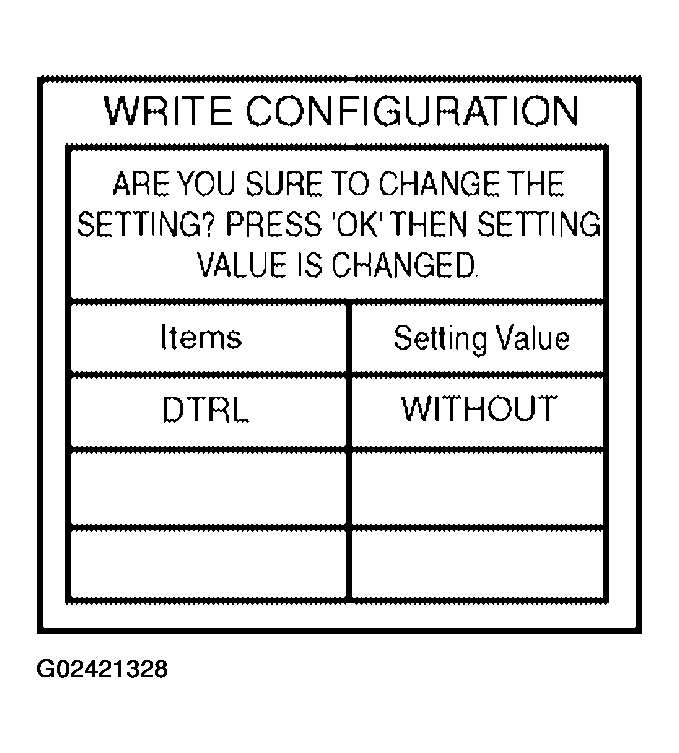

    Fig 10: CONSULT-II - Write Configuration Display (1 Of 2)
    G02421328Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Wait until the next screen during setting.

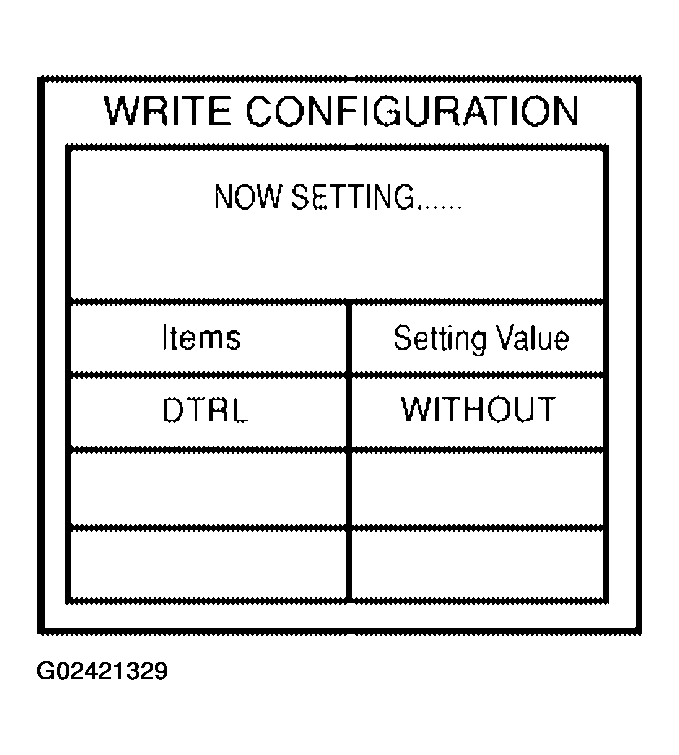

    Fig 11: CONSULT-II - Write Configuration Display (2 Of 2)
    G02421329Courtesy of NISSAN MOTOR CO., U.S.A.
  13. WRITE CONFIGURATION results are printed out automatically. Check "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with desirable configuration.

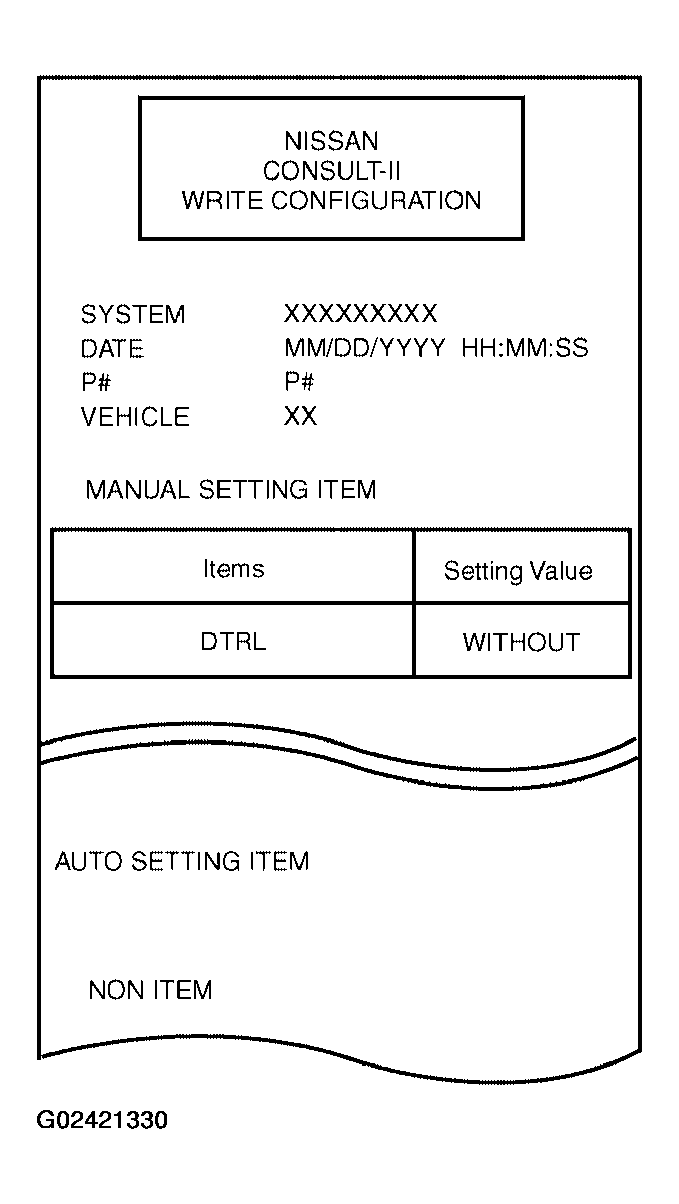

    Fig 12: CONSULT-II - Nissan Write Configuration Display
    G02421330Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "OK" on "WRITE CONFIGURATION" screen. WRITE CONFIGURATION is completed.

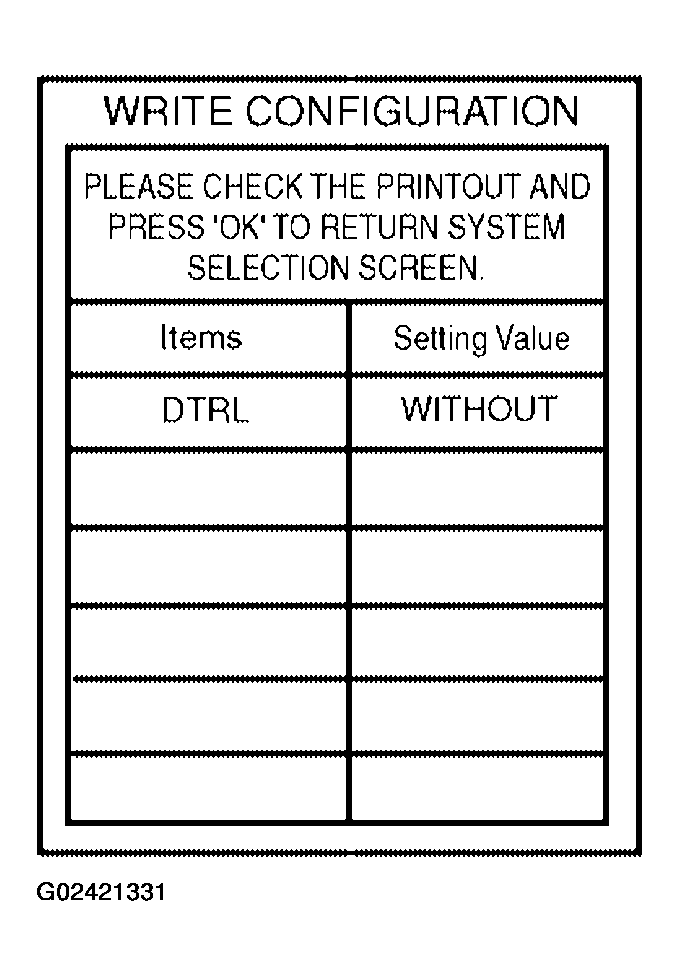

    Fig 13: CONSULT-II - write Configuration Display
    G02421331Courtesy of NISSAN MOTOR CO., U.S.A.
