Control System Outline

The automatic transaxle senses vehicle operating conditions through various sensors or signals. It always controls the optimum shift position and reduces shifting and lock-up shocks.

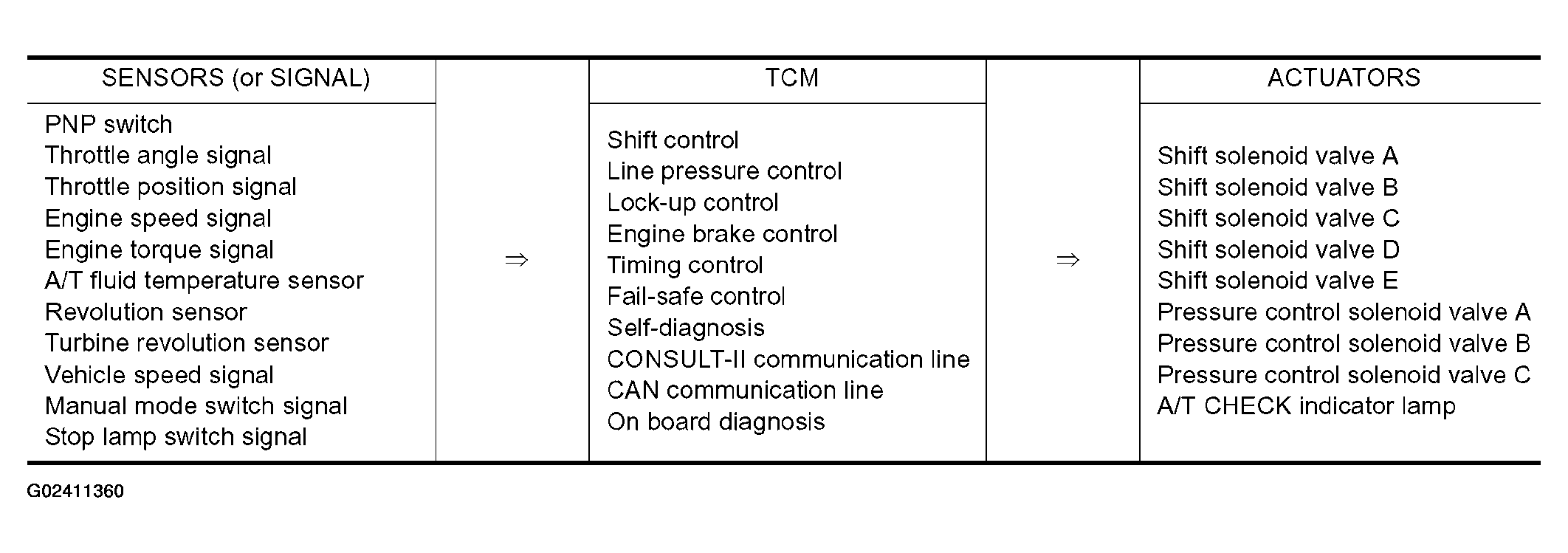

Fig 1: Sensor TCM Specification Chart
G02411360Courtesy of NISSAN MOTOR CO., U.S.A.
