Optical Sensor System Inspection

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OPTICAL SENSOR INPUT SIGNAL

    With CONSULT-II

    Select "BCM" on CONSULT-II. With "OPTICAL SENSOR" data monitor, check difference in the voltage when the optical sensor is illuminated and not illuminated.

    • Illuminated
    • OPTICAL SENSOR: 3.1 V or more
    • Not illuminated
    • OPTICAL SENSOR: 0.6 V or less

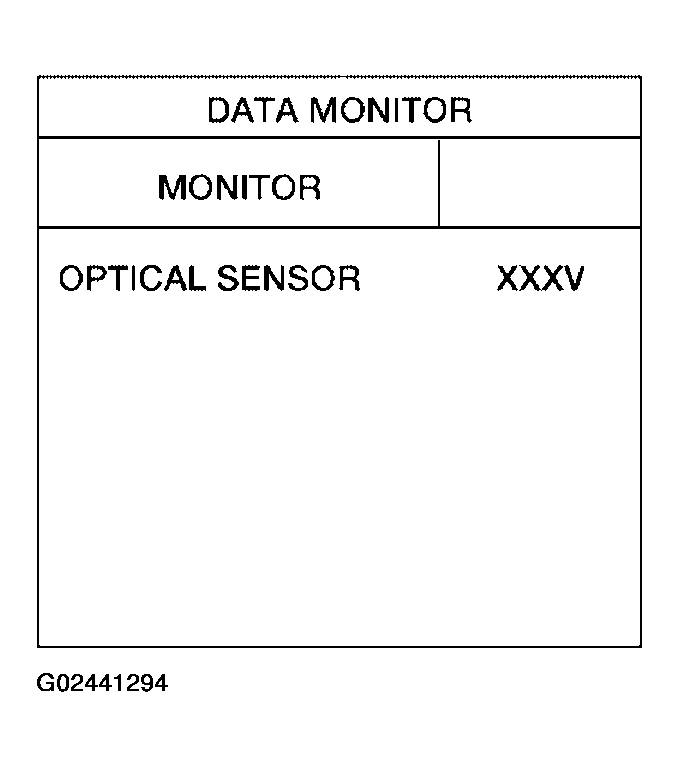

    Fig 1: With CONSULT-II - Data Monitor Display
    G02441294Courtesy of NISSAN MOTOR CO., U.S.A.
    NOTE: Optical sensor must be completely subjected to work lamp light. If the optical sensor is insufficiently illuminated, the measured value may not satisfy the standard.

    Without CONSULT-II

    GO TO  2.

    OK or NG

    • OK: Inspection End.
    • NG: GO TO  2.
  2. CHECK OPTICAL SENSOR SIGNAL GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect BCM connector and optical sensor connector.
    3. Check continuity (open circuit) between BCM harness connector M18 terminal 18 (P) and optical sensor harness connector M402 terminal 3 (P).
      • 18 (P) 3 (P): Continuity should exist.
    4. Check continuity (short circuit) between BCM harness connector M18 terminal 18 (P) and ground.
      • 18 (P) - Ground: Continuity should not exist.

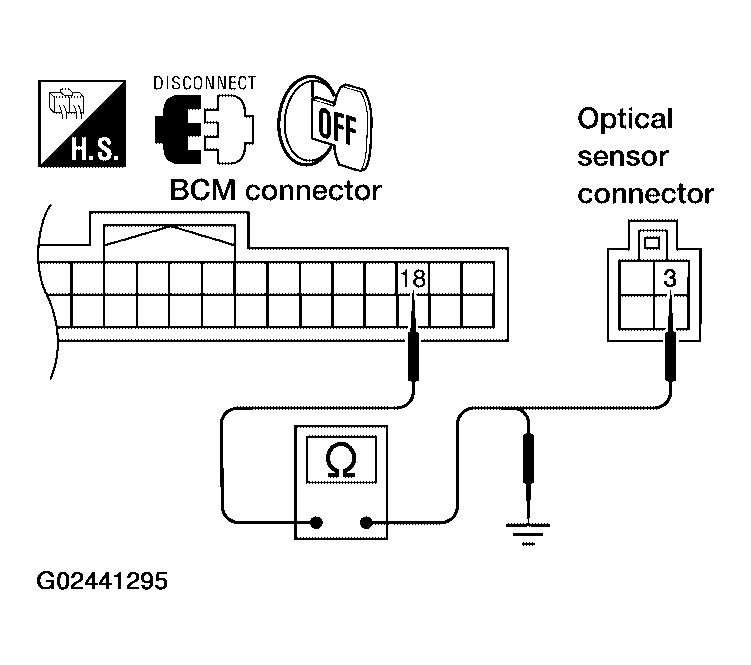

    Fig 2: Checking Optical Sensor Signal Ground Circuit
    G02441295Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO  3.
    • NG: Repair harness or connector.
  3. CHECK OPTICAL SENSOR SIGNAL CIRCUIT
    1. Check continuity (open circuit) between BCM harness connector M18 terminal 58 (W/R) and optical sensor harness connector M402 terminal 4 (W/R).
      • 58 (W/R) - 4 (W/R): Continuity should exist.
    2. Check continuity (short circuit) between BCM harness connector M19 terminal 14 (W/R) and ground.
      • 58 (W/R) - Ground: Continuity should not exist.

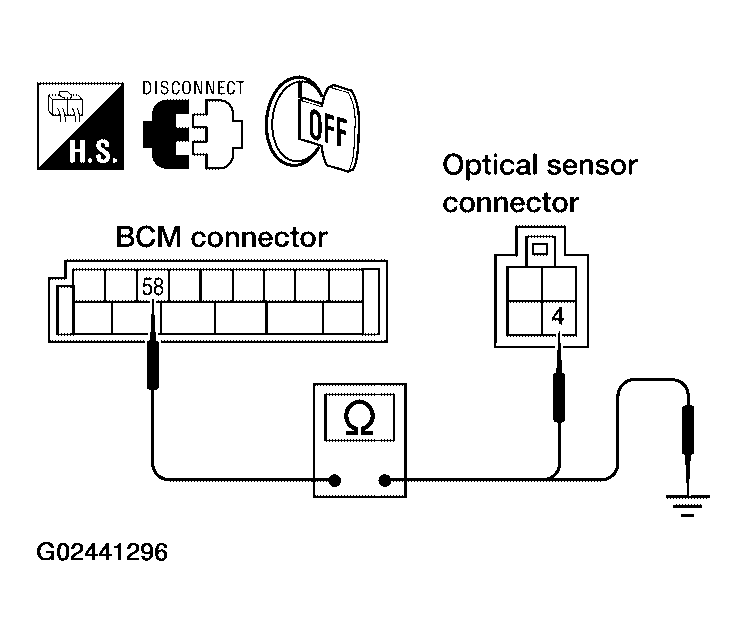

    Fig 3: Checking Optical Sensor Signal Circuit
    G02441296Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG
