Cross-Sectional View

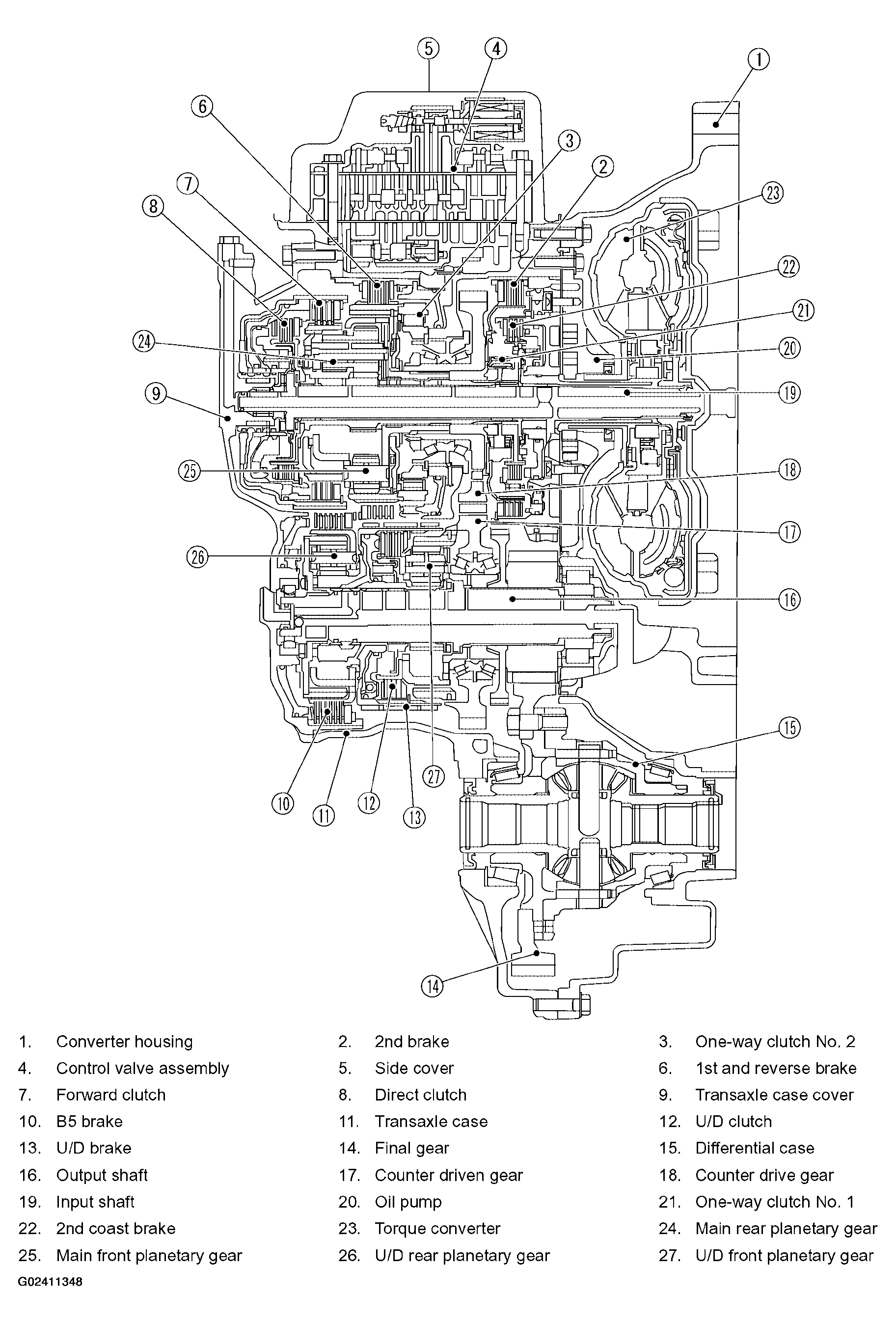

Fig 1: Cross-Sectional View Of Automatic Transaxle
Courtesy of NISSAN MOTOR CO., U.S.A.
