DTC P0826: Manual Mode Switch Circuit
>>
CONSULT-II Reference Value in Data Monitor Mode
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CONSULT-II Reference Value in Data Monitor Mode

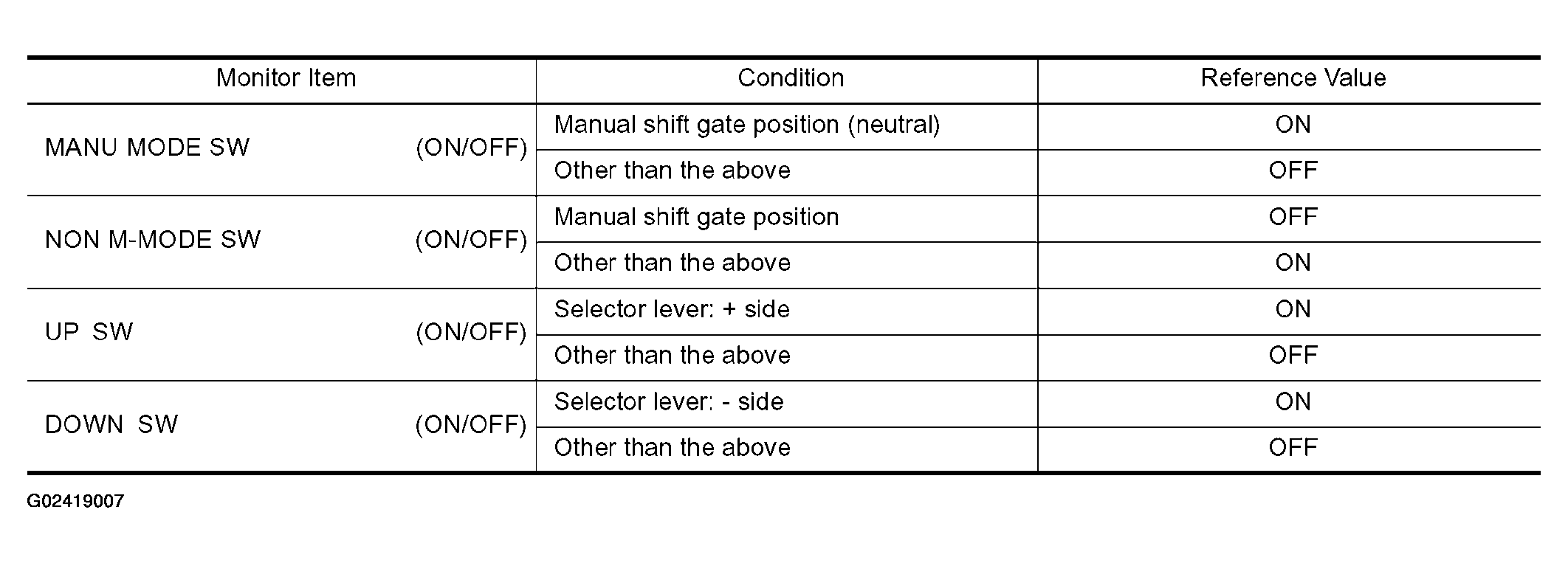

Fig 1: Monitor Item Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
