Driving Pattern A

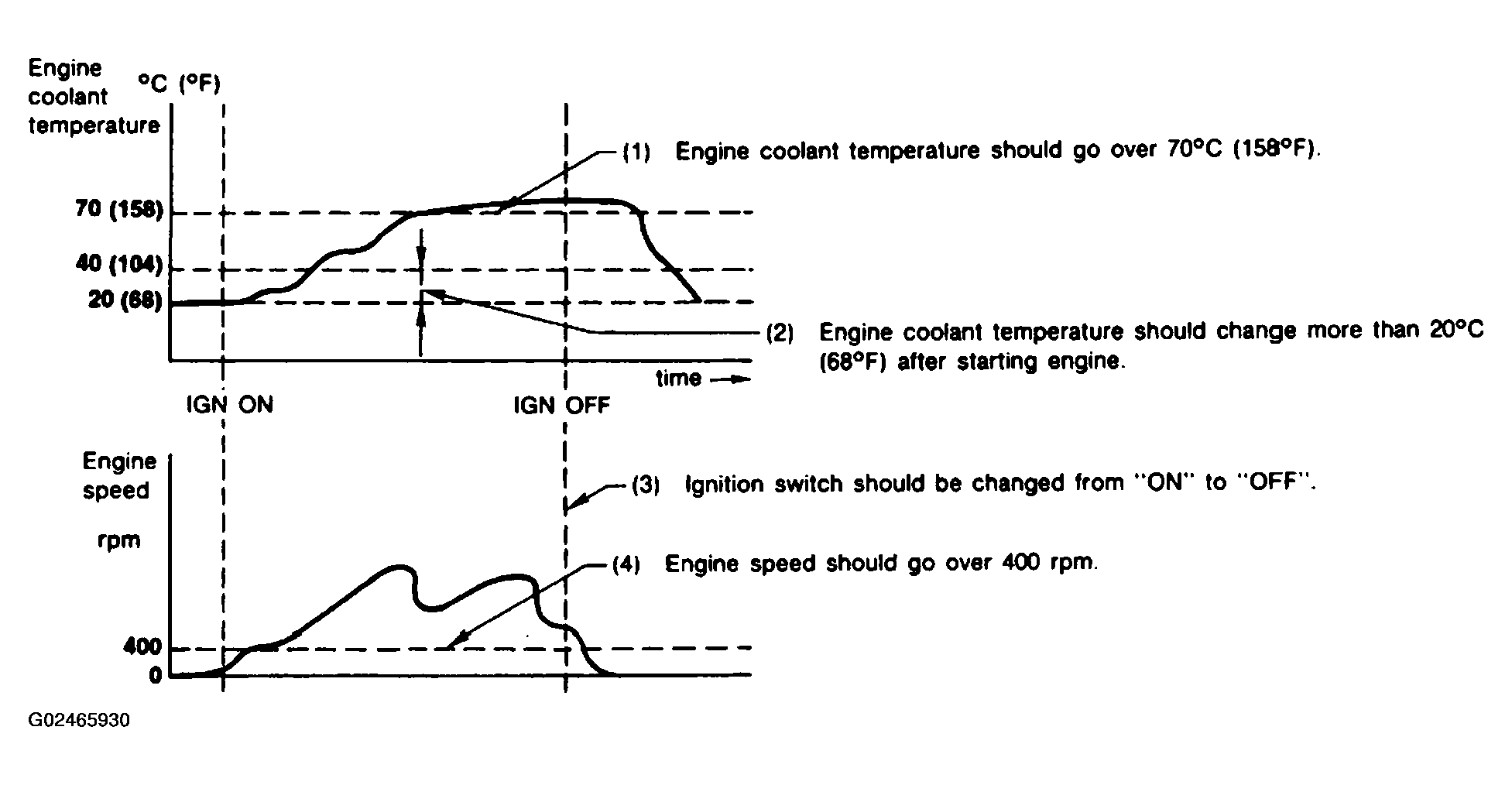

Fig 1: Explanation For Driving Patterns, Except For Misfire Exhaust Quality Deterioration, Fuel Injection System Chart
- The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
- The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
- The DTC will not be displayed after the A counter reaches 40 (*2 in OBD SYSTEM OPERATION CHART).
