Diagnostic Procedure

CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.

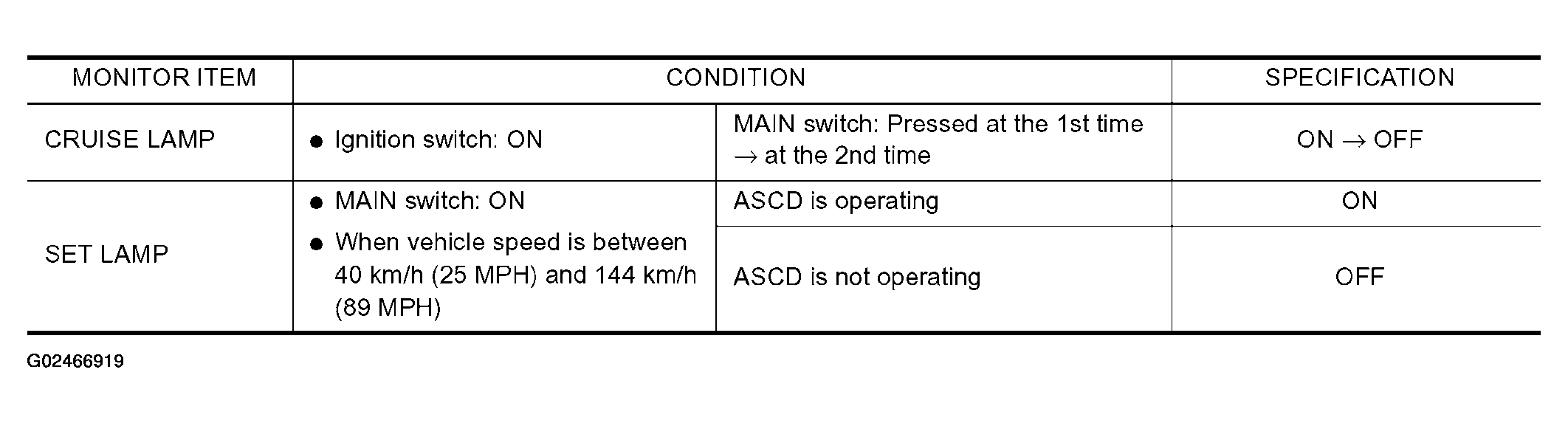

Fig 1: Monitor Item Condition
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: INSPECTION END
- NG: GO TO 2.
CHECK DTC
Check that DTC U1000 or U1001 is not displayed.

OK or NG
- OK: GO TO 3.
- NG: Perform trouble diagnoses for DTC U1000, U1001. refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".
CHECK DTC WITH "UNIFIED METER AND A/C AMP."
Refer to "SELF-DIAGNOSTIC RESULTS ".

OK or NG
- OK: GO TO 4.
- NG: Go to "CONSULT-II FUNCTION (METER A/C AMP) ".
CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
- INSPECTION END
