With CONSULT-II

  1. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
  2. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
  3. Start engine and warm it up to normal operating temperature.
  4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
  5. Select "IDLE AIR VOL LEARN" in "WORK SUPPORT" mode.

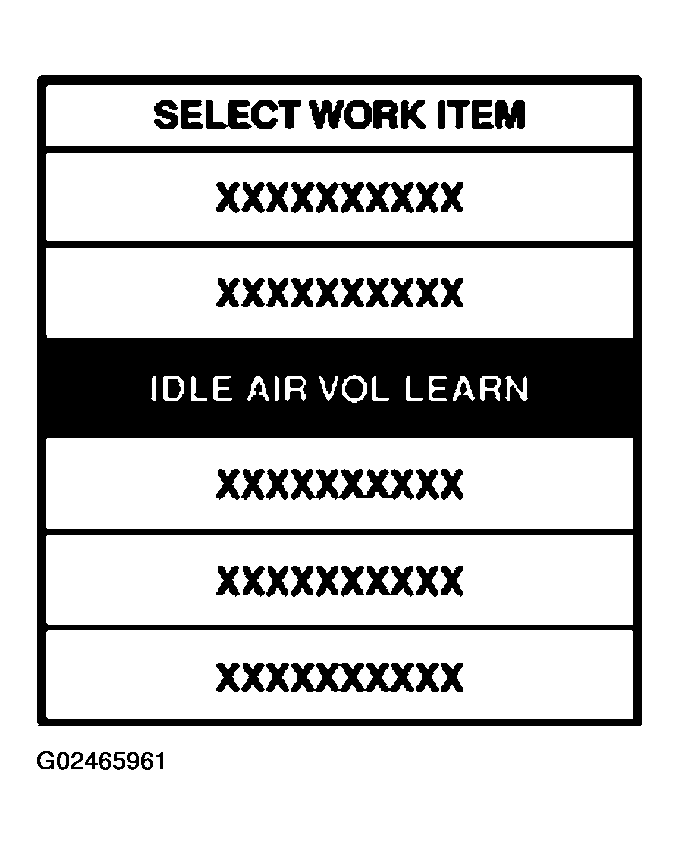

    Fig 1: CONSULT-II Display - SELECT WORK ITEM, IDLE AIR VOL LEARN
    G02465961Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "START" and wait 20 seconds.
  7. Make sure that "CMPLT" is displayed on CONSULT-II screen. If "CMPLT" is not displayed, Idle Air Volume Learning will not be carried out successfully. In this case, find the cause of the incident by referring to the Diagnostic Procedure below.
    Fig 2: CONSULT-II Display - WORK SUPPORT, IDLE AIR VOL LEARN
    G02465962Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.
    IDLE SPEED AND IGNITION TIMING SPECIFICATIONS

    ITEM SPECIFICATION
    Idle speed 650 +/- 50 RPM (in P or N position)
    Ignition timing 15 +/- 5° BTDC (in P or N position)

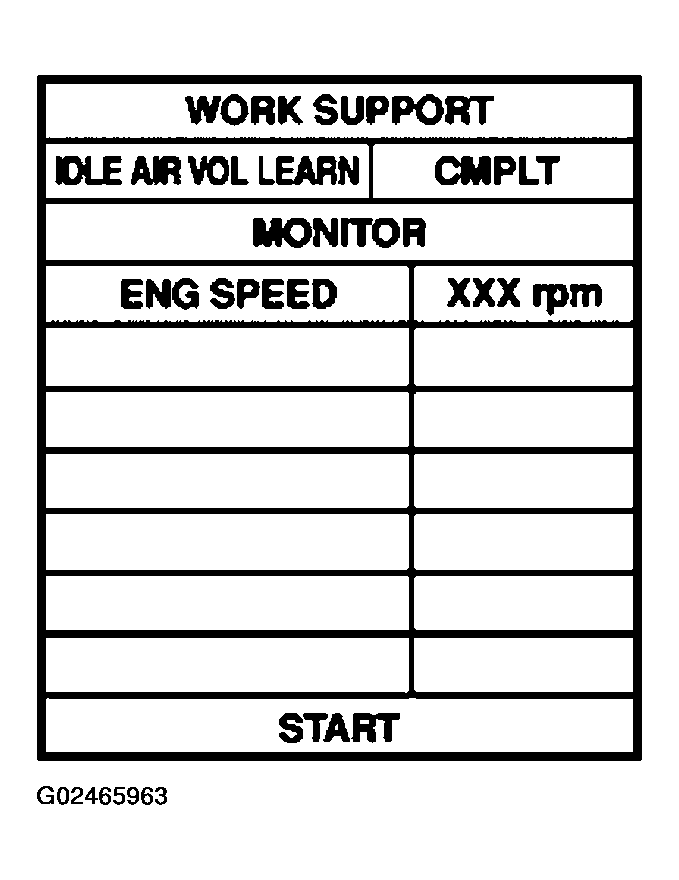

    Fig 3: CONSULT-II Display - WORK SUPPORT, IDLE AIR VOL LEARN
    G02465963Courtesy of NISSAN MOTOR CO., U.S.A.
