With Consult-II

  1. Turn ignition switch OFF and wait at least 10 seconds.
  2. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and wait at least 40 seconds.

    If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE

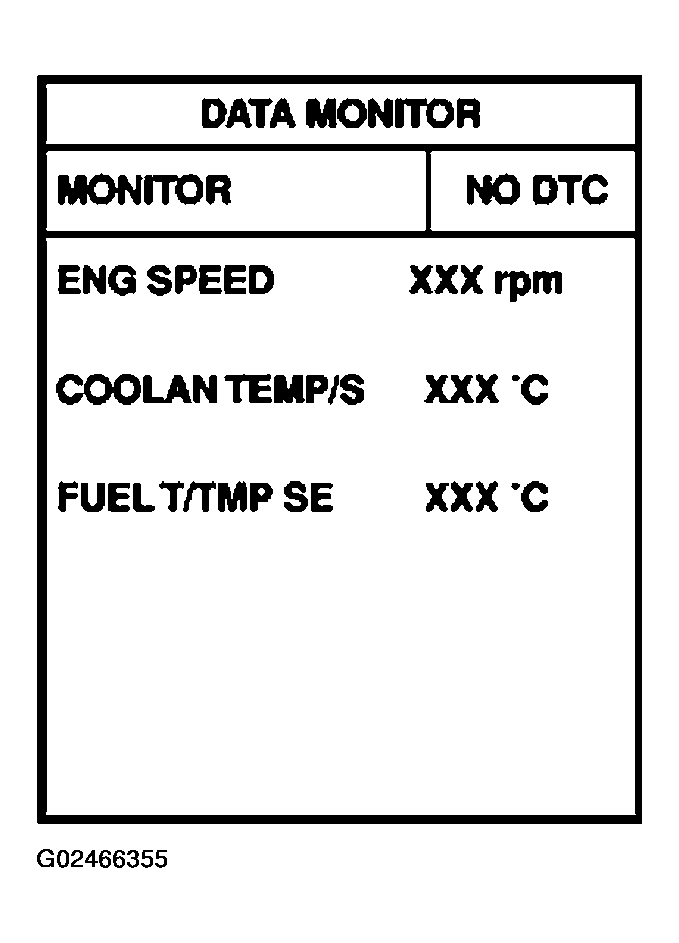

    Fig 1: CONSULT-II Data Monitor Screen
    G02466355Courtesy of NISSAN MOTOR CO., U.S.A.
