ASCD Brake Switch

  1. Turn ignition switch OFF.
  2. Disconnect ASCD brake switch harness connector.
  3. Check continuity between ASCD brake switch terminals 1 and 2 under the following conditions.
    CONTINUITY REFERENCE

    CONDITION Continuity
    When brake pedal is fully released. Should exist.
    When brake pedal is depressed. Should not exist.

    If NG, adjust ASCD brake switch installation, refer to BRAKE PEDAL and perform step  3 again.

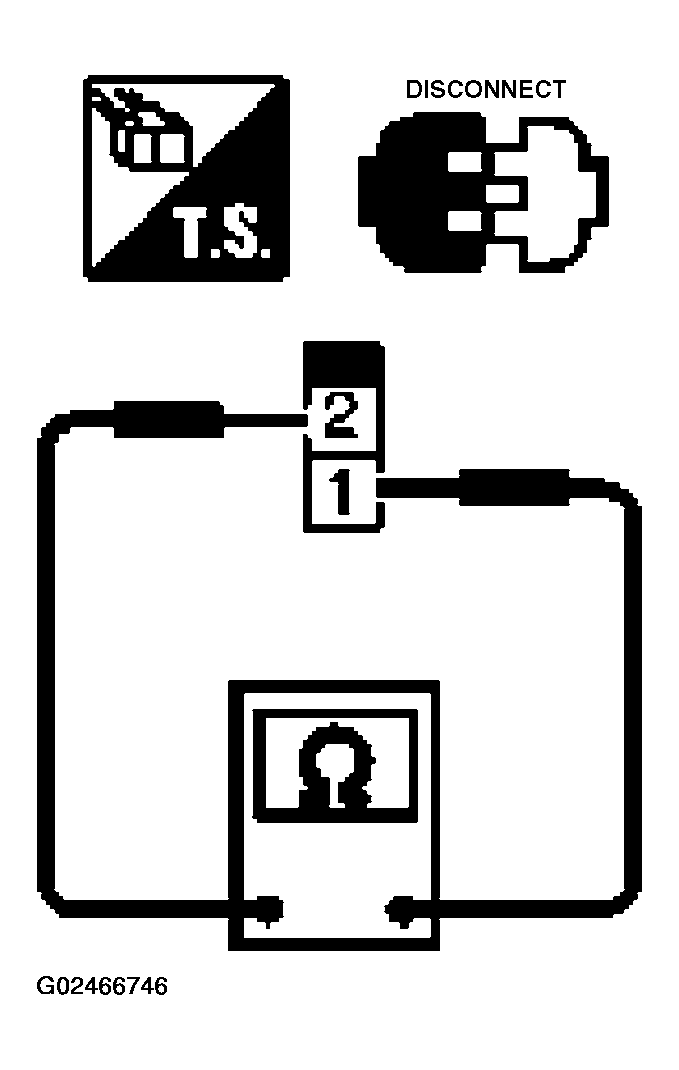

    Fig 1: Checking Continuity Between ASCD Brake Switch Terminals
    G02466746Courtesy of NISSAN MOTOR CO., U.S.A.
