With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.
    VOLTAGE REFERENCE

    Condition (Gear position) Voltage V (Known good data)
    P or N position Approx. 0
    Except the above position BATTERY VOLTAGE (11 - 14 V)
  3. If NG, go to DIAGNOSTIC PROCEDURE .

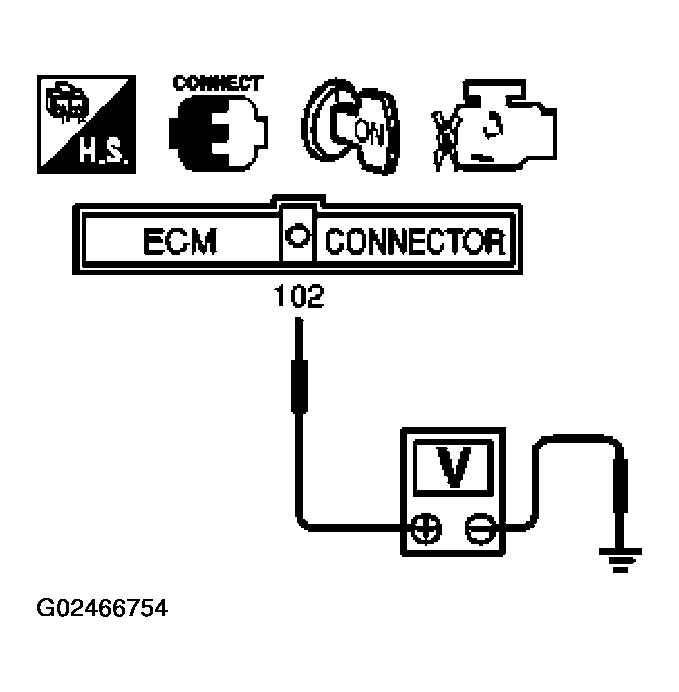

    Fig 1: Checking Voltage Between ECM Terminal (PNP Switch Signal) & Ground
    G02466754Courtesy of NISSAN MOTOR CO., U.S.A.
