Accelerator Pedal Position Sensor

Reconnect all harness connectors disconnected.
Turn ignition switch ON.
Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground under the following conditions.

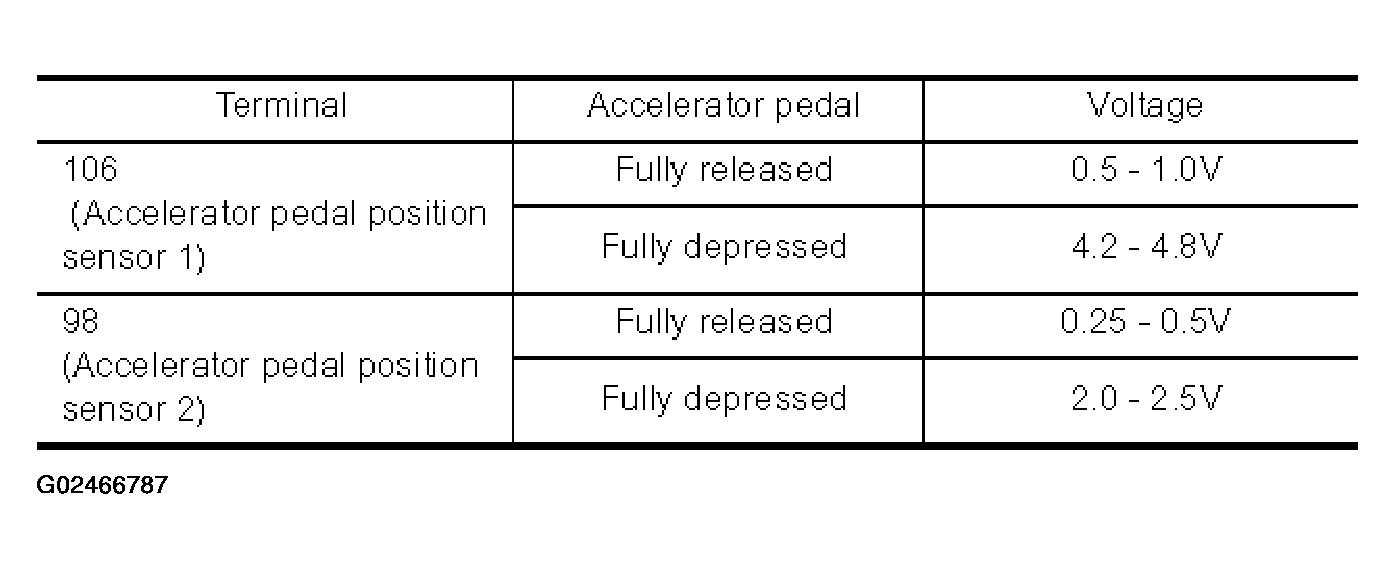

Fig 1: Terminal Voltage Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

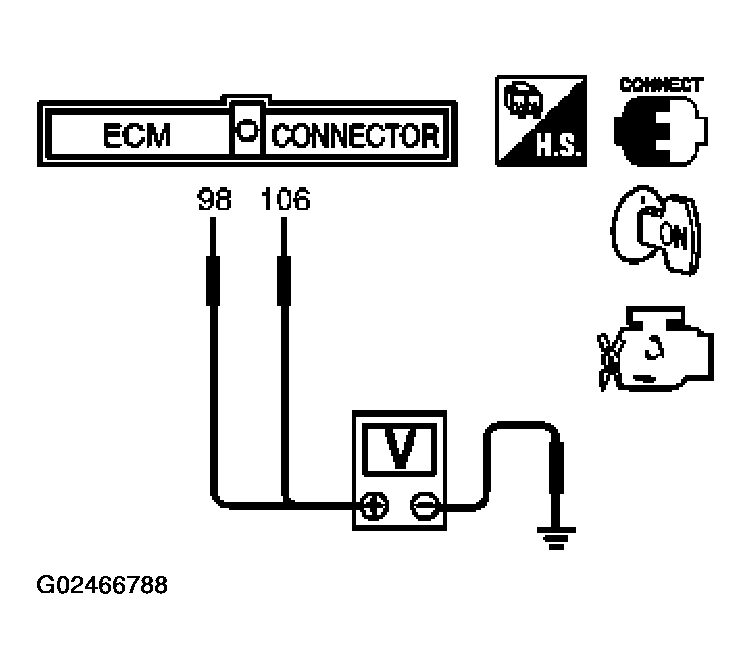

Fig 2: Checking Voltage Between ECM Terminals 106, 98 (APP Sensor 2 Signal) & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace accelerator pedal assembly and go to next step.
Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
Perform THROTTLE VALVE CLOSED POSITION LEARNING .
Perform IDLE AIR VOLUME LEARNING .
