Diagnostic Procedure

  1. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
    1. Turn ignition switch ON.
    2. Connect CONSULT-II and select "DATA MONITOR" mode.
    3. Select "LOAD SIGNAL" and check indication under the following conditions.
    Fig 1: CONSULT-II Data Monitor Screen
    G02466901Courtesy of NISSAN MOTOR CO., U.S.A.
    INDICATION REFERENCE

    CONDITION Indication
    Rear window defogger switch ON ON
    Rear window defogger switch OFF OFF

    OK or NG

    • OK: GO TO 2.
    • NG: GO TO  4.
  2. CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II

    Check "LOAD SIGNAL" indication under the following conditions.

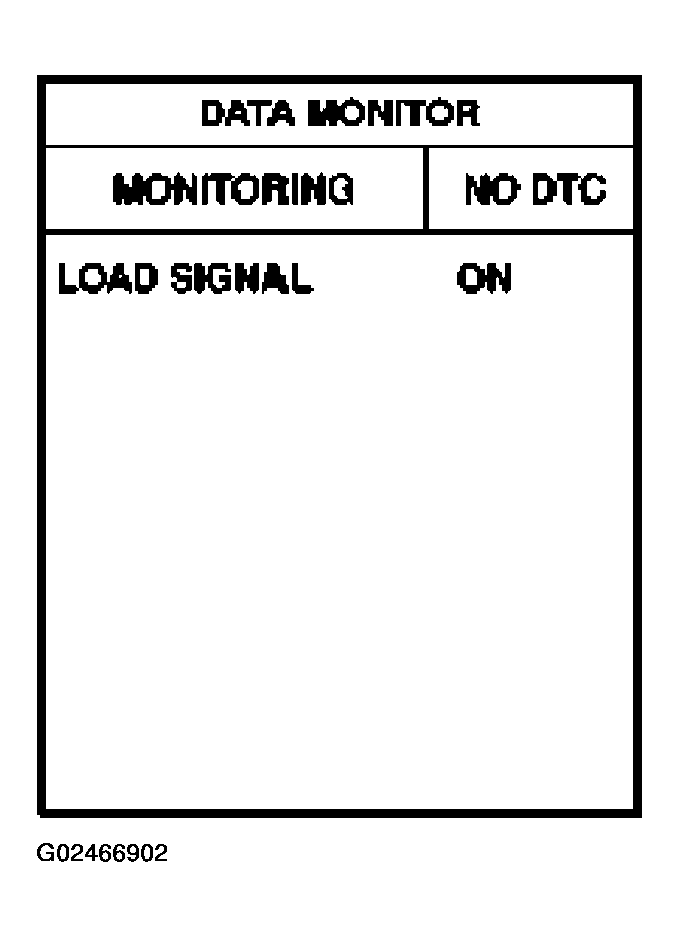

    Fig 2: CONSULT-II Data Monitor Screen
    G02466902Courtesy of NISSAN MOTOR CO., U.S.A.
    INDICATION REFERENCE

    CONDITION Indication
    Lighting switch ON at 2nd position ON
    Lighting switch OFF OFF

    OK or NG

    • OK: INSPECTION END
    • NG: GO TO 4.
  3. CHECK REAR WINDOW DEFOGGER SYSTEM

    Refer to "REAR WINDOW DEFOGGER ".

    • INSPECTION END
  4. CHECK HEADLAMP SYSTEM

    Refer to "HEADLAMP - XENON TYPE - " or "HEADLAMP-CONVENTIONAL TYPE- ".

    • INSPECTION END
