System Description
Courtesy of NISSAN MOTOR CO., U.S.A.

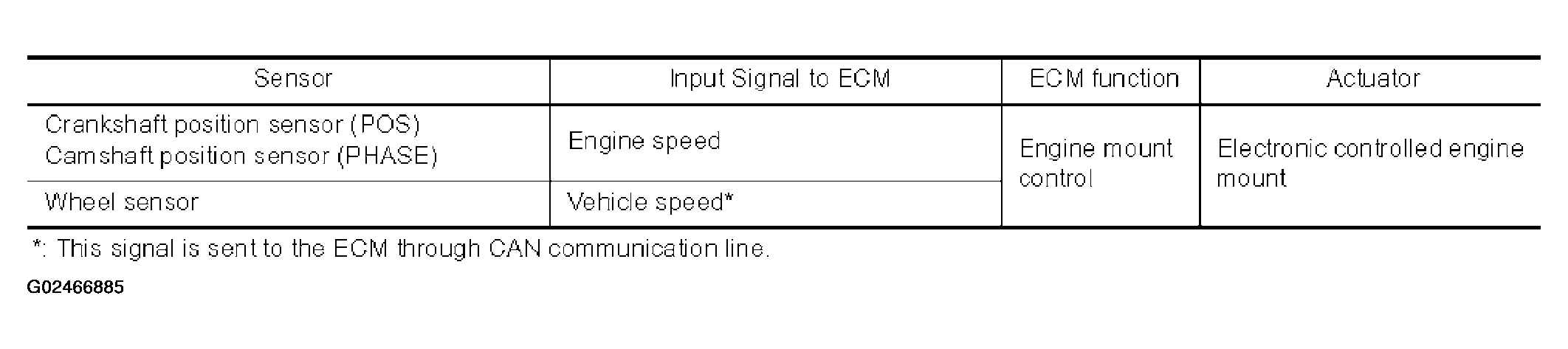

The ECM controls the engine mount operation corresponding to the engine speed and the vehicle speed. The control system has 2-step control [Soft/Hard]
ENGINE MOUNT CONTROL AND VEHICLE CONDITION
| Vehicle condition |
Engine mount control |
| Idle (with vehicle stopped) |
Soft |
| Except above conditions |
Hard |
