With GST

  1. Turn ignition switch ON.
  2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the conditions listed in ECM TERMINAL 102 VOLTAGE SPECIFICATION .
    ECM TERMINAL 102 VOLTAGE SPECIFICATION

    Condition (Gear position) Voltage V (Known-good data)
    P or N position Approx. 0
    Except above position BATTERY VOLTAGE (11 - 14V)

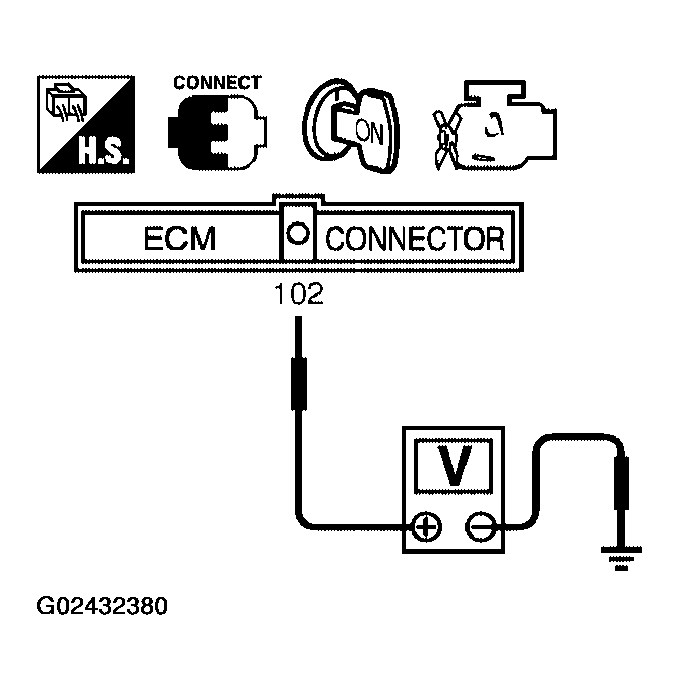

    Fig 1: Checking Voltage Between ECM Connector Terminal 102 (PNP Switch Signal) And Ground
    G02432380Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, go to DIAGNOSTIC PROCEDURE .
