Stop Lamp Switch

  1. Turn ignition switch OFF.
  2. Disconnect stop lamp switch harness connector.
  3. Check harness continuity between stop lamp switch terminals 1 and 2 under the conditions listed in STOP LAMP SWITCH DIAGNOSTIC CONDITIONS  table.
    STOP LAMP SWITCH DIAGNOSTIC CONDITIONS

    Condition Continuity
    When brake pedal is fully released. Should not exist.
    When brake pedal is slightly depressed. Should exist.

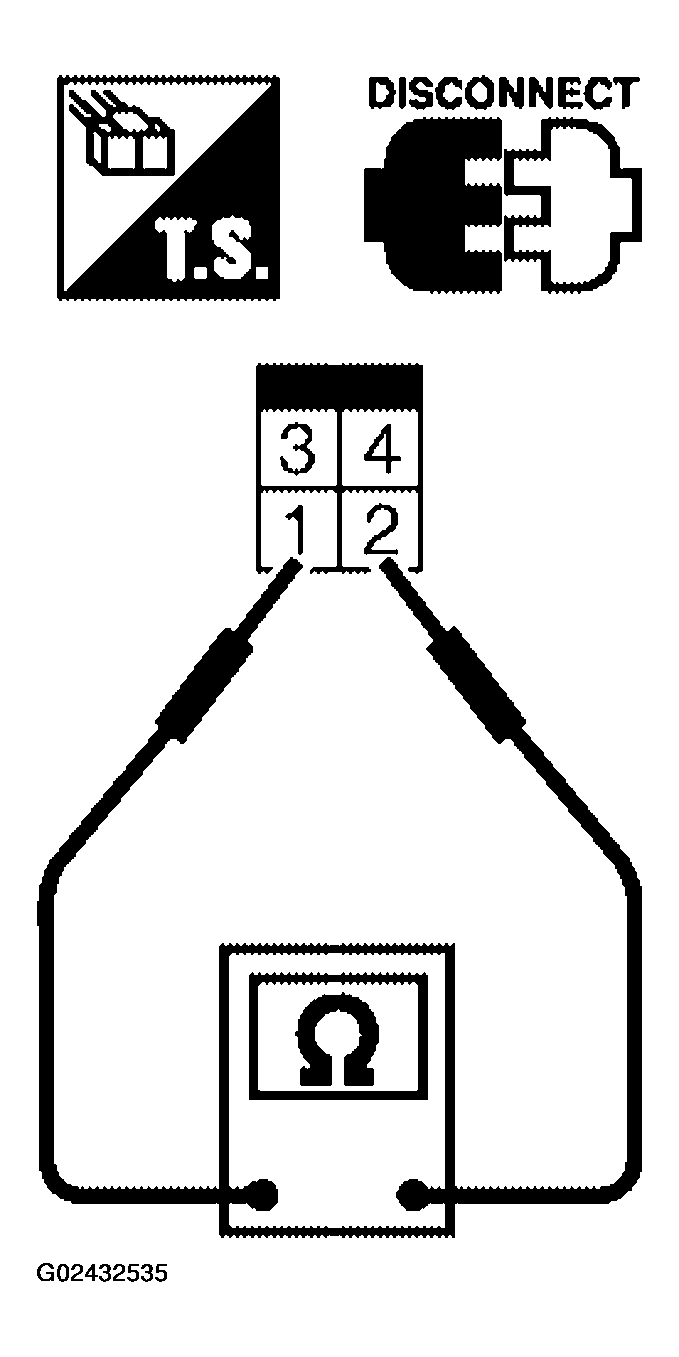

    Fig 1: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
    G02432535Courtesy of NISSAN MOTOR CO., U.S.A.

    If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL , and perform step 3 again.
