Basic Inspection

  1. INSPECTION START
    1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for scheduled maintenance.
    2. Open engine hood and check the following:
      • Harness connectors for improper connections
      • Wiring harness for improper connections, pinches and cut
      • Vacuum hoses for splits, kinks and improper connections
      • Hoses and ducts for leaks
      • Air cleaner clogging
      • Gasket

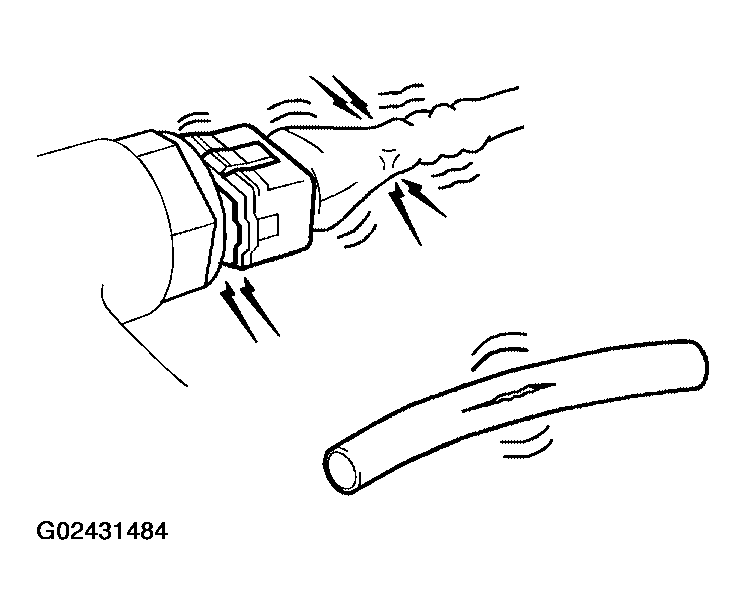

      Fig 1: Checking Harness Connectors And Wiring Harness For Improper Connections
      G02431484Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Confirm that electrical or mechanical loads are not applied.
      • Headlamp switch is OFF.
      • Air conditioner switch is OFF.
      • Rear window defogger switch is OFF.
      • Steering wheel is in the straight-ahead position, etc.
    4. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.

      Ensure engine stays below 1, 000 rpm.

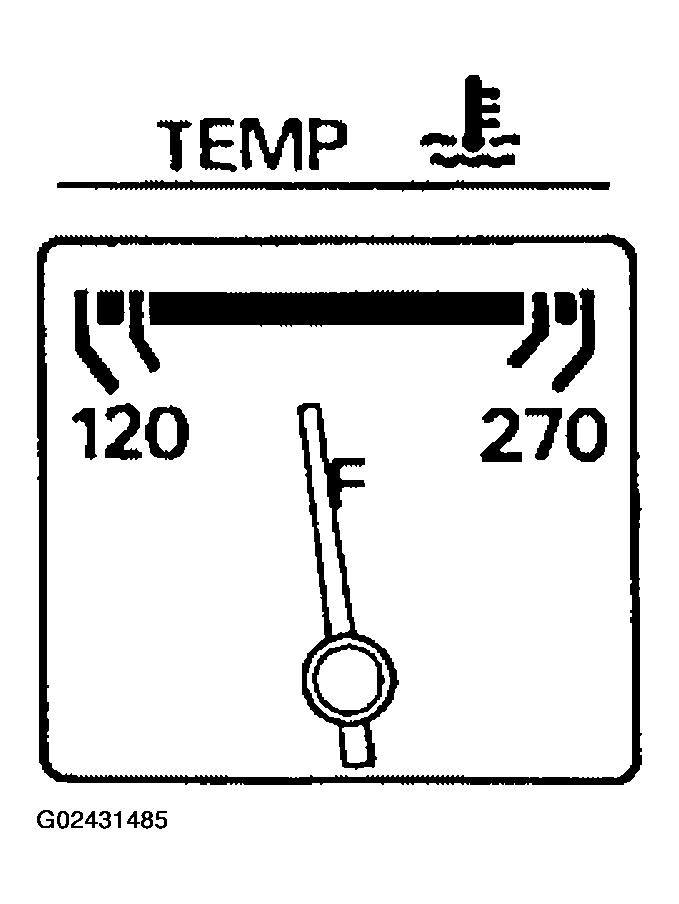

      Fig 2: Identifying Engine Coolant Temperature Indicator
      G02431485Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Run engine at about 2, 000 rpm for about 2 minutes under no-load.
    6. Make sure that no DTC is displayed with CONSULT-II or GST.

    OK or NG

    • OK: GO TO  3.
    • NG: GO TO 2.

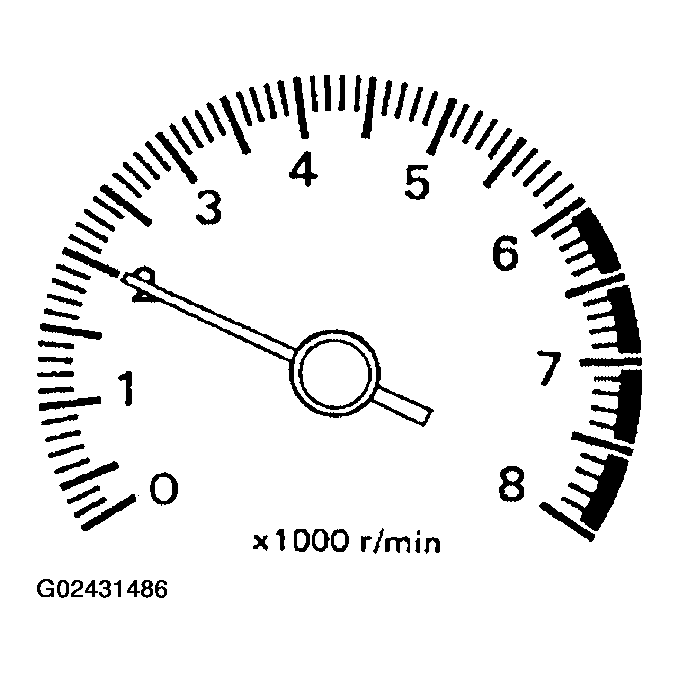

    Fig 3: Identifying Tachometer Display (2, 000 RPM)
    G02431486Courtesy of NISSAN MOTOR CO., U.S.A.
  2. REPAIR OR REPLACE

    Repair or replace components as necessary according to corresponding Diagnostic Procedure.

    • GO TO 3.
  3. CHECK TARGET IDLE SPEED

    With CONSULT-II

    1. Run engine at about 2, 000 rpm for about 2 minutes under no-load.
    2. Rev engine (2, 000 to 3, 000 rpm) two or three times under no-load, then run engine at idle speed for about 1 minute.

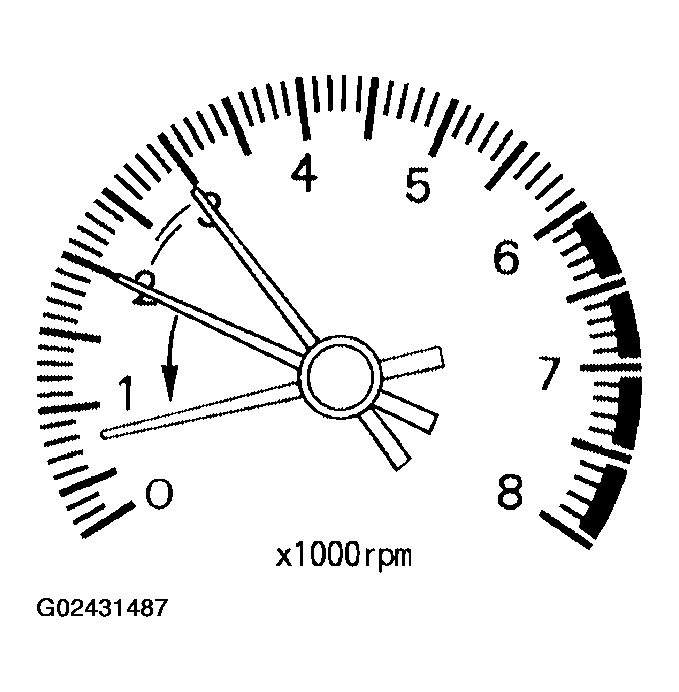

      Fig 4: Identifying Tachometer Display
      G02431487Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Read idle speed in "DATA MONITOR" mode with CONSULT-II. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      • 625 +/- 50 rpm (in P or N position)

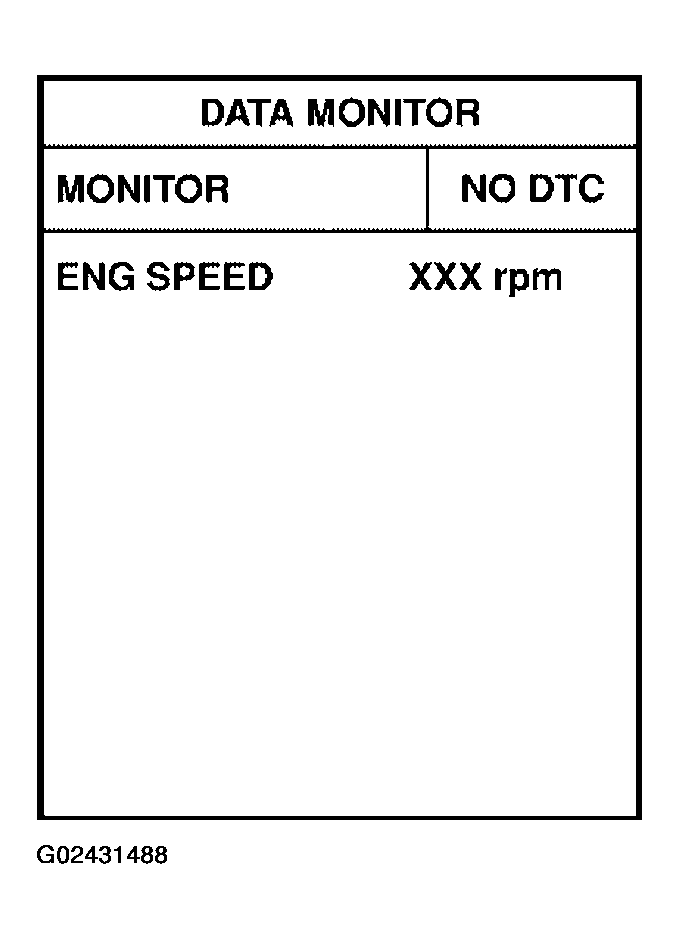

      Fig 5: CONSULT-II Display - DATA MONITOR
      G02431488Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    1. Run engine at about 2, 000 rpm for about 2 minutes under no-load.
    2. Rev engine (2, 000 to 3, 000 rpm) two or three times under no-load, then run engine at idle speed for about 1 minute.
    3. Check idle speed. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      • 625 +/- 50 rpm (in P or N position)

    OK or NG

    • OK: GO TO  9.
    • NG: GO TO 4.
  4. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
    1. Stop engine.
    2. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
      • GO TO 5.
  5. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

    Perform THROTTLE VALVE CLOSED POSITION LEARNING .

    • GO TO 6.
  6. PERFORM IDLE AIR VOLUME LEARNING

    Refer to IDLE AIR VOLUME LEARNING .

    Is Idle Air Volume Learning carried out successfully?

    Yes or No

    • Yes: GO TO 7.
    • No:
      1. Follow the instruction of Idle Air Volume Learning.
      2. GO TO  4.
  7. CHECK TARGET IDLE SPEED AGAIN

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Read idle speed in "DATA MONITOR" mode with CONSULT-II. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      • 625 +/- 50 rpm (in P or N position)

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Check idle speed.

      Refer to IDLE SPEED AND IGNITION TIMING CHECK .

      • 625 +/- 50 rpm (in P or N position)

    OK or NG

    • OK: GO TO  10.
    • NG: GO TO 8.

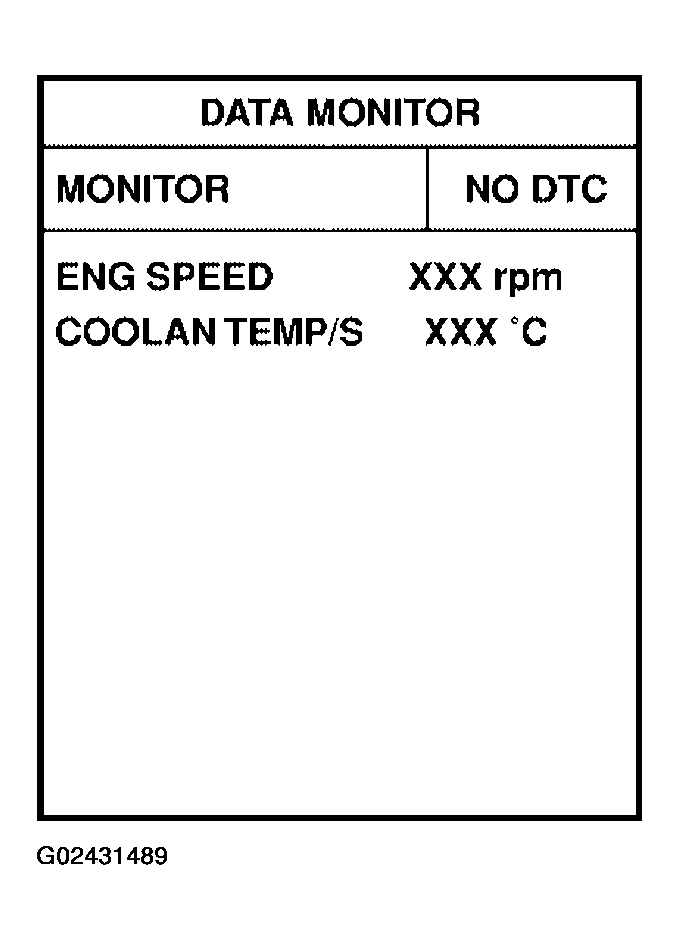

    Fig 6: CONSULT-II Display - Data Monitor
    G02431489Courtesy of NISSAN MOTOR CO., U.S.A.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    OK or NG

    • OK: GO TO 9.
    • NG:
      1. Repair or replace.
      2. GO TO  4.
  9. CHECK ECM FUNCTION
    1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
    2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS) .
      • GO TO 4.
  10. CHECK IGNITION TIMING
    1. Run engine at idle.
    2. Check ignition timing with a timing light. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      • 15 +/- 5° BTDC (in P or N position)  . Refer to Fig 7.

    OK or NG

    • OK: GO TO  19.
    • NG: GO TO 11.
    Fig 7: Checking Ignition Timing
    G02431490Courtesy of NISSAN MOTOR CO., U.S.A.
  11. PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
    1. Stop engine.
    2. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
      • GO TO 12.
  12. PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

    Perform THROTTLE VALVE CLOSED POSITION LEARNING .

    • GO TO 13.
  13. PERFORM IDLE AIR VOLUME LEARNING

    Refer to IDLE AIR VOLUME LEARNING .

    Is Idle Air Volume Learning carried out successfully?

    Yes or No

    • Yes: GO TO 14.
    • No:
      1. Follow the instruction of Idle Air Volume Learning.
      2. GO TO  4.
  14. CHECK TARGET IDLE SPEED AGAIN

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Read idle speed in "DATA MONITOR" mode with CONSULT-II. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      • 625 +/- 50 rpm (in P or N position)

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Check idle speed. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      • 625 +/- 50 rpm (in P or N position)

    OK or NG

    • OK: GO TO 15.
    • NG: GO TO  17.
    Fig 8: CONSULT-II Display - Data Monitor Mode
    G02431491Courtesy of NISSAN MOTOR CO., U.S.A.
  15. CHECK IGNITION TIMING AGAIN
    1. Run engine at idle.
    2. Check ignition timing with a timing light. Refer to IDLE SPEED AND IGNITION TIMING CHECK .
      • 15 +/- 5° BTDC (in P or N position)  . Refer to Fig 9.

    OK or NG

    • OK: GO TO  19.
    • NG: GO TO 16.

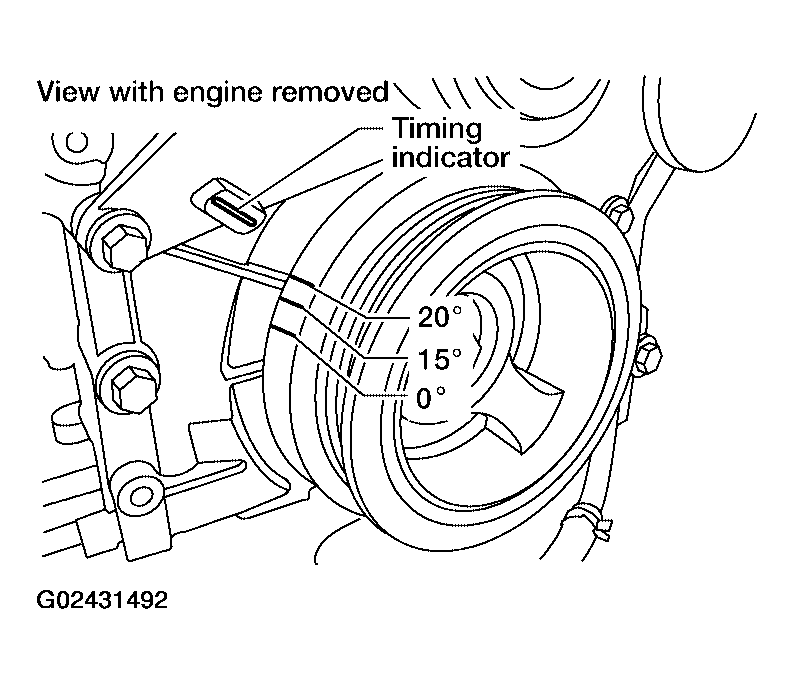

    Fig 9: Checking Ignition Timing
    G02431492Courtesy of NISSAN MOTOR CO., U.S.A.
  16. CHECK TIMING CHAIN INSTALLATION

    Check timing chain installation. Refer to TIMING CHAIN .

    OK or NG

    • OK: GO TO 17.
    • NG:
      1. Repair the timing chain installation.
      2. GO TO  4.
  17. DETECT MALFUNCTIONING PART

    Check the following.

    OK or NG

    • OK: GO TO 18.
    • NG:
      1. Repair or replace.
      2. GO TO  4.
  18. CHECK ECM FUNCTION
    1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
    2. Perform initialization of NVIS (NATS) system and registration of all NVIS (NATS) ignition key IDs. Refer to NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS) .
      • GO TO 4.
  19. INSPECTION END

    Did you replace the ECM, referring this Basic Inspection Procedure?

    Yes or No
