With CONSULT-II

Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
Perform THROTTLE VALVE CLOSED POSITION LEARNING .
Start engine and warm it up to normal operating temperature.
Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
Select "IDLE AIR VOL LEARN" in "WORK SUPPORT" mode.

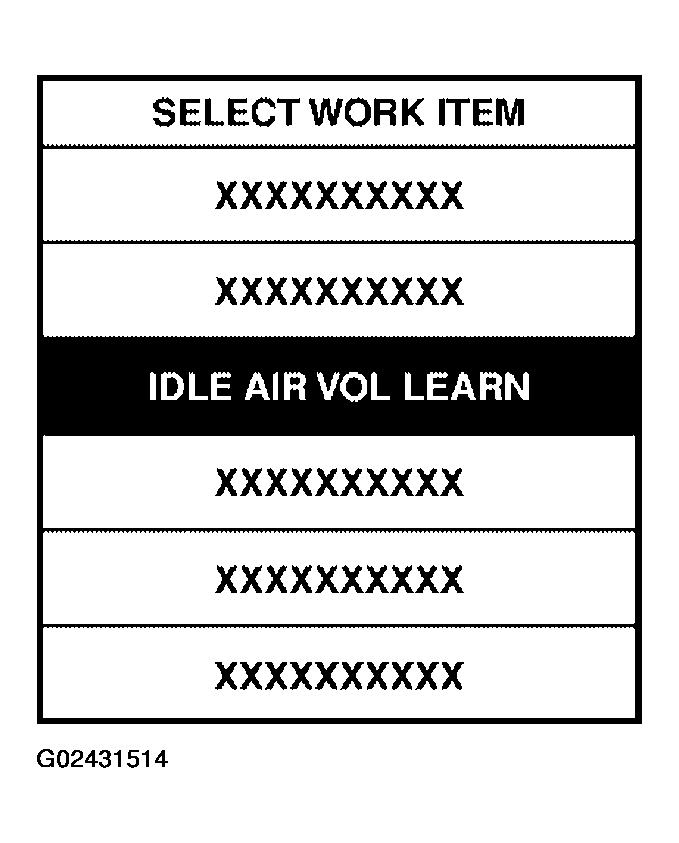

Fig 1: CONSULT-II Display - IDLE AIR VOL LEARN
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START" and wait 20 seconds.

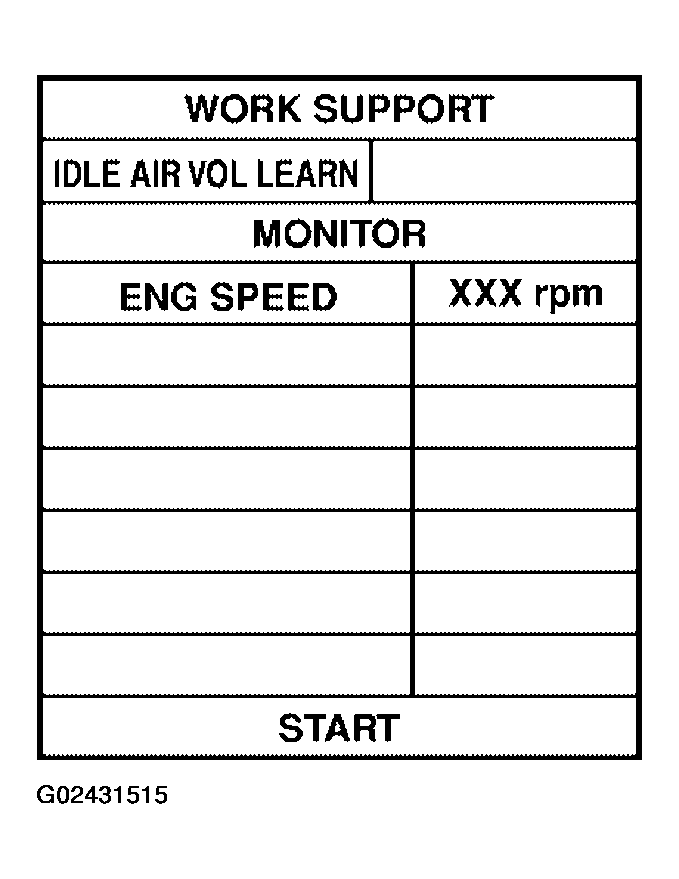

Fig 2: CONSULT-II Display - START
Courtesy of NISSAN MOTOR CO., U.S.A.

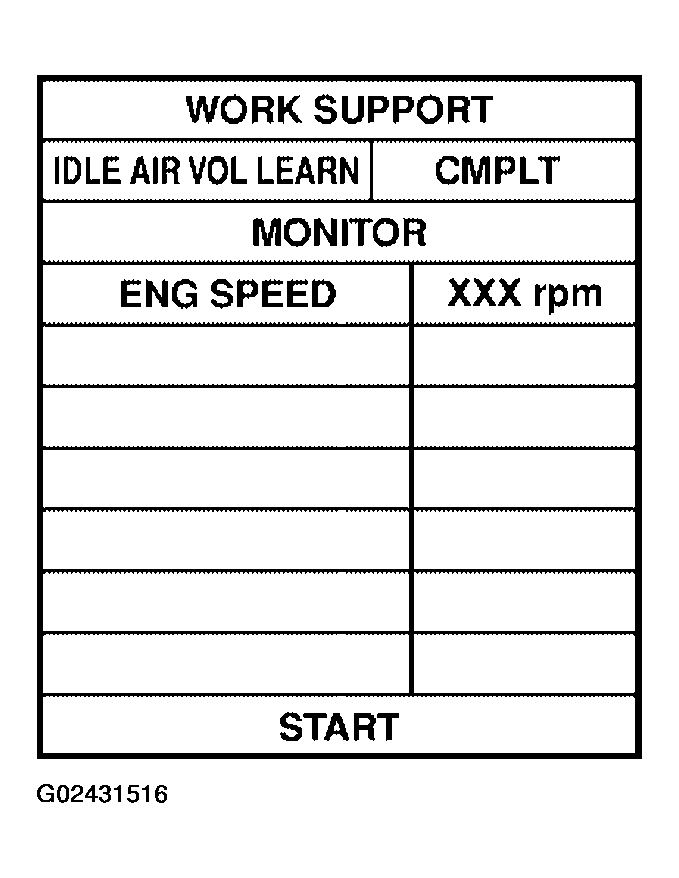

Make sure that "CMPLT" is displayed on CONSULT-II screen. If "CMPLT" is not displayed, Idle Air Volume Learning will not be carried out successfully. In this case, find the cause of the incident by referring to the Diagnostic Procedure below.

Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.

IDLE SPEED AND IGNITION TIMING SPECIFICATION

Item	SPECIFICATION
Idle speed	625 +/- 50 rpm (in P or N position)
Ignition timing	15 +/- 5° BTDC (in P or N position)

Fig 3: CONSULT-II Display - Work Support Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
