Method B

  1. Remove No. 4 ignition coil.

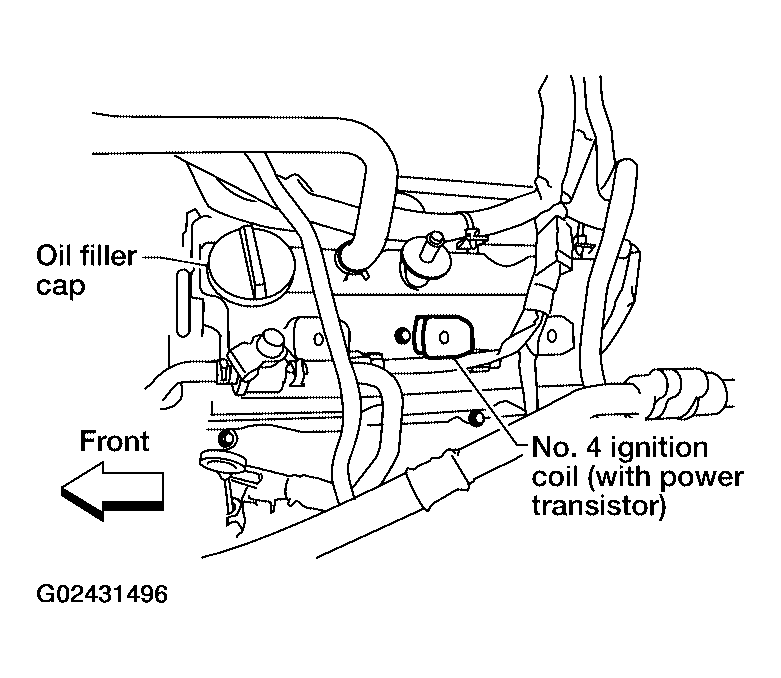

    Fig 1: Removing No. 4 Ignition Coil
    G02431496Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect No. 4 ignition coil and No. 4 spark plug with suitable high-tension wire as shown in Fig 2, and attach timing light clamp to this wire.

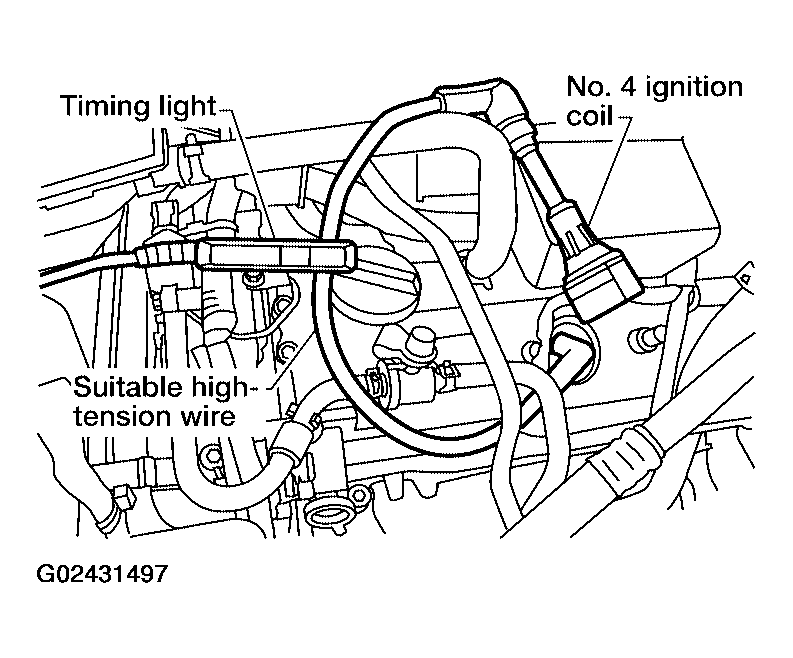

    Fig 2: Connecting No 4 Ignition Coil And No 4 Spark Plug With Suitable High-Tension Wire
    G02431497Courtesy of NISSAN MOTOR CO., U.S.A.

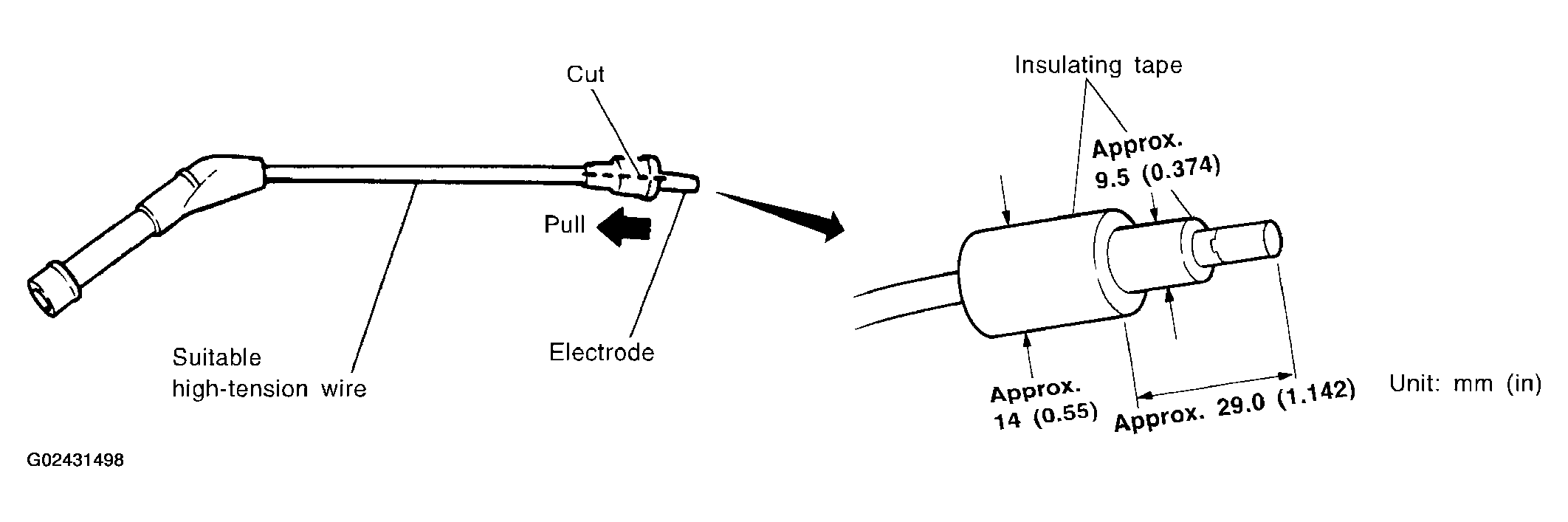

    Fig 3: Identifying Spark Plug Wire Electrode Dimensions
    G02431498Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

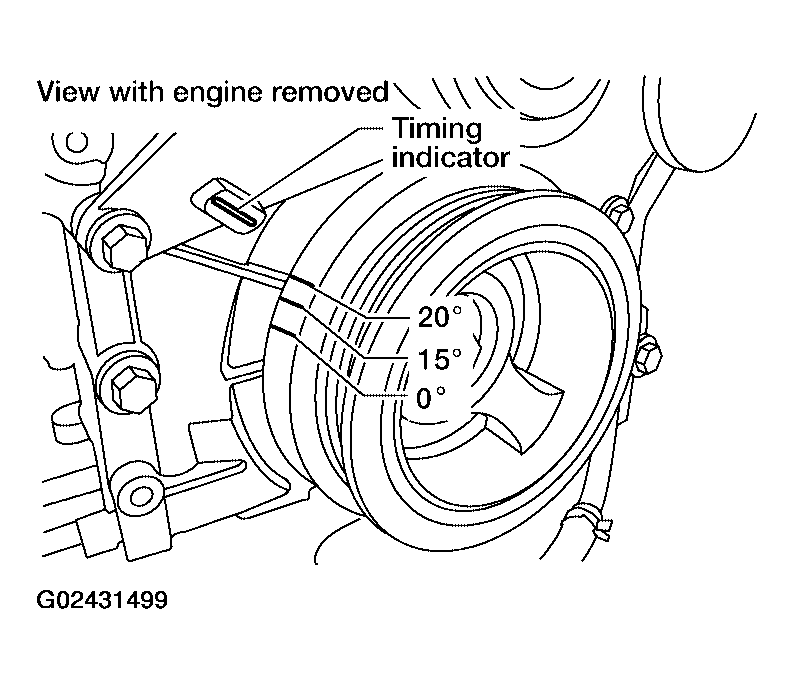

    Fig 4: Checking Ignition Timing
    G02431499Courtesy of NISSAN MOTOR CO., U.S.A.
