With CONSULT-II

  1. Check the VIN of the vehicle and note it. Refer to IDENTIFICATION INFORMATION .
  2. Turn ignition switch ON and engine stopped.
  3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.
  4. Follow the instruction of CONSULT-II display.

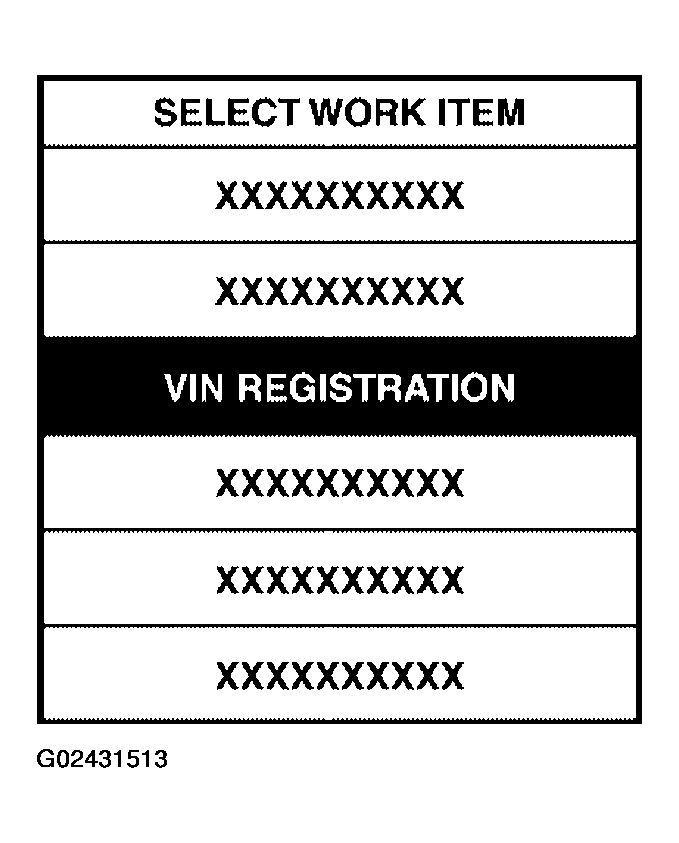

Fig 1: CONSULT-II Display - VIN REGISTRATION
G02431513Courtesy of NISSAN MOTOR CO., U.S.A.
