Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. Refer to GROUND INSPECTION .
      Fig 1: Locating Ground Screws Of Body
      G02431792Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 2.
    • NG: Repair or replace ground connections.
  2. CHECK DTC WITH COMBINATION METER

    Refer to COMBINATION METERS .

    OK or NG

  3. CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect "fuel level sensor unit and fuel pump" harness connector.
    3. Turn ignition switch ON.

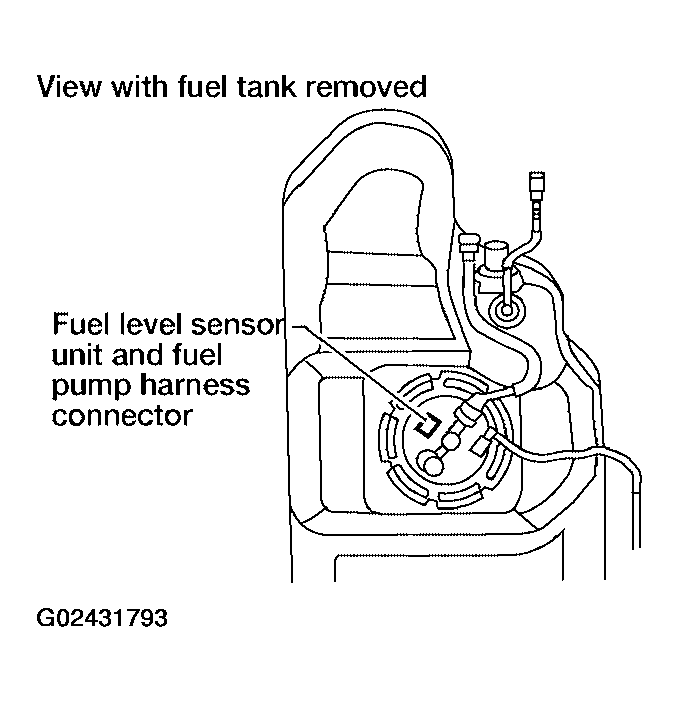

      Fig 2: Locating Fuel Level Sensor Unit And Fuel Pump Harness Connector
      G02431793Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between "fuel level sensor unit and fuel pump" terminal 4 and ground with CONSULT-II or tester.
      • Voltage: Approximately 5V

    OK or NG

    • OK: GO TO  5.
    • NG: GO TO 4.

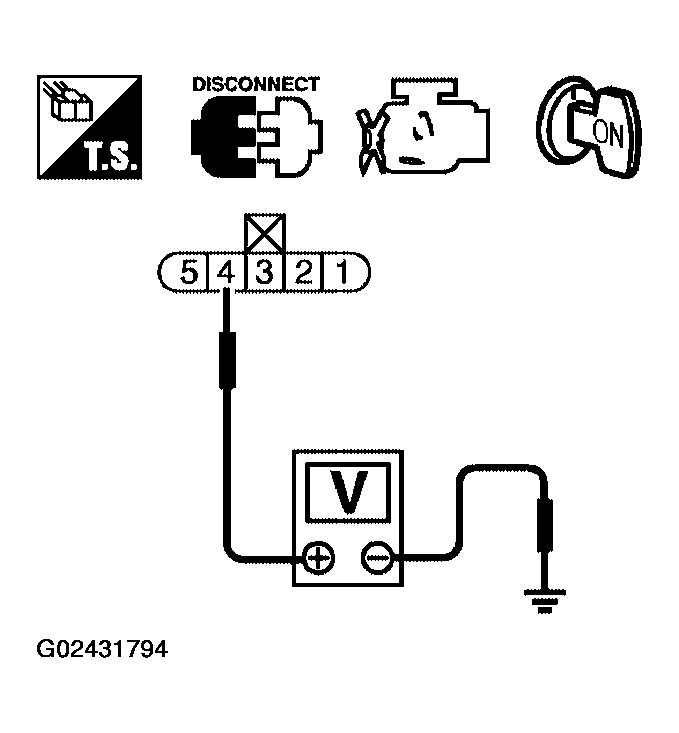

    Fig 3: Checking Voltage Between Fuel Level Sensor Unit And Fuel Pump Terminal 4 And Ground
    G02431794Courtesy of NISSAN MOTOR CO., U.S.A.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E41, C1
    • Harness for open or short between ECM and "fuel level sensor unit and fuel pump"
    • Repair harness or connector.
  5. CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect combination meter harness connector.
    3. Check harness continuity between "fuel level sensor unit and fuel pump" terminal 2 and combination meter terminal 9. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  7.
    • NG: GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E41, C1
    • Harness connectors E152, M31
    • Harness for open or short between "fuel level sensor unit and fuel pump" and combination meter
    • Repair open circuit or short to ground or short to power in harness or connector.
  7. CHECK FUEL TANK TEMPERATURE SENSOR

    Refer to COMPONENT INSPECTION .

    OK or NG

    • OK: GO TO 8.
    • NG: Replace fuel level sensor unit.
  8. CHECK INTERMITTENT INCIDENT

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    • : INSPECTION END
