CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

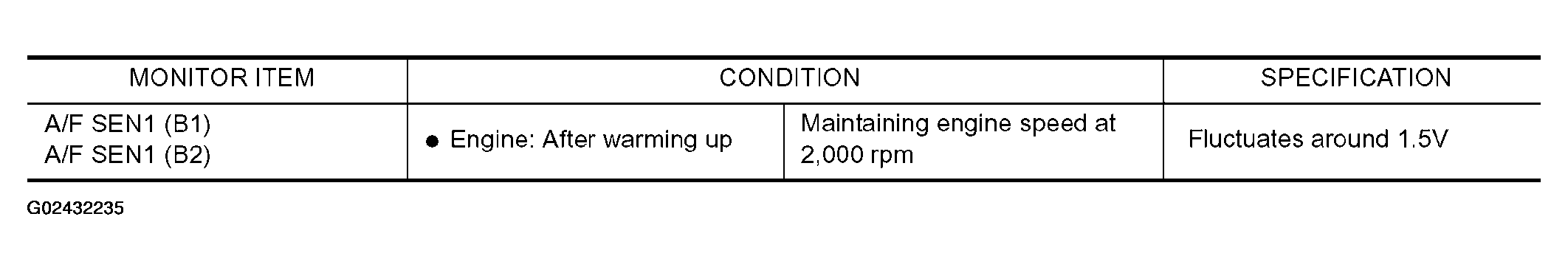

Fig 1: CONSULT-II Reference Value Chart - A/F Ratio Sensor 1, Bank 1 & Bank 2

Courtesy of NISSAN MOTOR CO., U.S.A.
