CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

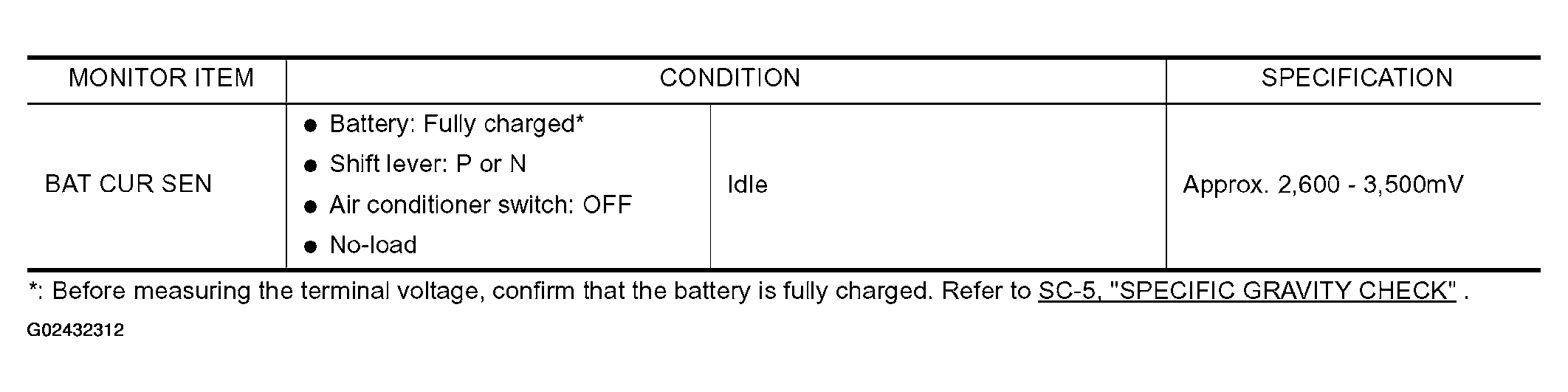

Fig 1: CONSULT-II Reference Value Chart - Battery Current Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

To check battery charge, refer to BATTERY .
