CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

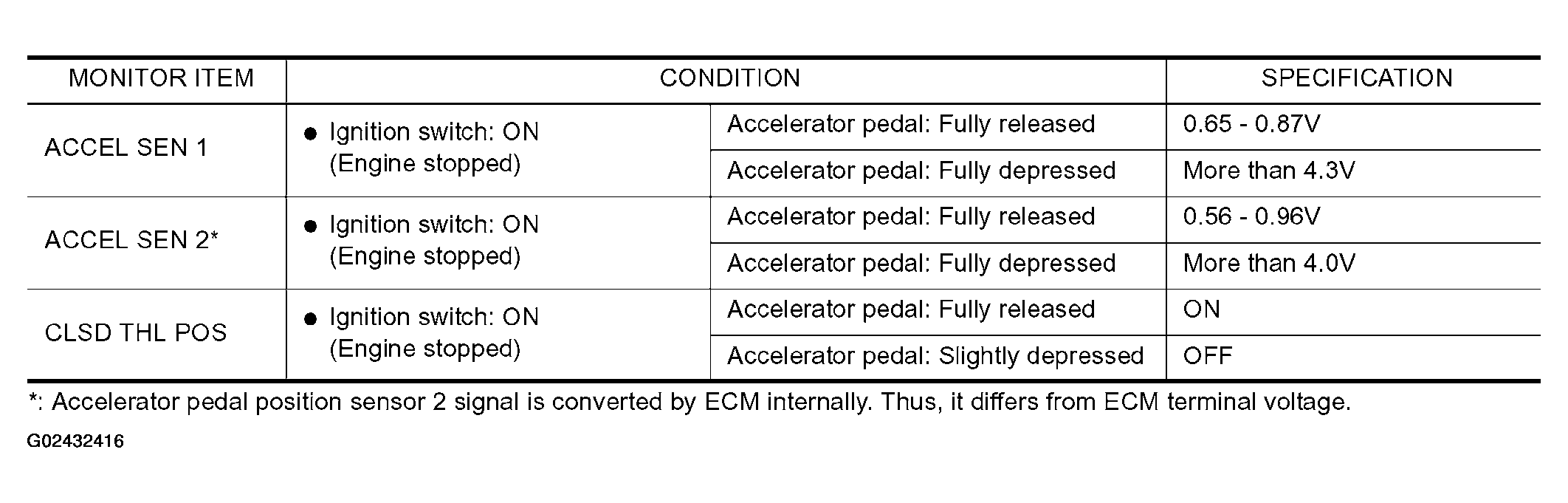

Fig 1: CONSULT-II Reference Value Chart - Accelerator Pedal Position Sensors

Courtesy of NISSAN MOTOR CO., U.S.A.

^* : Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
