Accelerator Pedal Position Sensor

  1. Reconnect all harness connectors disconnected.
  2. Turn ignition switch ON.
  3. Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground under the conditions listed in Fig 1.

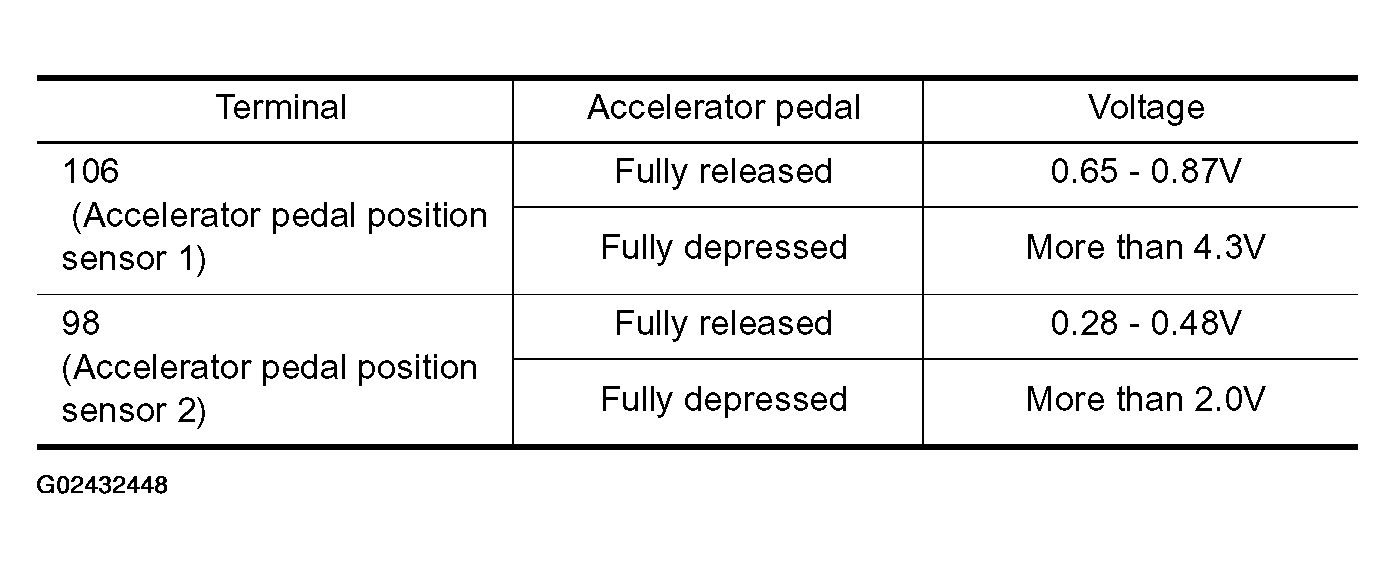

    Fig 1: ECM Terminals 98 & 106 Specification Chart - Accelerator Pedal Position Sensors
    G02432448Courtesy of NISSAN MOTOR CO., U.S.A.

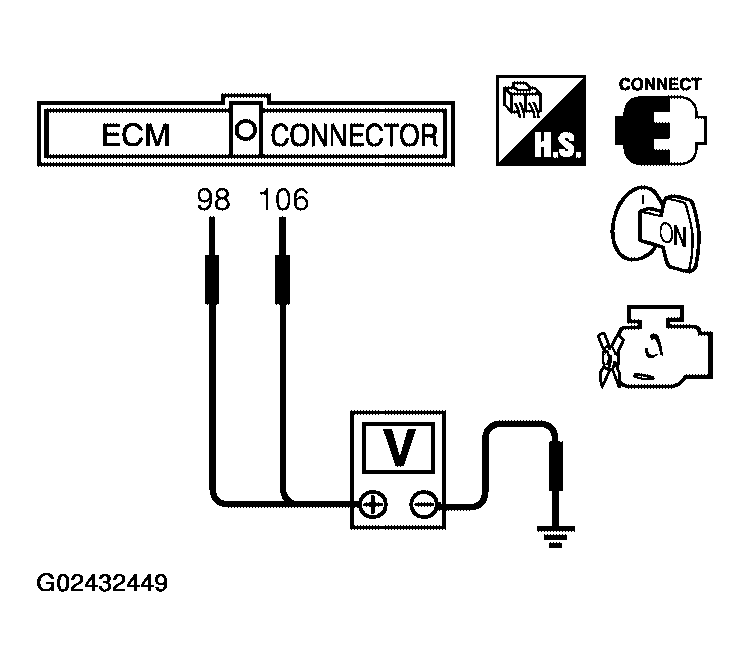

    4. Fig 2: Checking Voltage Between ECM Connector Terminals 106 (APP Sensor 1), 98 (APP Sensor 2) And Ground
    G02432449Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, replace accelerator pedal assembly and go to next step.
  5. Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
  6. Perform THROTTLE VALVE CLOSED POSITION LEARNING .
  7. Perform IDLE AIR VOLUME LEARNING .
