Diagnostic Procedure

1. Turn ignition switch ON.
2. Connect CONSULT-II and select "DATA MONITOR" mode.

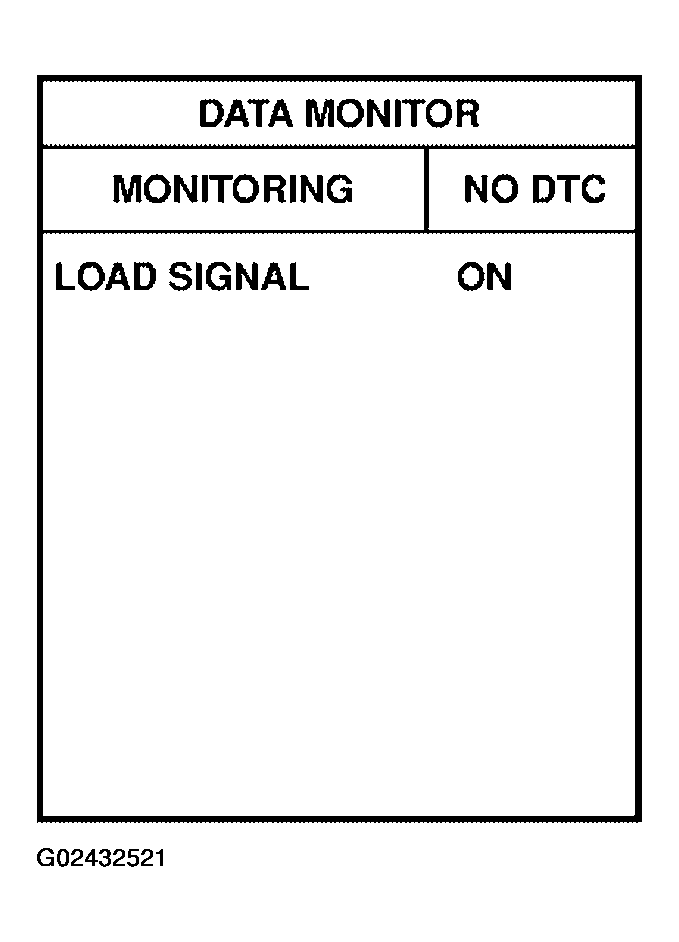

   Fig 1: CONSULT-II Display - Data Monitor Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Select "LOAD SIGNAL" and check indication under the conditions listed in REAR WINDOW DEFOGGER SWITCH CONDITION AND CONSULT-II INDICATION  table.
   REAR WINDOW DEFOGGER SWITCH CONDITION AND CONSULT-II INDICATION



   Condition	Indication
   Rear window defogger switch ON	ON
   Rear window defogger switch OFF	OFF

OK or NG

• OK: GO TO 2.
• NG: GO TO  3.

Check "LOAD SIGNAL" indication under the conditions listed in LIGHTING SWITCH CONDITION AND CONSULT-II INDICATION - LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II  table.

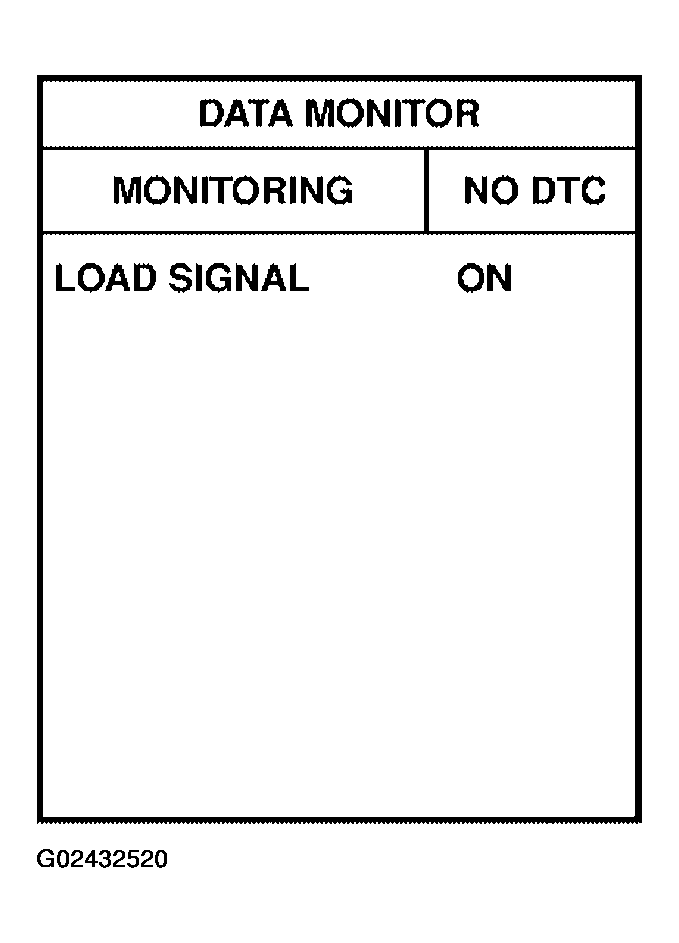

Fig 2: CONSULT-II Display - Data Monitor Mode, Load Signal

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: INSPECTION END
• NG: GO TO  4.

Refer to REAR WINDOW DEFOGGER .

• : INSPECTION END

Refer to HEADLAMP (FOR USA) or HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM - .

• : INSPECTION END
