CONSULT-II Function (ENGINE): Function

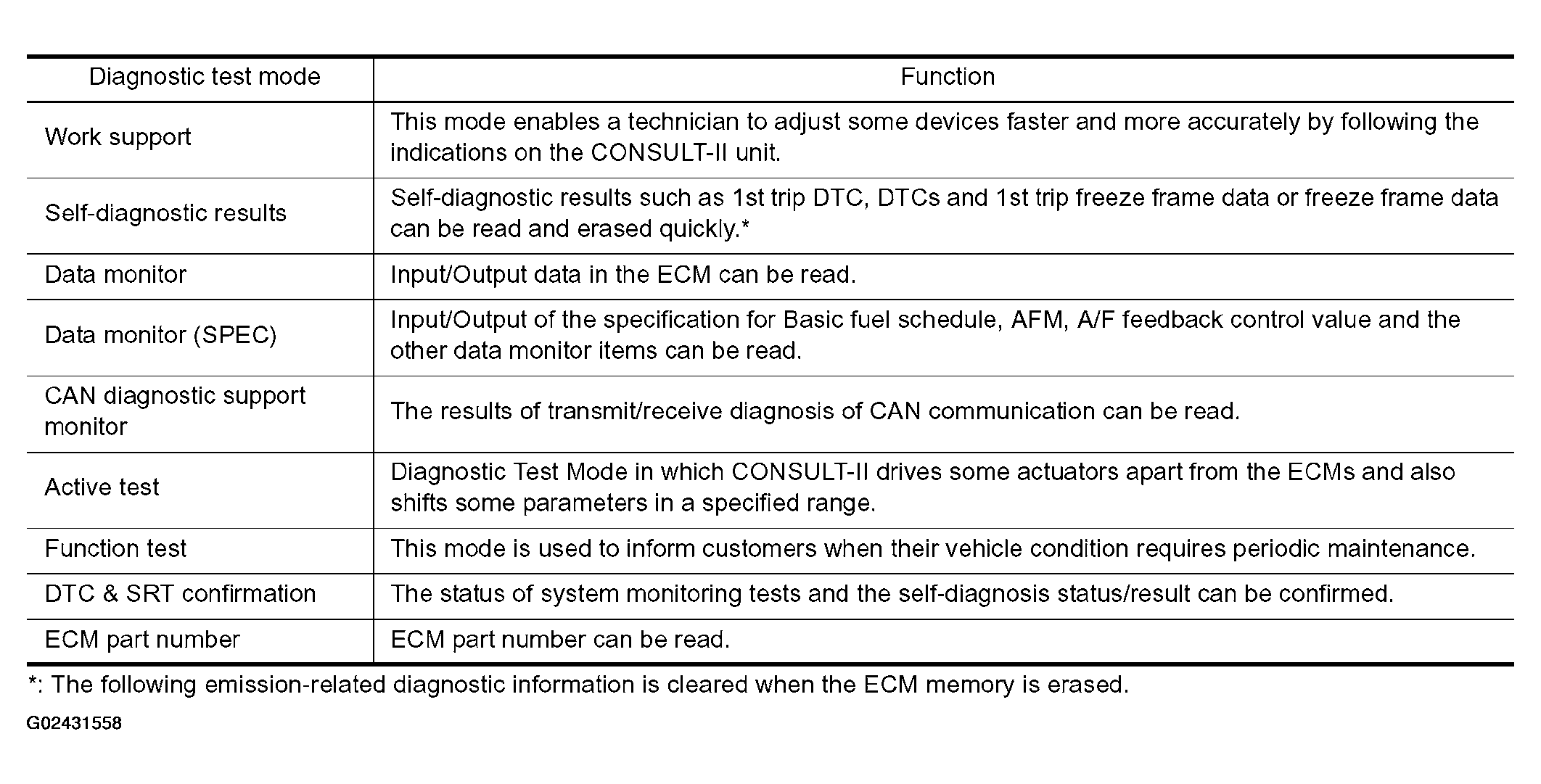

Fig 1: CONSULT-II Function Chart (Engine)

Courtesy of NISSAN MOTOR CO., U.S.A.

^* : The following emission-related diagnostic information is cleared when the ECM memory is erased.

• Diagnostic trouble codes
• 1st trip diagnostic trouble codes
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
• Test values
