Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector, which is located under LH dash panel near the hood opener handle.

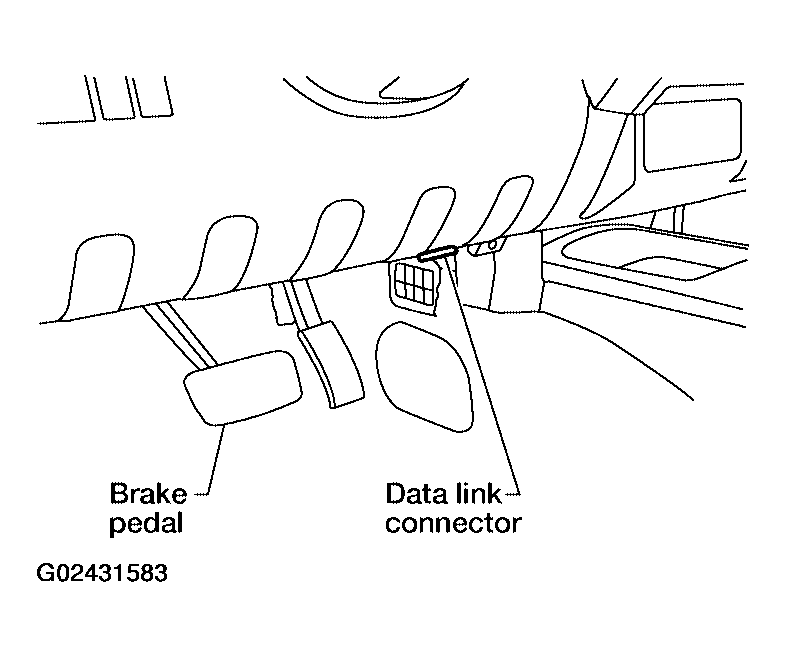

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(^* : Regarding GST screens in this test procedure, sample screens are shown in Fig 2.)

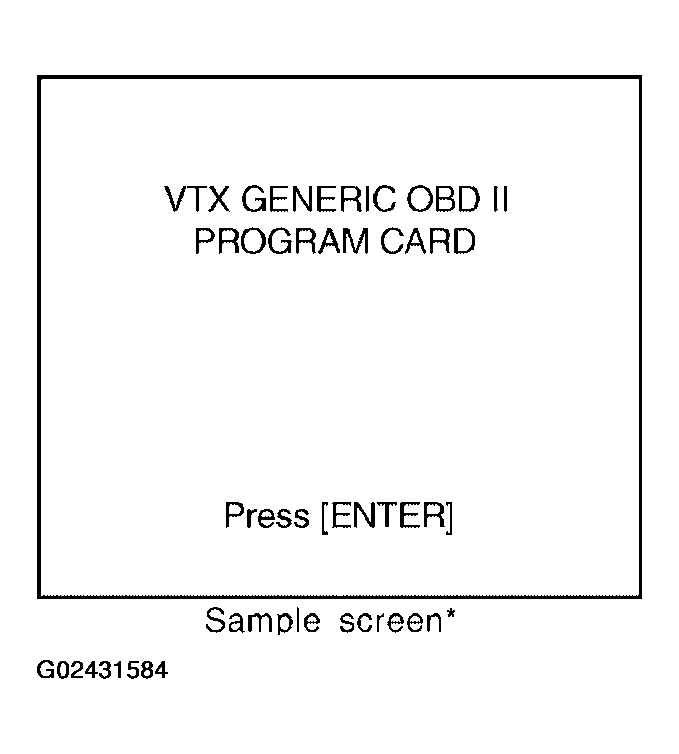

Fig 2: GST Display - VTX Generic OBD II Program Card
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic mode according to each service procedure.
For further information, see the scan tool operation manual.

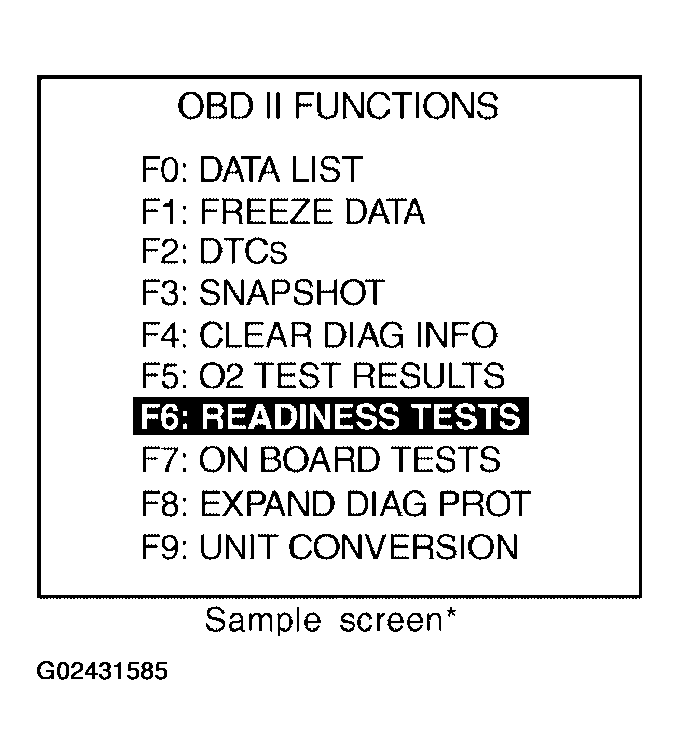

Fig 3: GST Display - OBD II Function
Courtesy of NISSAN MOTOR CO., U.S.A.
