Adjustable And Non-Adjustable Accelerator Pedal

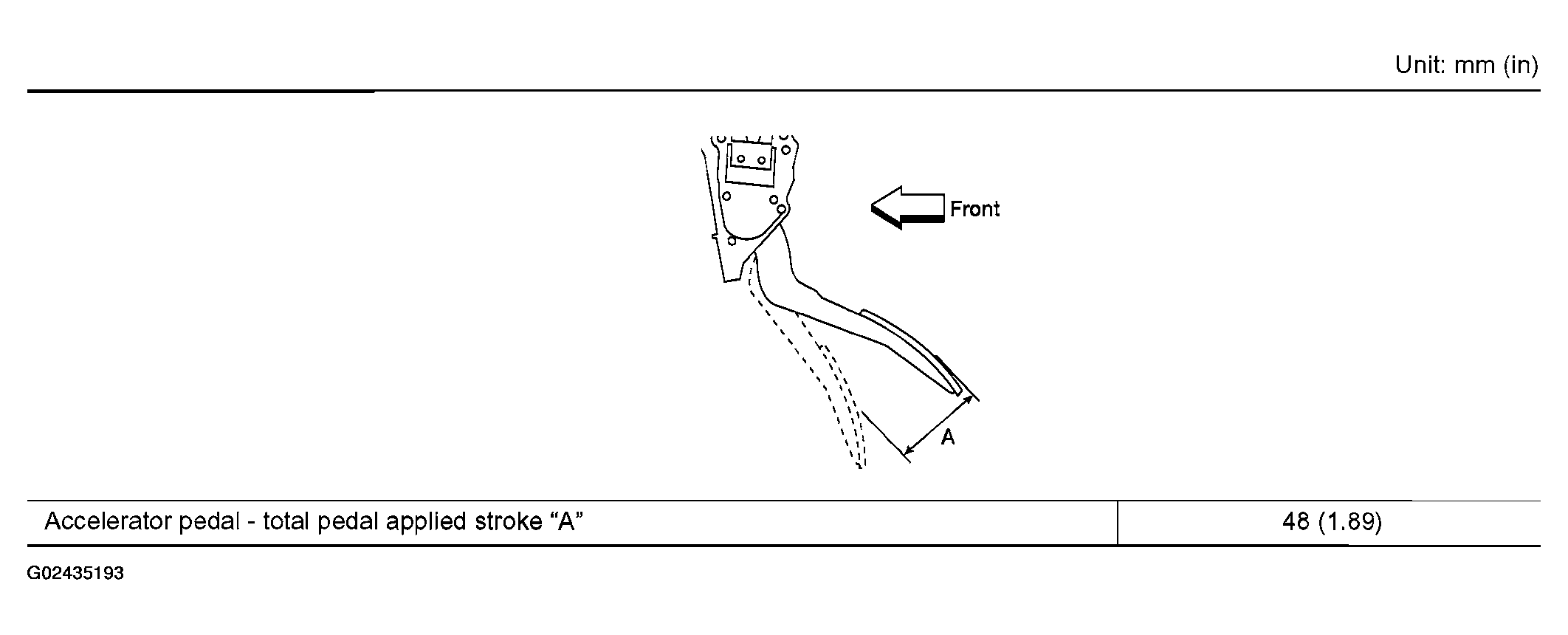

Fig 1: Accelerator Pedal Stork Length Specification Chart
G02435193Courtesy of NISSAN MOTOR CO., U.S.A.
