Can Communication Line Control

With CAN communication, by connecting each control unit using two communication lines (CAN L-line, CAN H-line), it is possible to transmit a maximum amount of information with minimum wiring. Each control unit can transmit and receive data, and reads necessary information only.

1. Fail-safe control
   • When CAN communication with other control units is impossible, IPDM E/R performs fail-safe control. After CAN communication returns to normal operation, it also returns to normal control.
   • Operation of control parts by IPDM E/R during fail-safe mode is as follows:

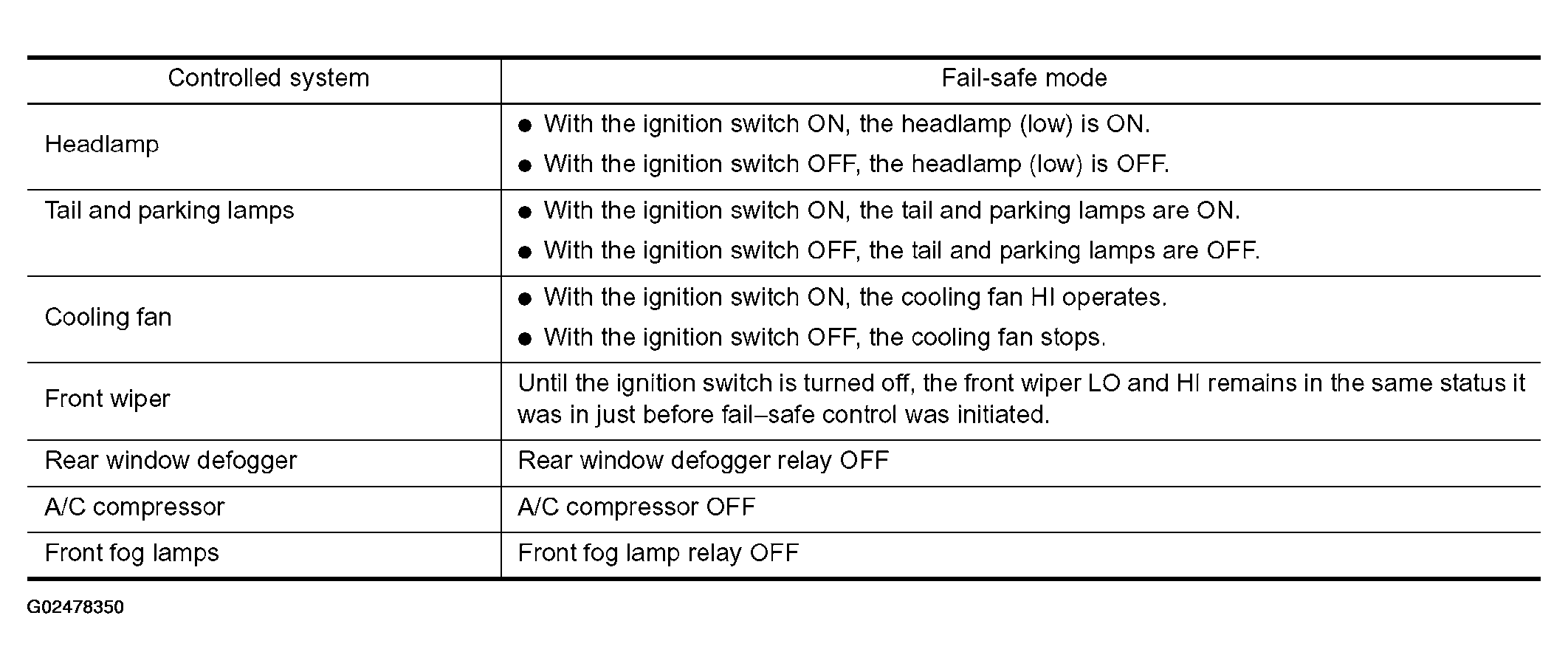

     Fig 1: Fail-Safe Mode Chart

     Courtesy of NISSAN MOTOR CO., U.S.A.
