Normal Control

The line pressure to throttle opening characteristics is set for suitable clutch operation.

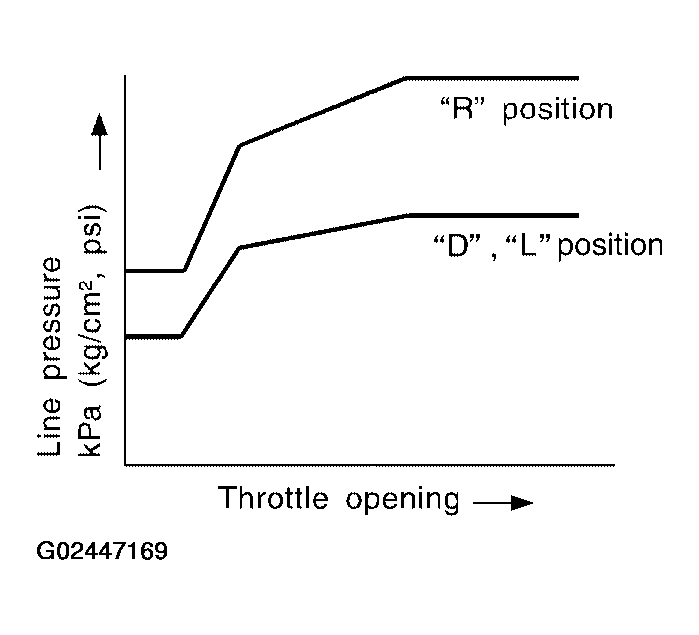

Fig 1: Throttle Opening Line Pressure - Normal Control
G02447169Courtesy of NISSAN MOTOR CO., U.S.A.
