Knock Sensor

Check resistance between knock sensor terminal 1 and ground.

NOTE: It is necessary to use an ohmmeter which can measure more than 10MΩ.

CAUTION: Do not use any knock sensors that have been dropped or physically damaged. Use only new ones.

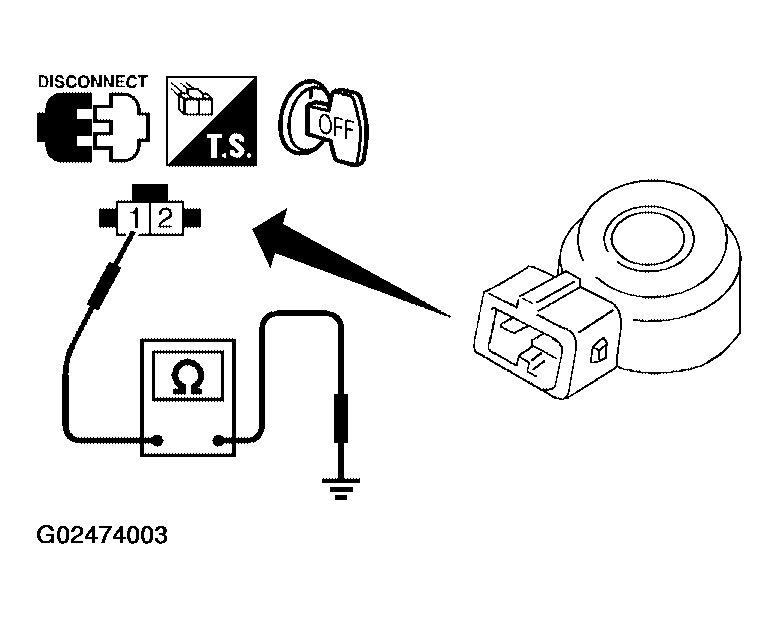

Fig 1: Checking Knock Sensor Resistance

Courtesy of NISSAN MOTOR CO., U.S.A.
