Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
  2. Touch item to be tested, and check operation.
  3. Touch "START".
  4. Touch "STOP" while testing to stop the operation.
    ACTIVE TEST - OPERATION PROCEDURE

    Test item CONSULT-II screen display Description
    Tail lamp relay output TAIL LAMP Allows tail lamp relay to operate by switching operation ON-OFF at your option.

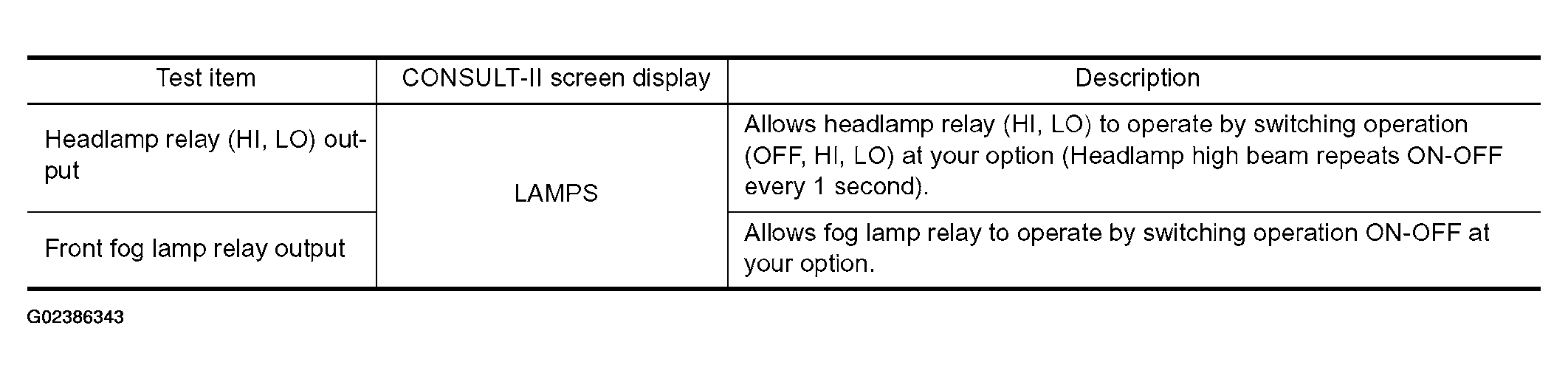

    Fig 1: Active Test Operation Procedure - Description Chart
    G02386343Courtesy of NISSAN MOTOR CO., U.S.A.
