Lighting Switch Inspection
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK LIGHTING SWITCH INPUT SIGNAL
With CONSULT-II

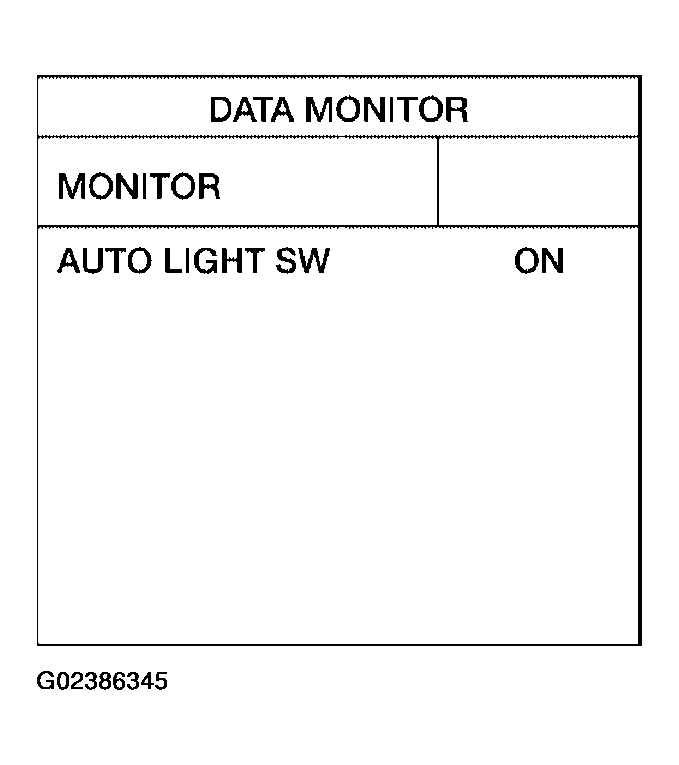

Select "BCM" on CONSULT-II. With "HEAD LAMP" data monitor, make sure "AUTO LIGHT SW" turns ON-OFF linked with operation of lighting switch.
- When lighting switch is in AUTO position: AUTO LIGHT SW ON
Without CONSULT-II
Refer to "COMBINATION SWITCH INSPECTION ".
OK or NG
- OK: Inspection End.
- NG: Check lighting switch. Refer to "COMBINATION SWITCH INSPECTION ".
