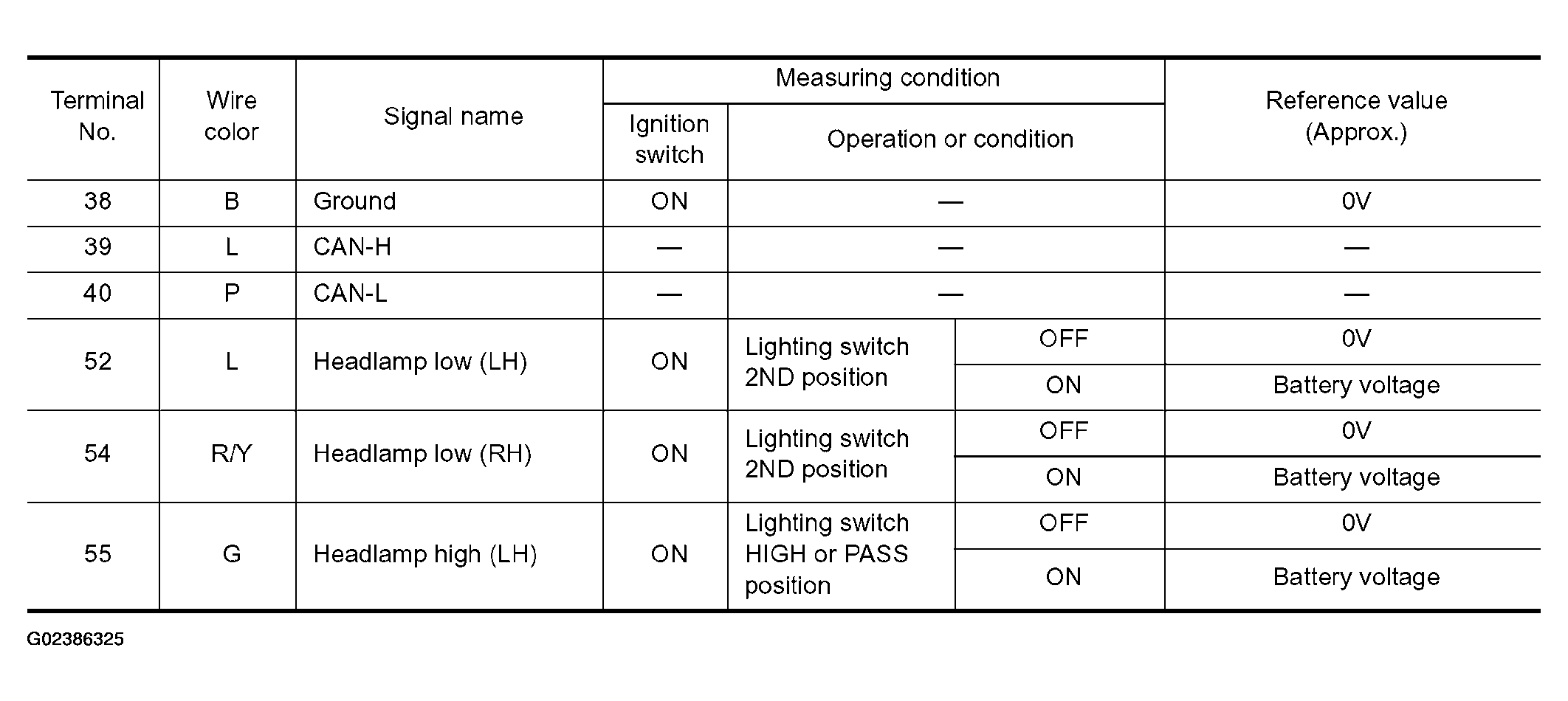

Fig 1: IPDM E/R Terminals And Reference Values Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

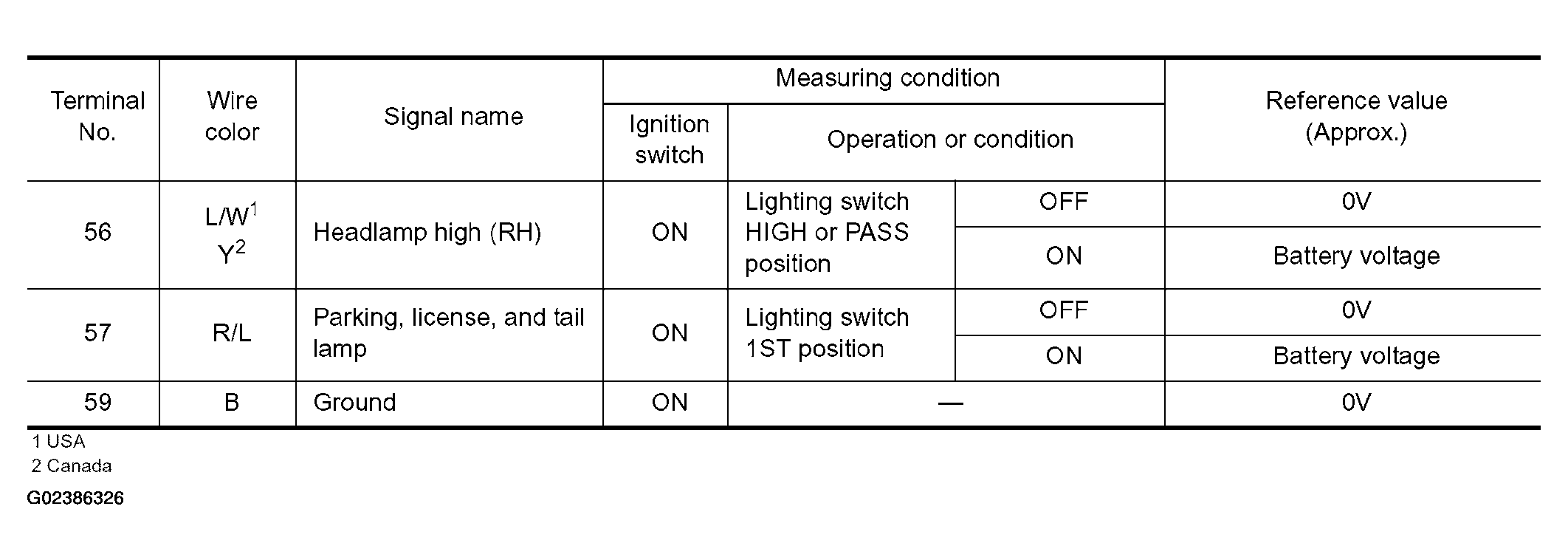

Fig 2: IPDM E/R Terminals And Reference Values Chart (2 Of 2)
