Reference Value From Consult-II

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short circuited.

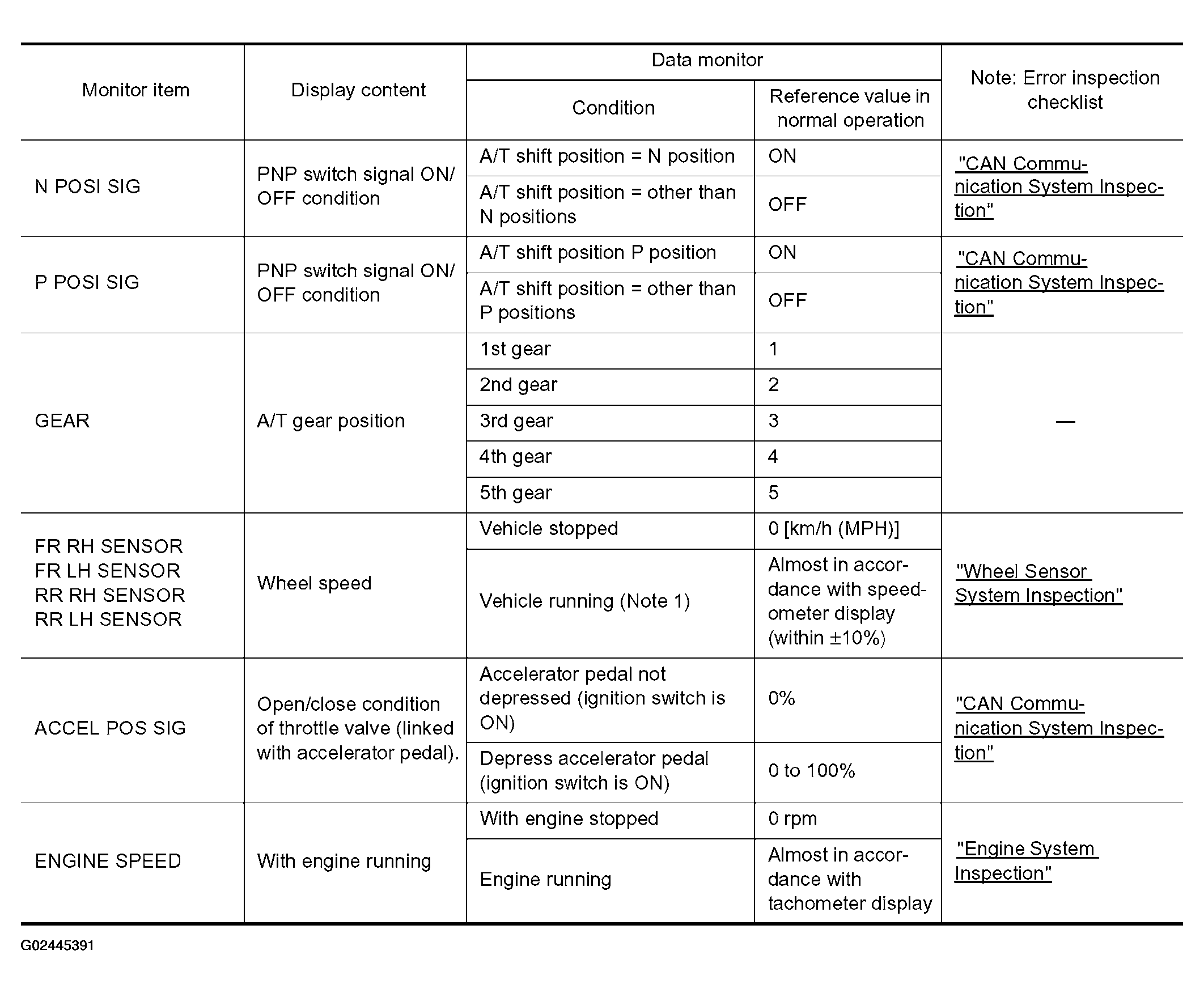

Fig 1: Identifying Control Unit Input/Output Signal Standard Reference Value From Consult-II (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

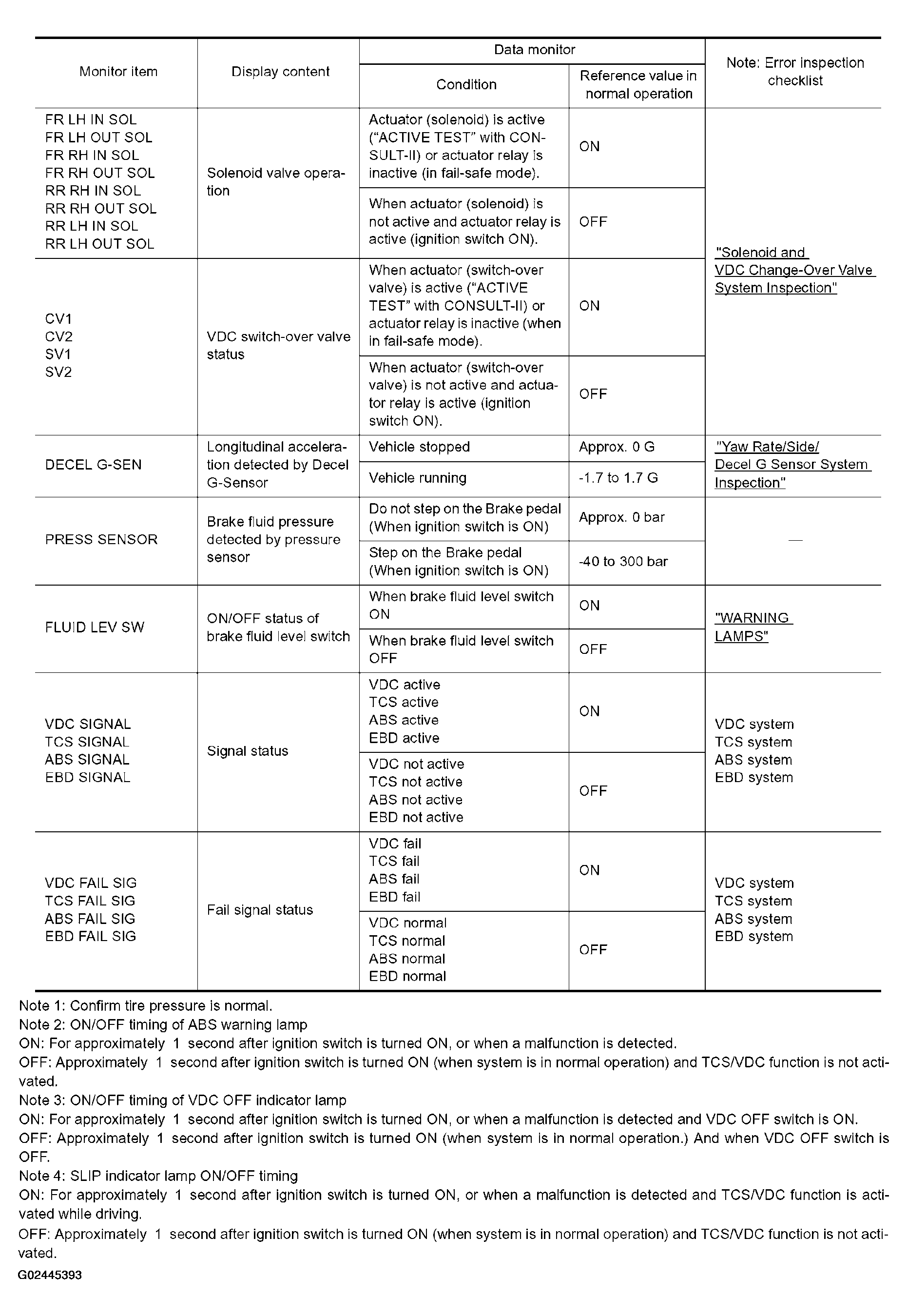

Fig 2: Identifying Control Unit Input/Output Signal Standard Reference Value From Consult-II (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

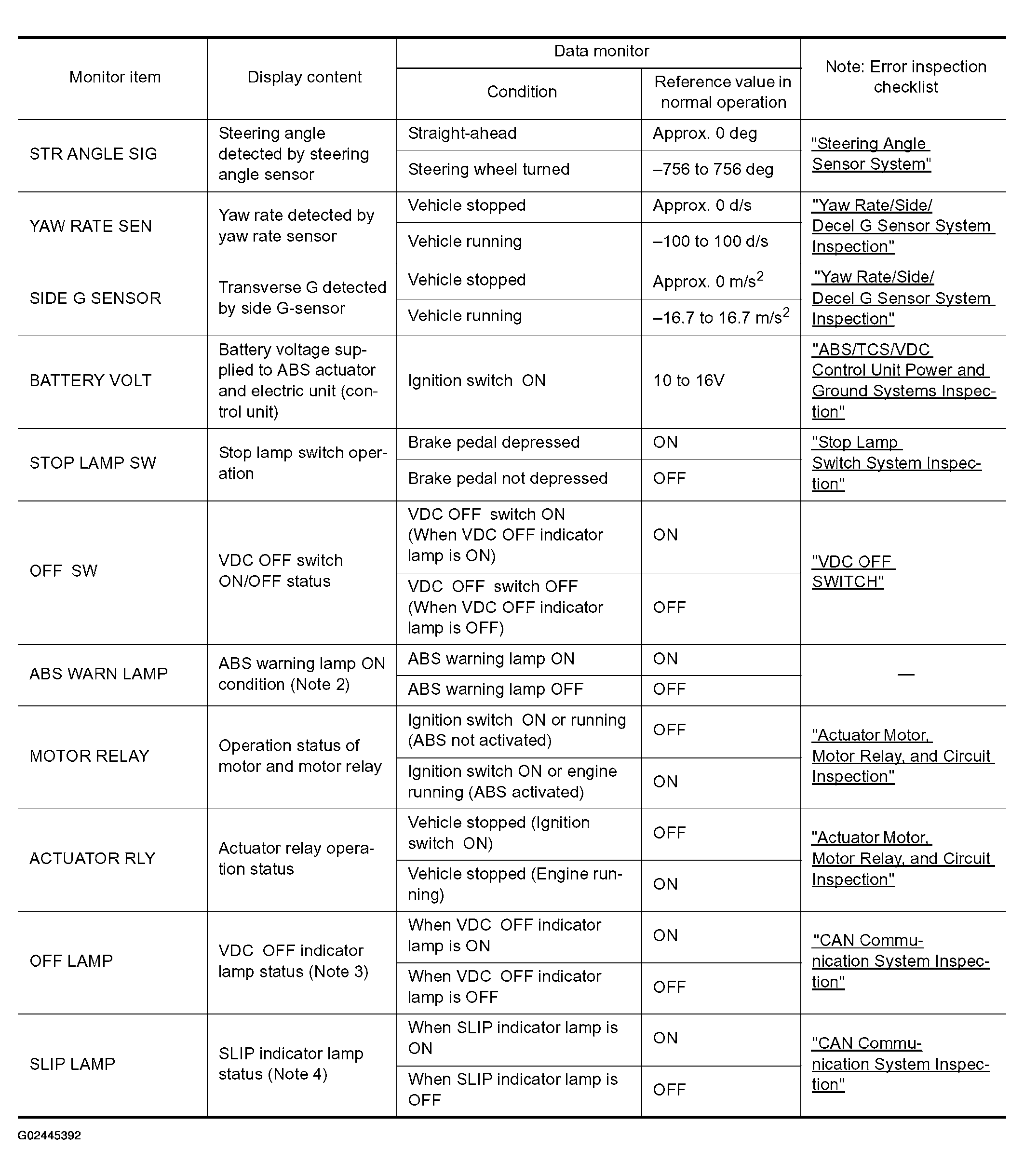

Fig 3: Identifying Control Unit Input/Output Signal Standard Reference Value From Consult-II (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Flashing: TCS/VDC function is active during driving
