Write Configuration Procedure

WARNING: This page is about a different car, the 2005 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

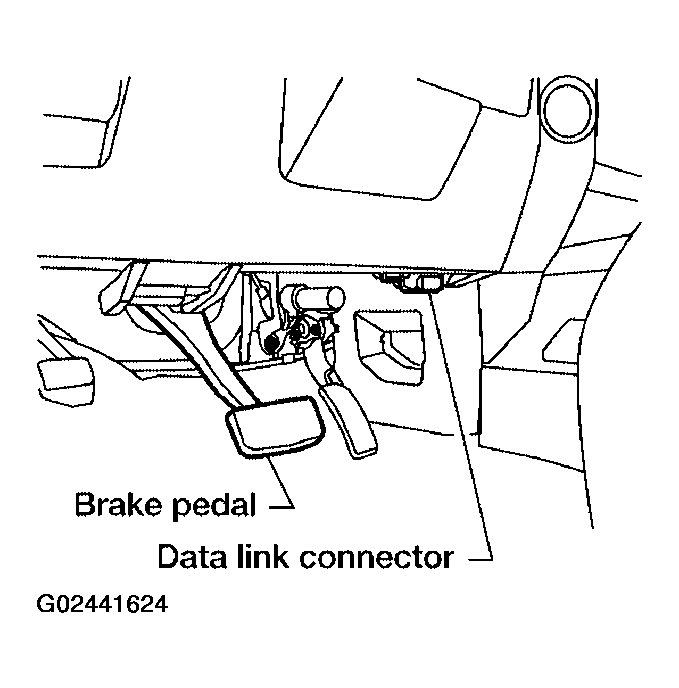

    Fig 1: Identifying Data Link Connector And Brake Pedal
    G02441624Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

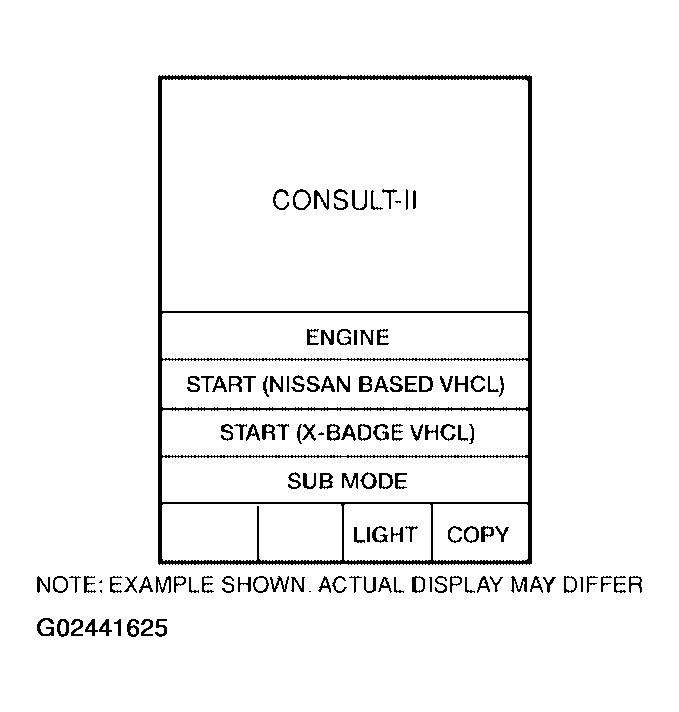

    Fig 2: Locating "START (NISSAN BASED VHCL)"
    G02441625Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to LAN SYSTEM to check data link connector (DLC) circuit .

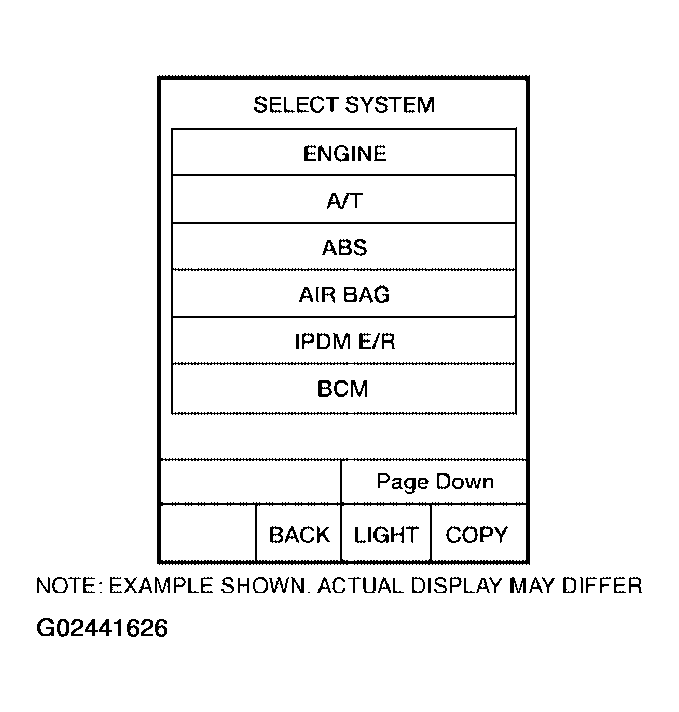

    Fig 3: Locating "BCM" On "SELECT SYSTEM" Screen
    G02441626Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.

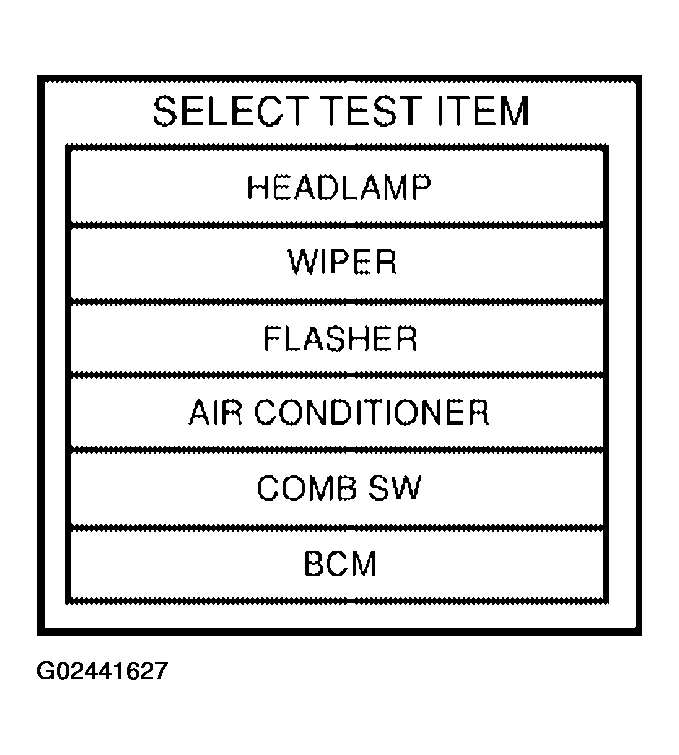

    Fig 4: Locating "BCM" On "SELECT TEST ITEM" Screen
    G02441627Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

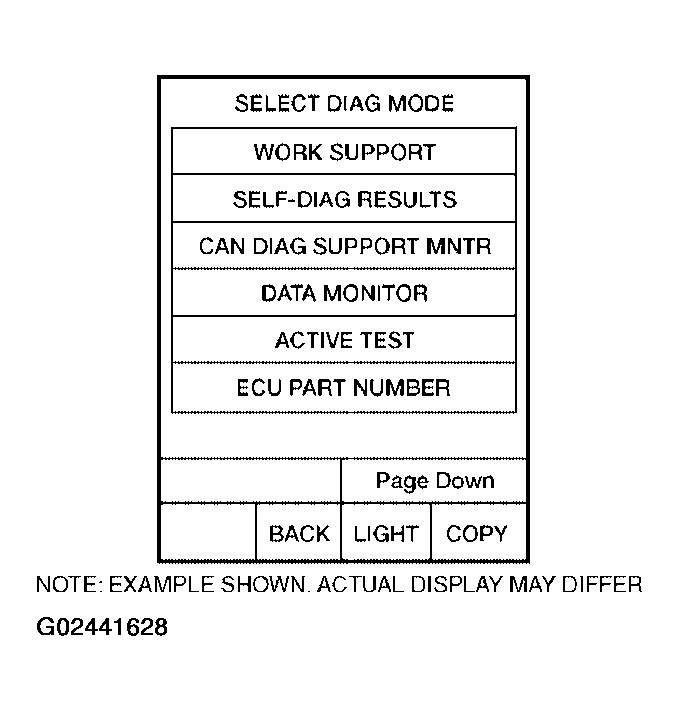

    Fig 5: Locating "CONFIGURATION" On "SELECT DIAG MODE" Screen
    G02441628Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "TA60" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

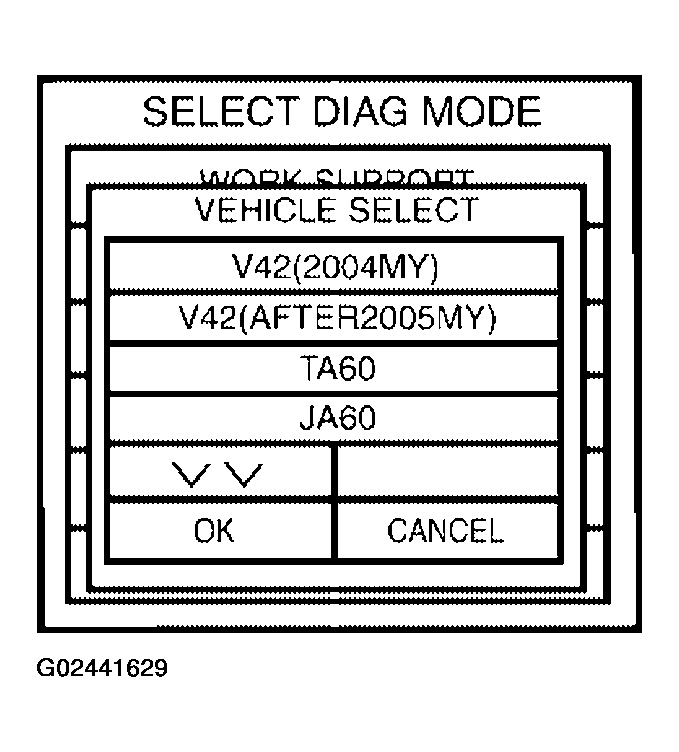

    Fig 6: Selecting Vehicle "TA60" On "VEHICLE SELECT" Screen
    G02441629Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WRITE CONFIGURATION" on "SELECT CONFIG ITEM" screen.

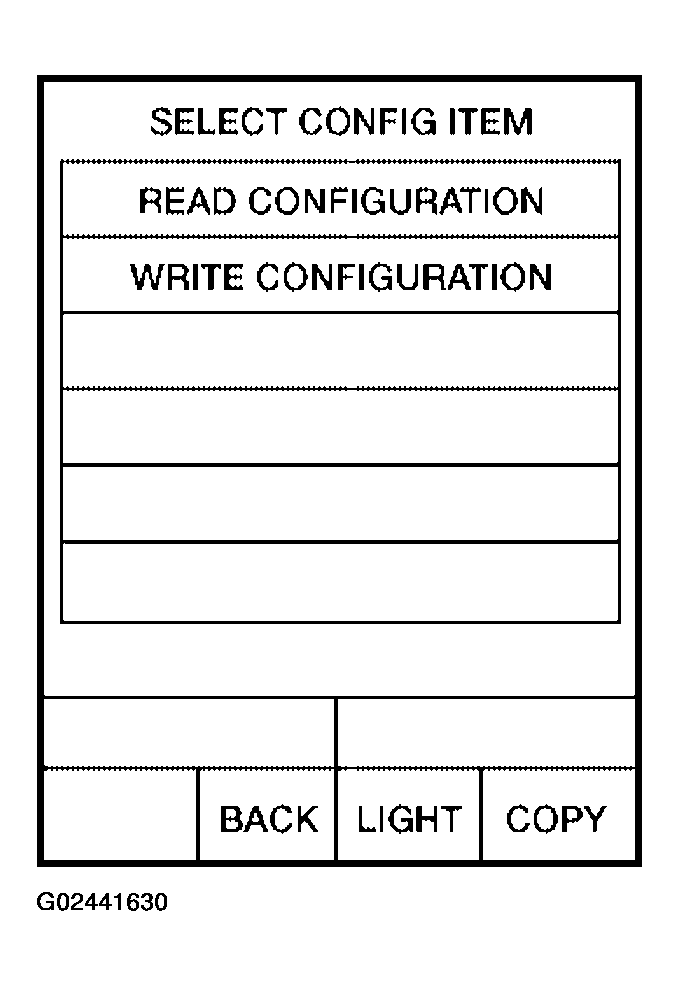

    Fig 7: Locating "WRITE CONFIGURATION" On "SELECT CONFIG ITEM" Screen
    G02441630Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch YES".

    For canceling, touch "NO".

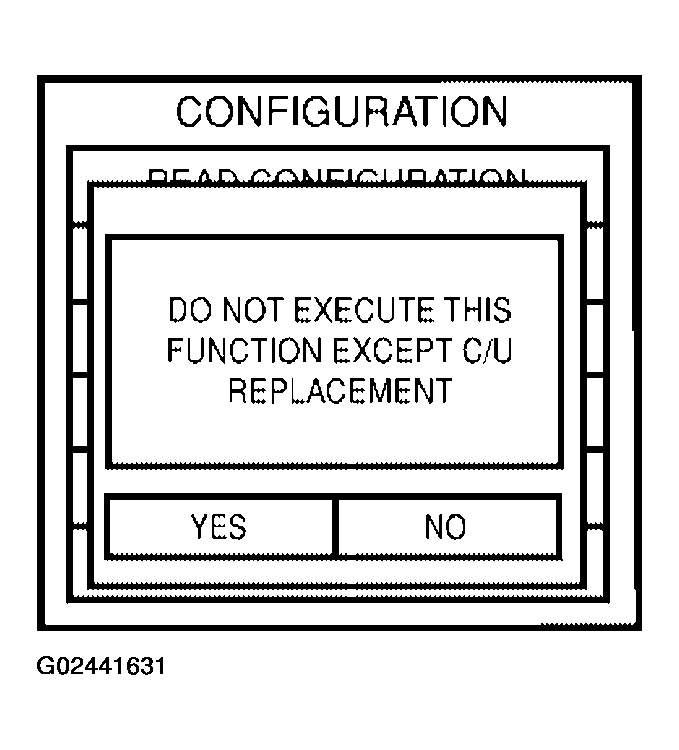

    Fig 8: "WRITE CONFIGURATION" Conformation Display
    G02441631Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Set by touching selection on "WRITE CONFIGURATION" screen based on the following ITEM LIST.
    ITEM LIST

    ITEM SET VAL
    FR FOG LAMP WITH --> WITHOUT
    DTRL WITH --> WITHOUT
    DISPLAY STYLE MODE2
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of brand- new BCM is same as the desirable configuration.
    If not, configuration which is set automatically by selecting vehicle model cannot be memorized.
  11. Touch "OK" on "WRITE CONFIGURATION" screen.

    If "CANCEL" is touched, it will return to previous screen.

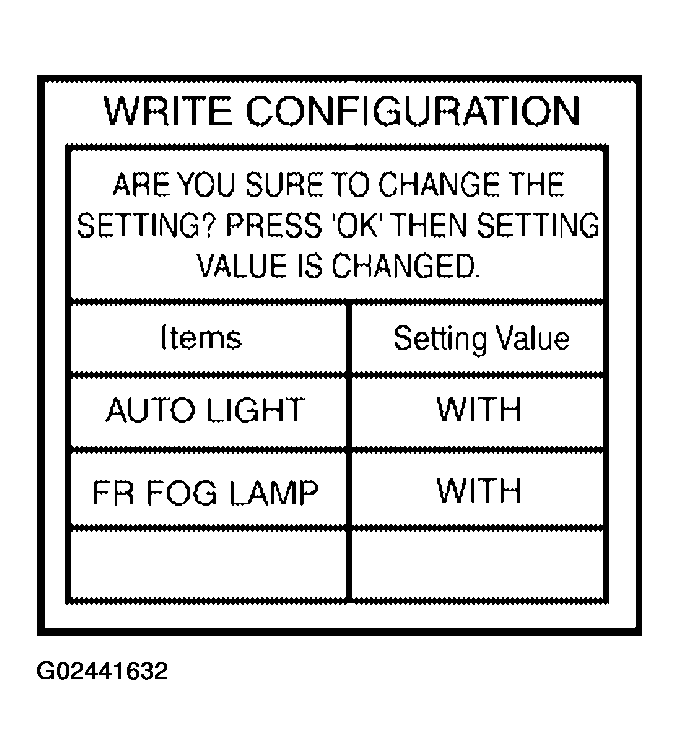

    Fig 9: CONSULT-II Display - Write Configuration
    G02441632Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Wait until the next screen during setting.

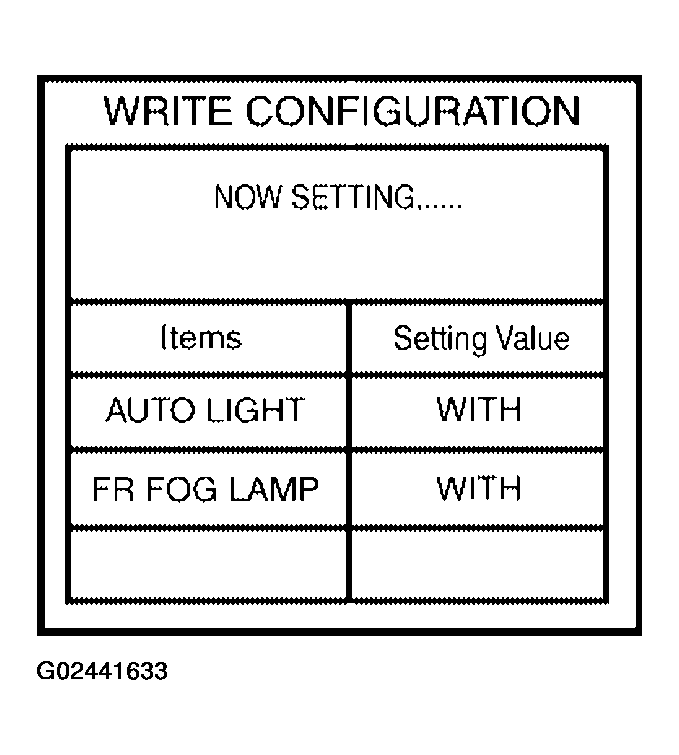

    Fig 10: Setting Display
    G02441633Courtesy of NISSAN MOTOR CO., U.S.A.
  13. WRITE CONFIGURATION results are printed out automatically. Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step  9.

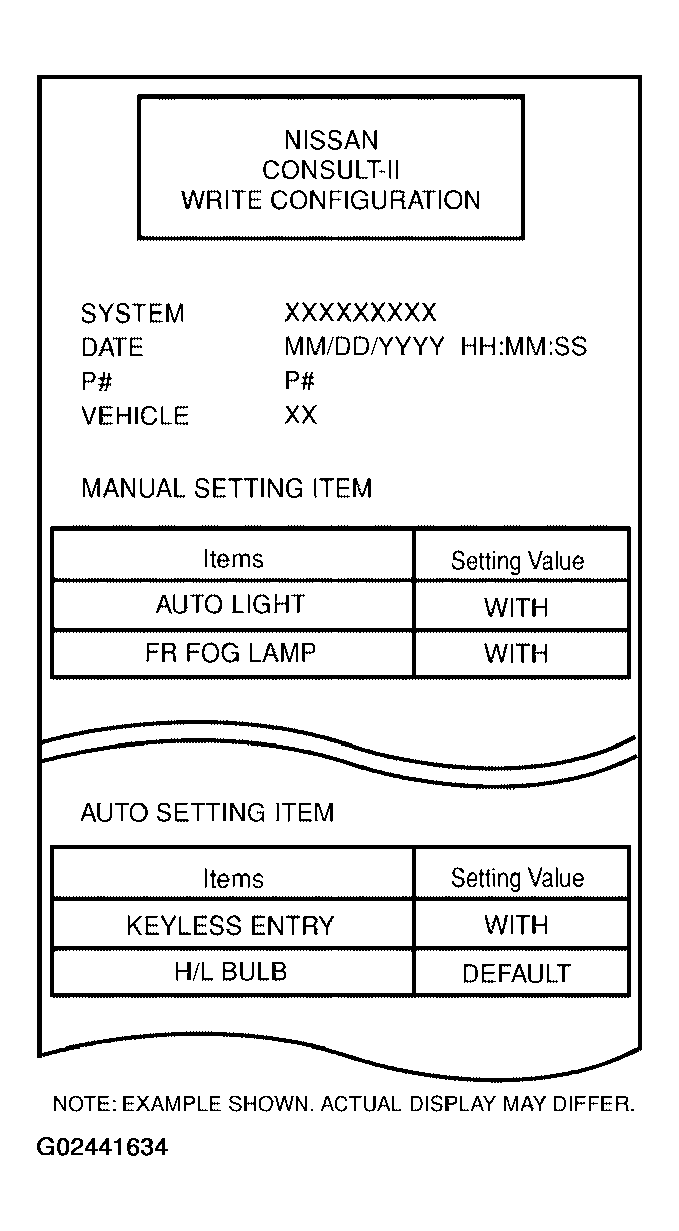

    Fig 11: Identifying Write Configuration Print Sheet
    G02441634Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "OK" on "WRITE CONFIGURATION" screen.

    WRITE CONFIGURATION is completed.

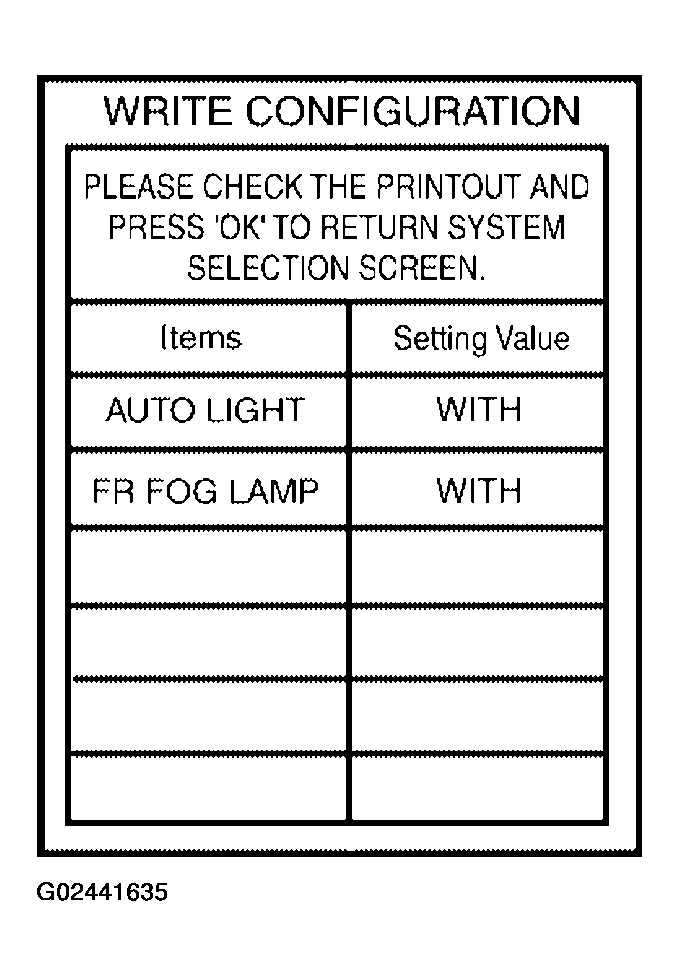

    Fig 12: CONSULT-II Display - WRITE CONFIGURATION
    G02441635Courtesy of NISSAN MOTOR CO., U.S.A.
