Bulb Replacement

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front turn/fog lamp assembly. Refer to "REMOVAL AND INSTALLATION ".
Turn the bulb cover counterclockwise to remove it.
Unlatch retaining spring.
Remove bulb and disconnect the connector.
CAUTION:
- Do not touch the glass of bulb directly by hand. Keep grease and other oily substances away from it. Do not touch bulb by hand while it is lit or right after being turned off. Burning may result.
- Do not leave bulb out of fog lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of fog lamp. When replacing bulb, be sure to replace it with new one.

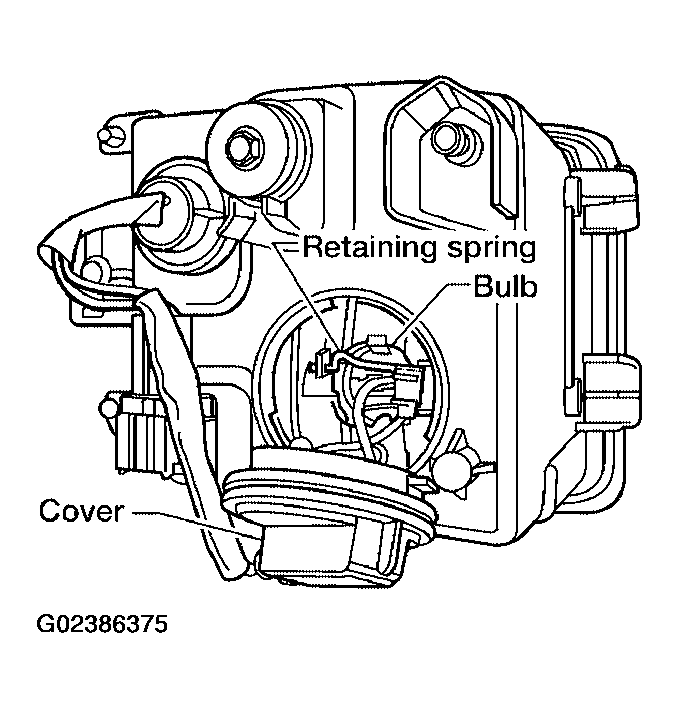

Fig 1: Identifying Bulb And Retaining Spring
Courtesy of NISSAN MOTOR CO., U.S.A.

Installation is in the reverse order of removal.
