Section 5 (Engine Control System - Introduction (Qr25DE))
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Work Support Mode
>>
Work Item
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Work Item
WARNING:
This page is about a different variant/trim than selected.

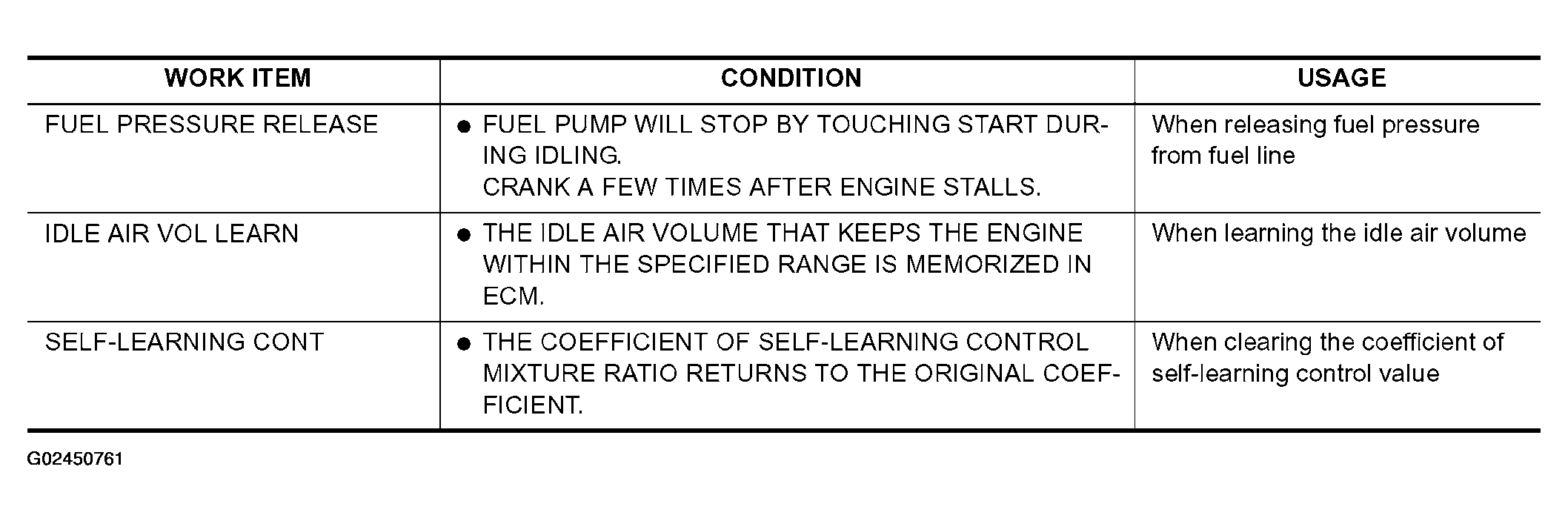

Fig 1: Work Support Mode - Work Item Condition Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

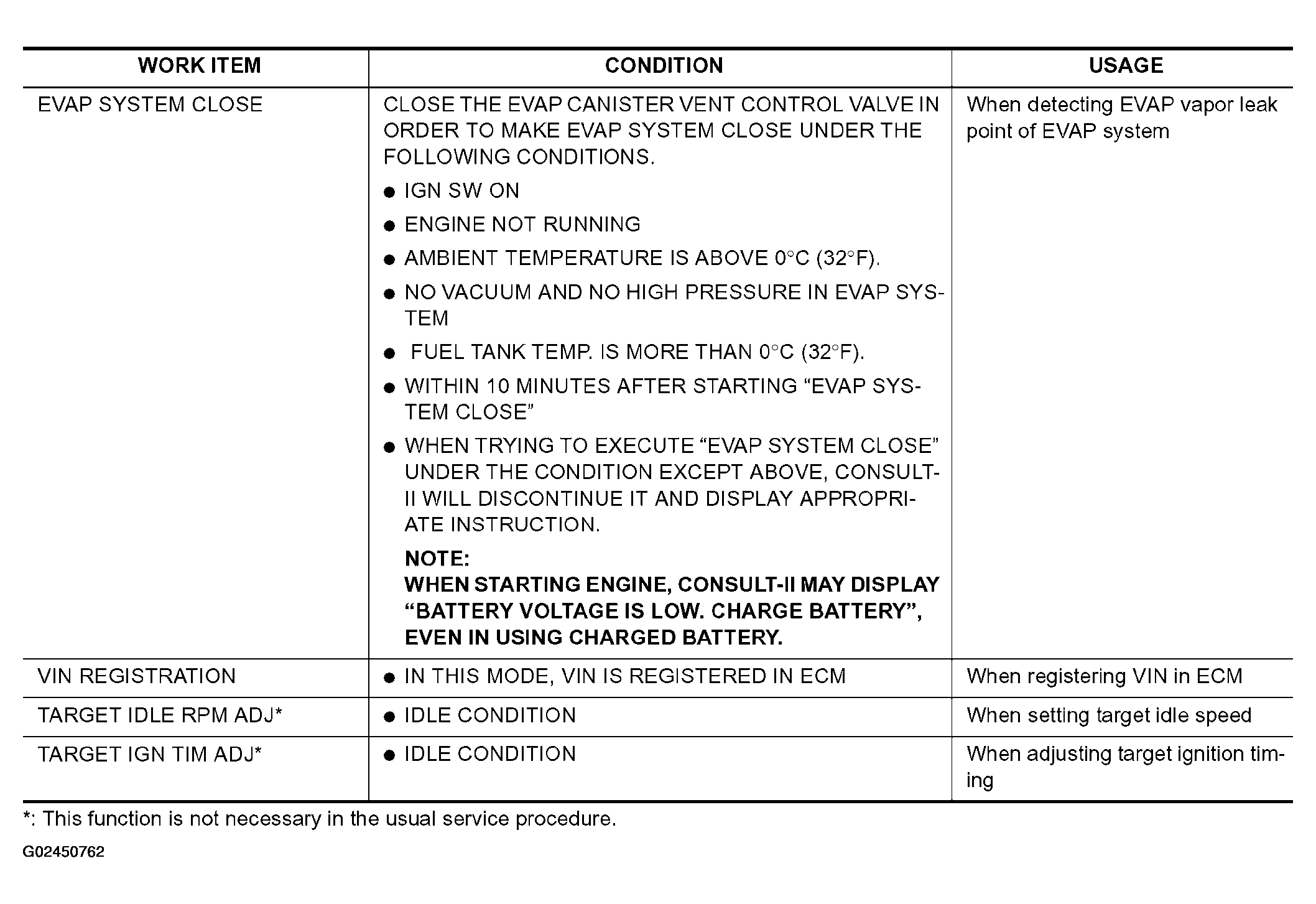

Fig 2: Work Support Mode - Work Item Condition Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
