Component Description

WARNING: This page is about a different variant/trim than selected.

The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

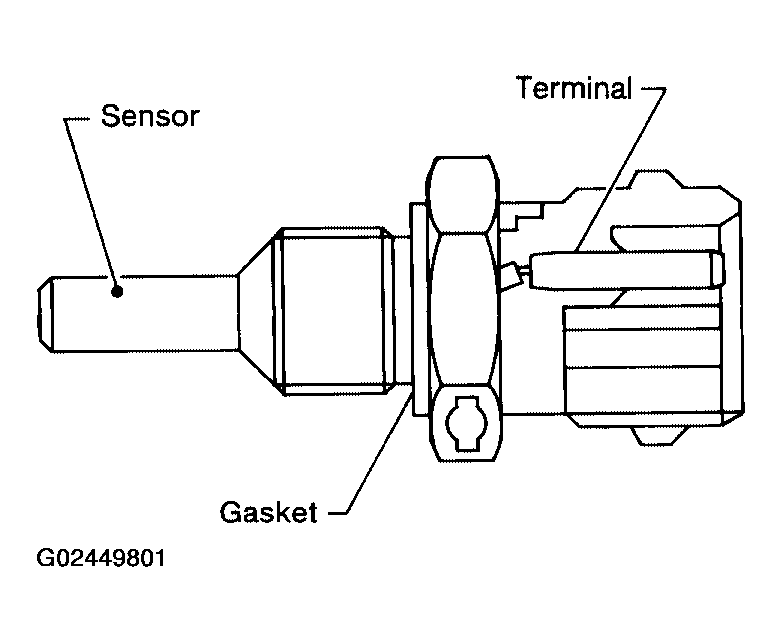

Fig 1: Identifying ECT Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Reference data

Fig 2: ECT Sensor Temperature Versus Resistance Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

ECT SENSOR RESISTANCE/VOLTAGE SPECIFICATIONS

Engine coolant temperature °C (°F)

Voltage⁽¹⁾V

Resistance kΩ

20 (68)

3.5

2.1 - 2.9

50 (122)

2.2

0.68 - 1.00

90 (194)

0.9

0.236 - 0.260

⁽¹⁾	These data are reference values and are measured between ECM terminal 73 (Engine coolant temperature sensor) and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may damage the ECM's transistor. Use ground other than ECM, such as body ground.
