Camshaft Position Sensor (Phase)

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the fixing bolt of the sensor.
  2. Disconnect camshaft position sensor (PHASE) harness connector.
  3. Remove the sensor.
  4. Visually check the sensor for chipping.

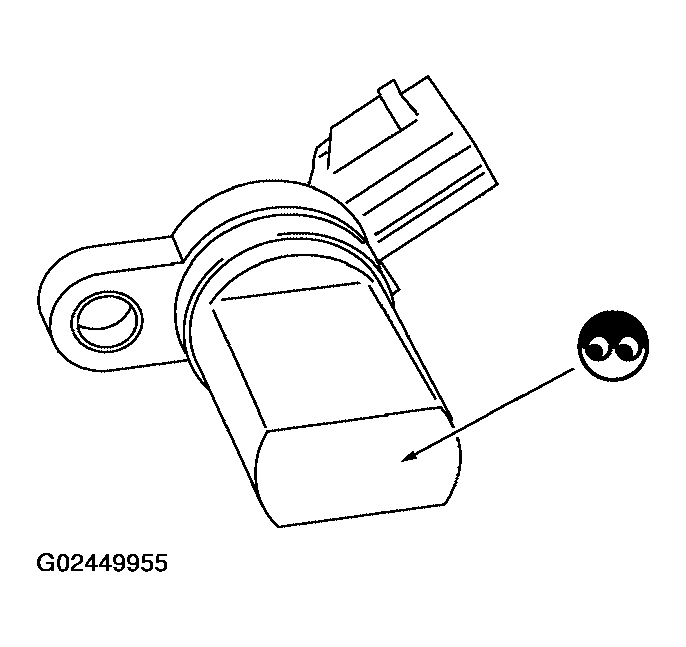

    Fig 1: Identifying Camshaft Position Sensor
    G02449955Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Check resistance as shown in Fig 2.

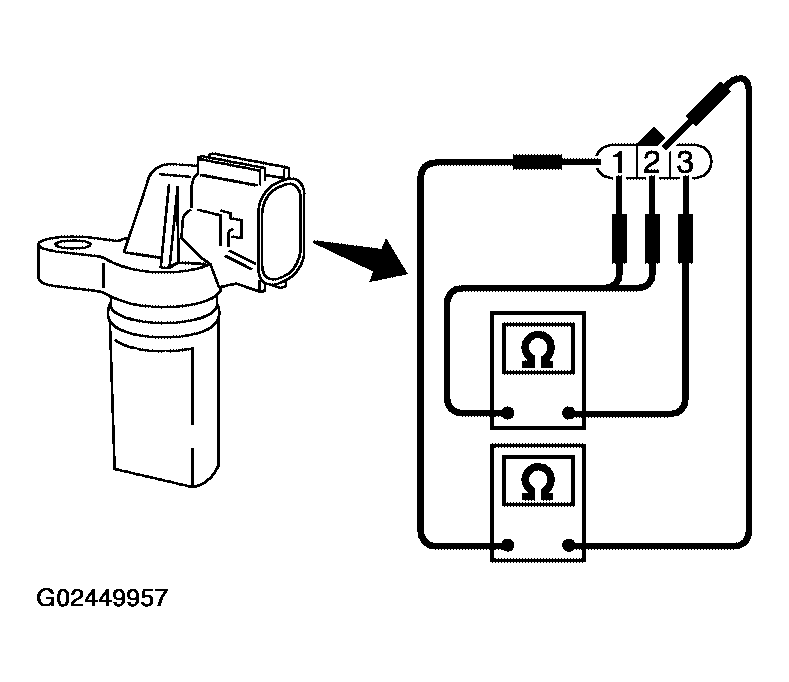

    Fig 2: Checking Resistance Of Camshaft Position Sensor
    G02449957Courtesy of NISSAN MOTOR CO., U.S.A.

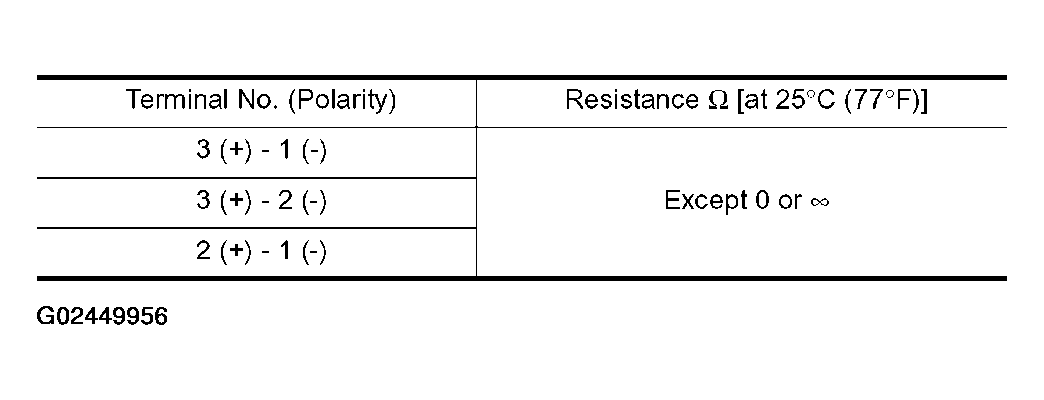

    Fig 3: Camshaft Position Sensor Resistance Specifications
    G02449956Courtesy of NISSAN MOTOR CO., U.S.A.
