PROCEDURE FOR Diagnostic Trouble Codes P1124

WARNING: This page is about a different variant/trim than selected.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 8V.

With CONSULT-II

Turn ignition switch ON and wait at least 1 second.
Select "DATA MONITOR" mode with CONSULT-II.

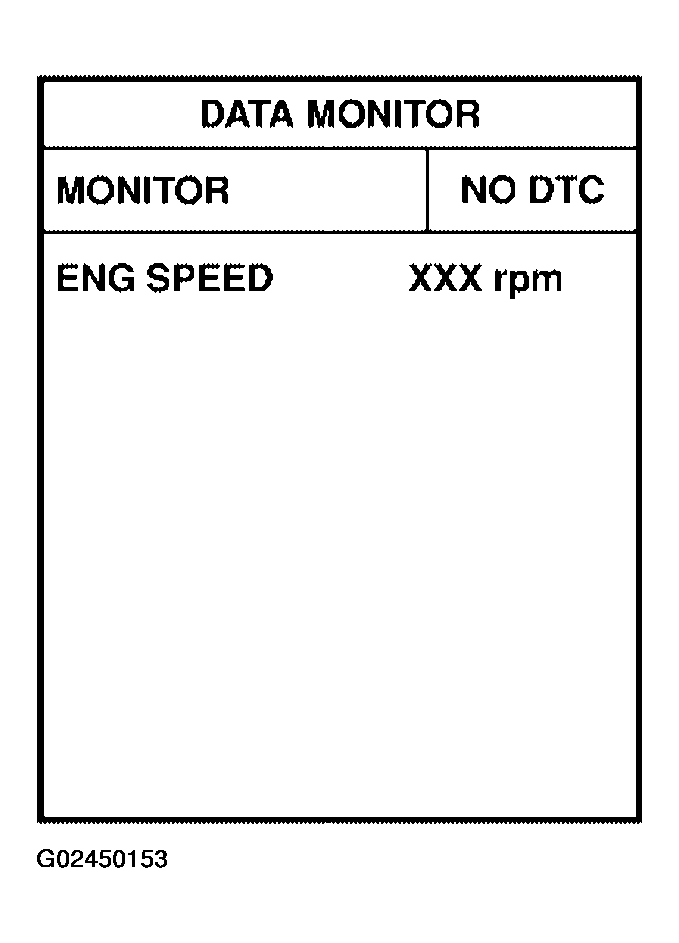

Fig 1: CONSULT-II Display - DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

With GST

Follow the procedure "With CONSULT-II" above.
