PROCEDURE FOR Diagnostic Trouble Codes P1126

WARNING: This page is about a different variant/trim than selected.

With CONSULT-II

Turn ignition switch ON and wait at least 2 seconds.
Select "DATA MONITOR" mode with CONSULT-II.

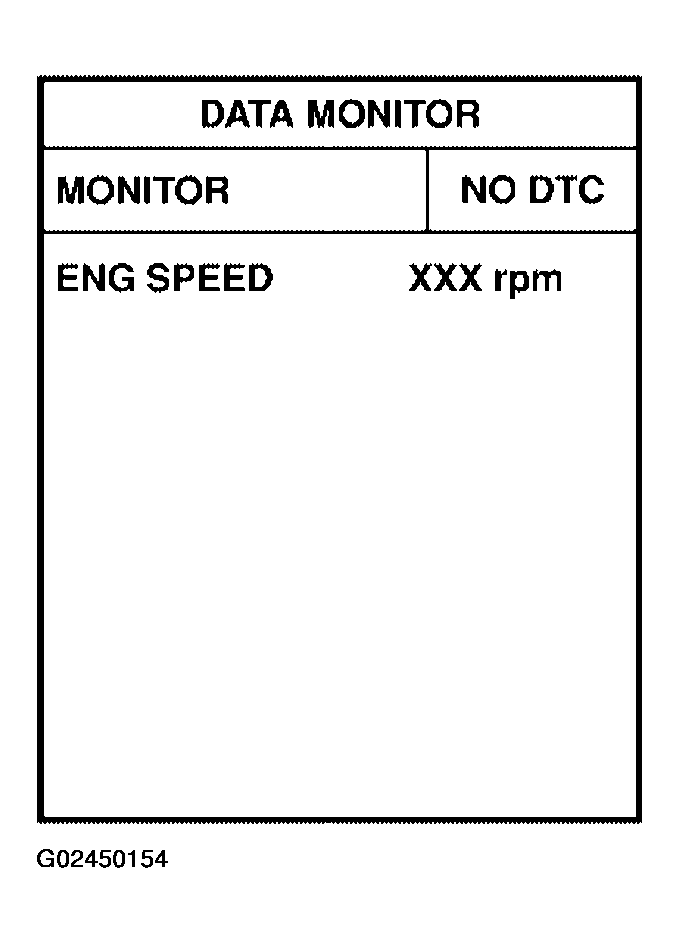

Fig 1: CONSULT-II Display - DATA MONITOR Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and let it idle for 5 seconds.
If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

With GST

Follow the procedure "With CONSULT-II" above.
