Diagnostic Trouble Codes Confirmation Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

WITH CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.

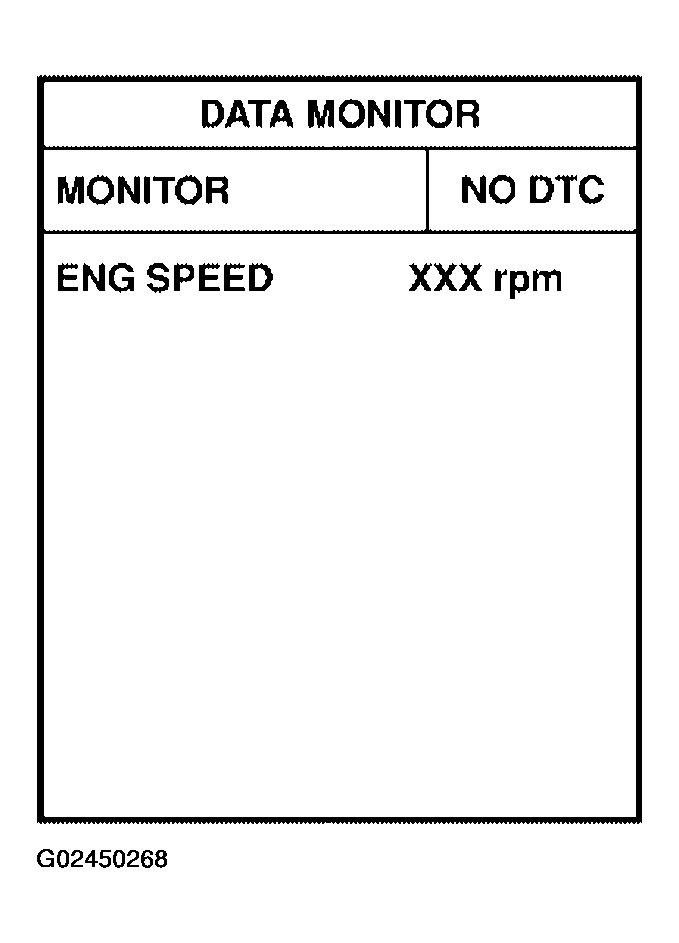

Fig 1: CONSULT-II Display - DATA MONITOR Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON.
If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

WITH GST

Follow the procedure "WITH CONSULT-II" above.
